Home >> Lexus >> 1992 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Source Diagrams

Power Source Diagrams

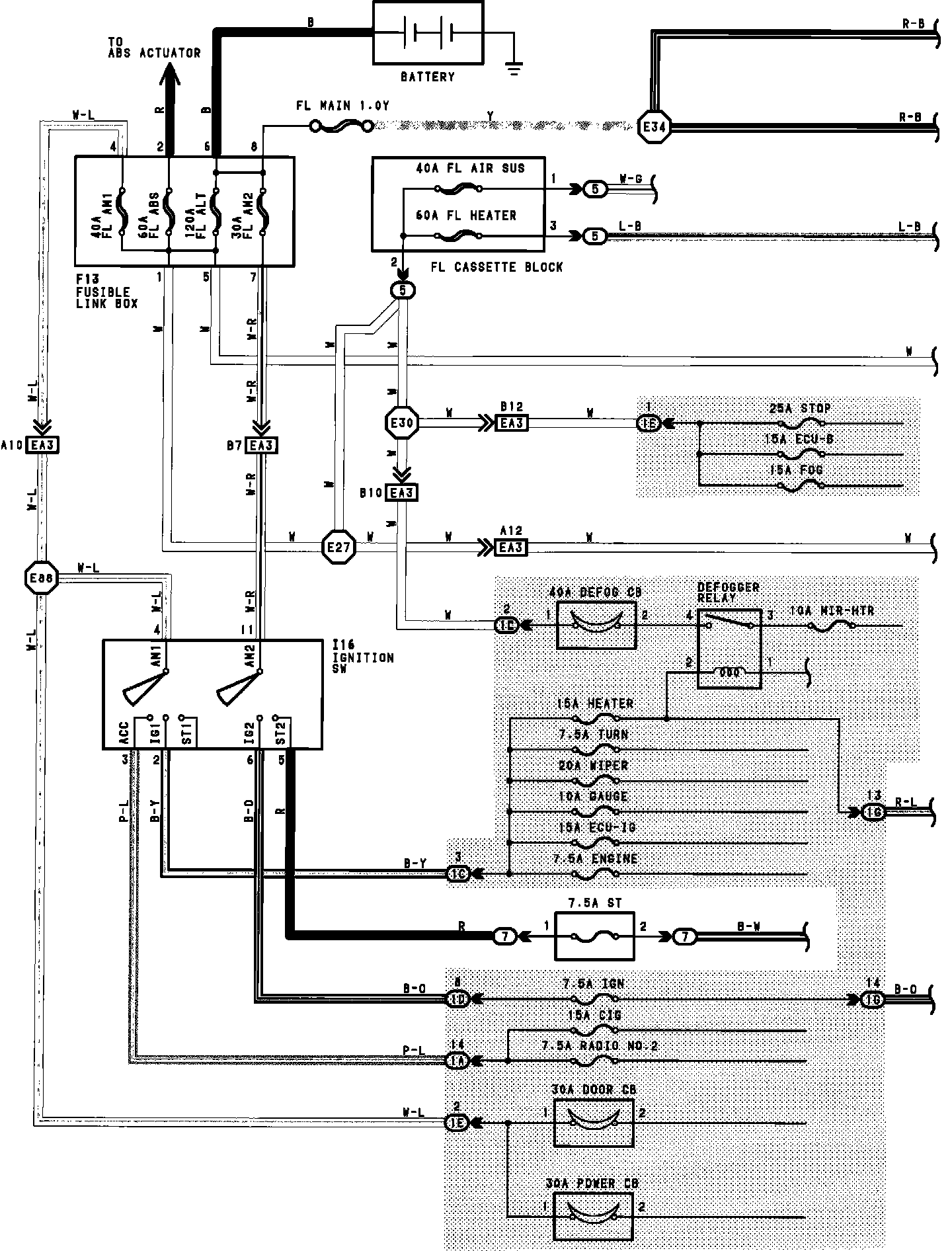

Schematic View Power Flow (1 Of 2):

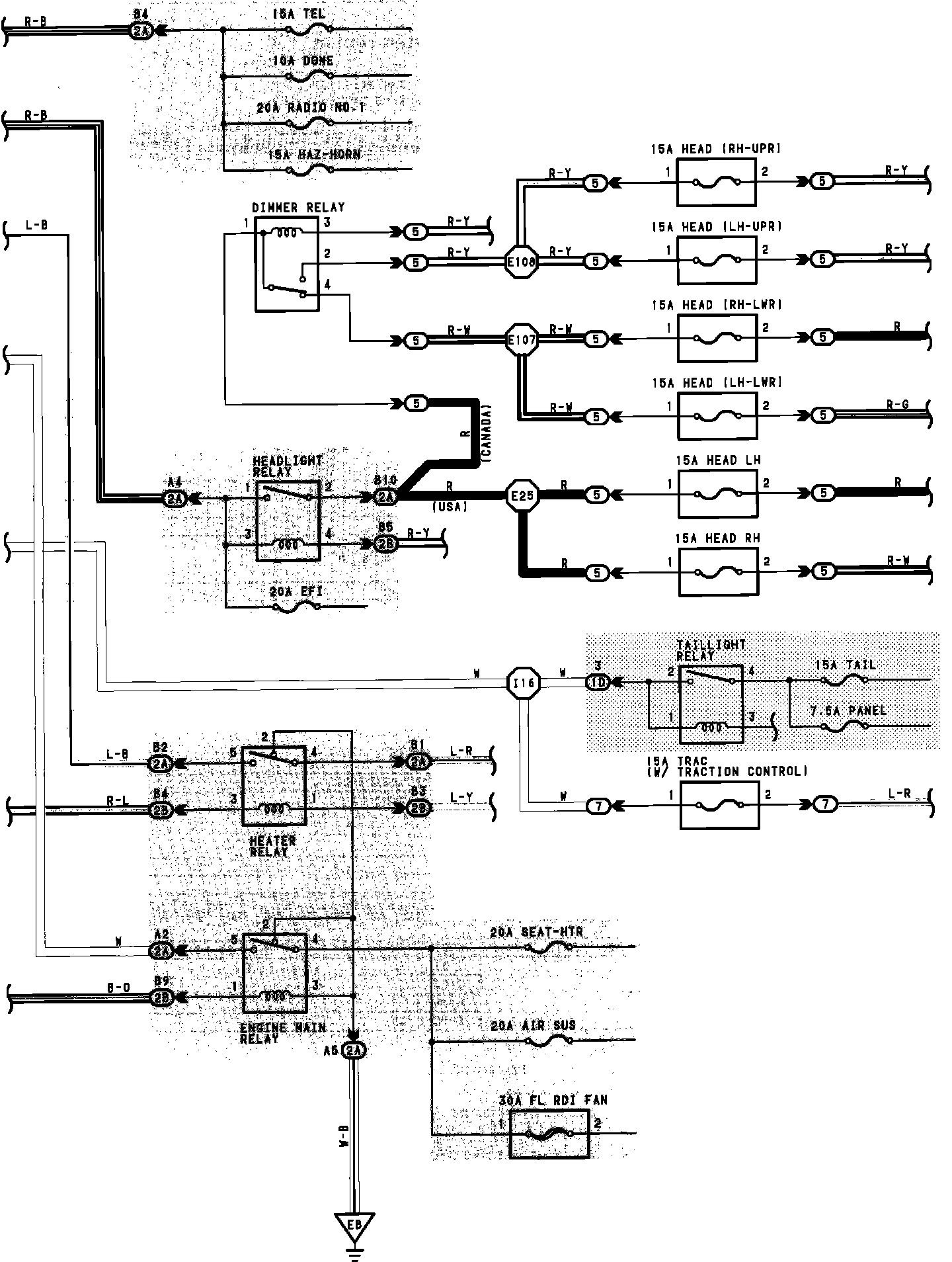

Schematic View Power Flow (2 Of 2):
