Steering Column Position Sensor: Locations

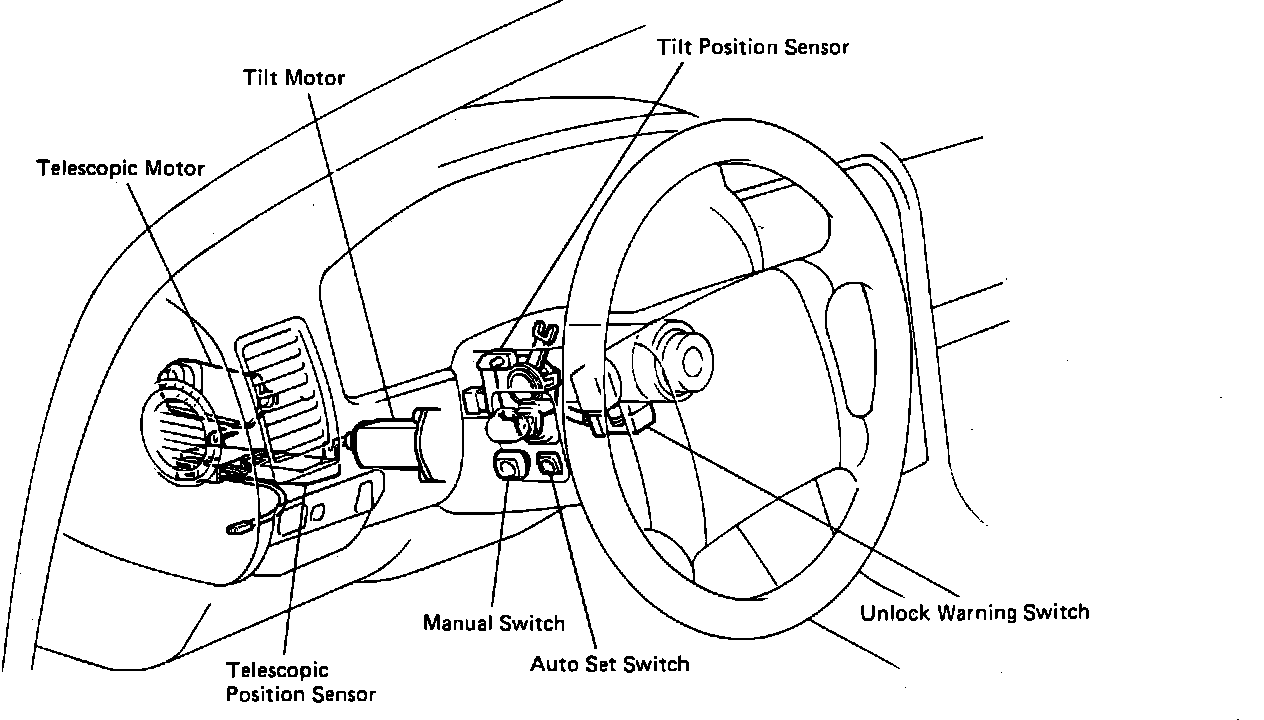

Tilt Steering System Components:




Behind LH Side Of I/P
