Home >> Lexus >> 1992 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Diagrams >> Connector Views

Connector Views

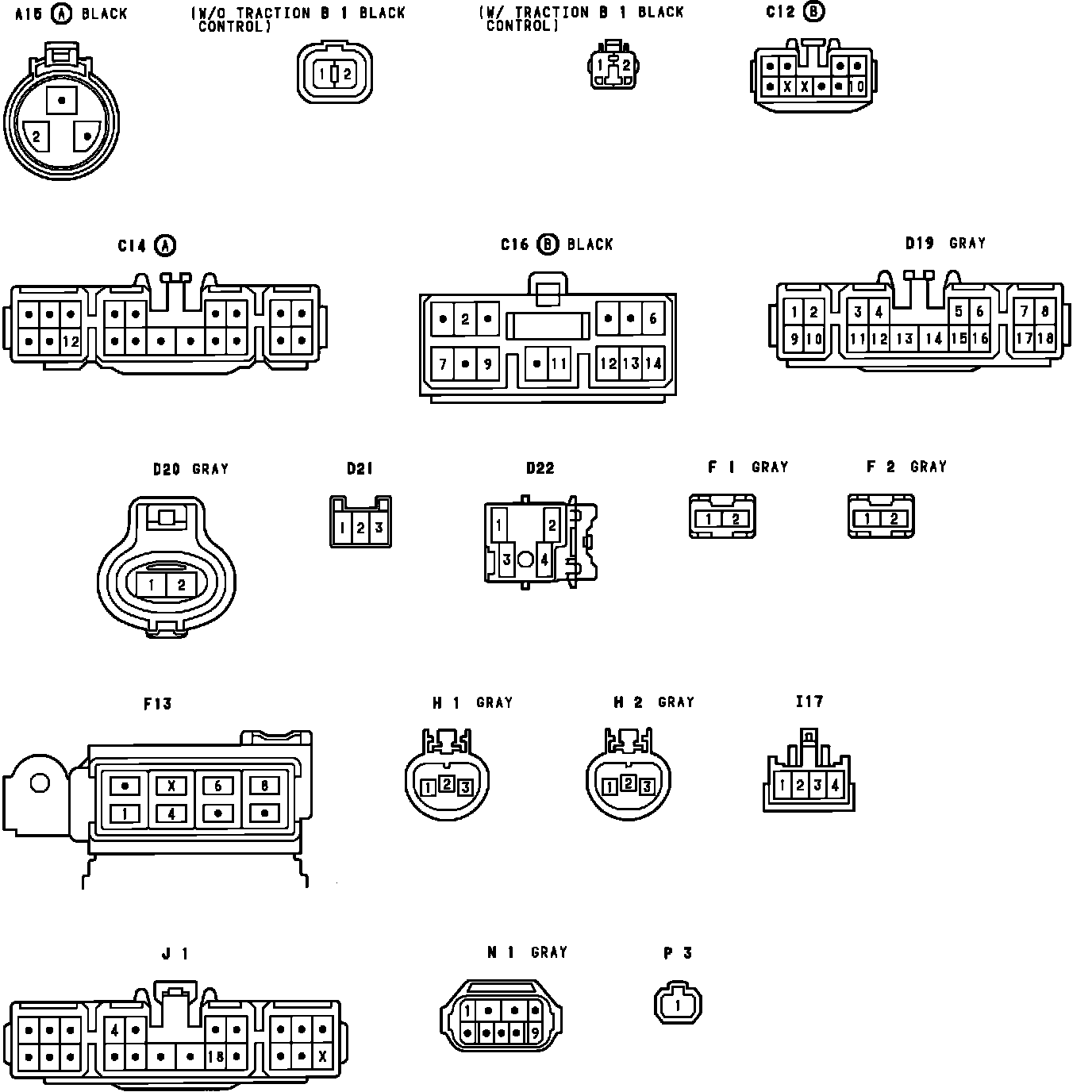

Headlight And Fog Lights (Canadian Models) Connector ID And Pin Locations:
