FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
1992
>>
LS 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Restraints and Safety Systems
>>
Seat Belt Systems
Seat Belt Systems

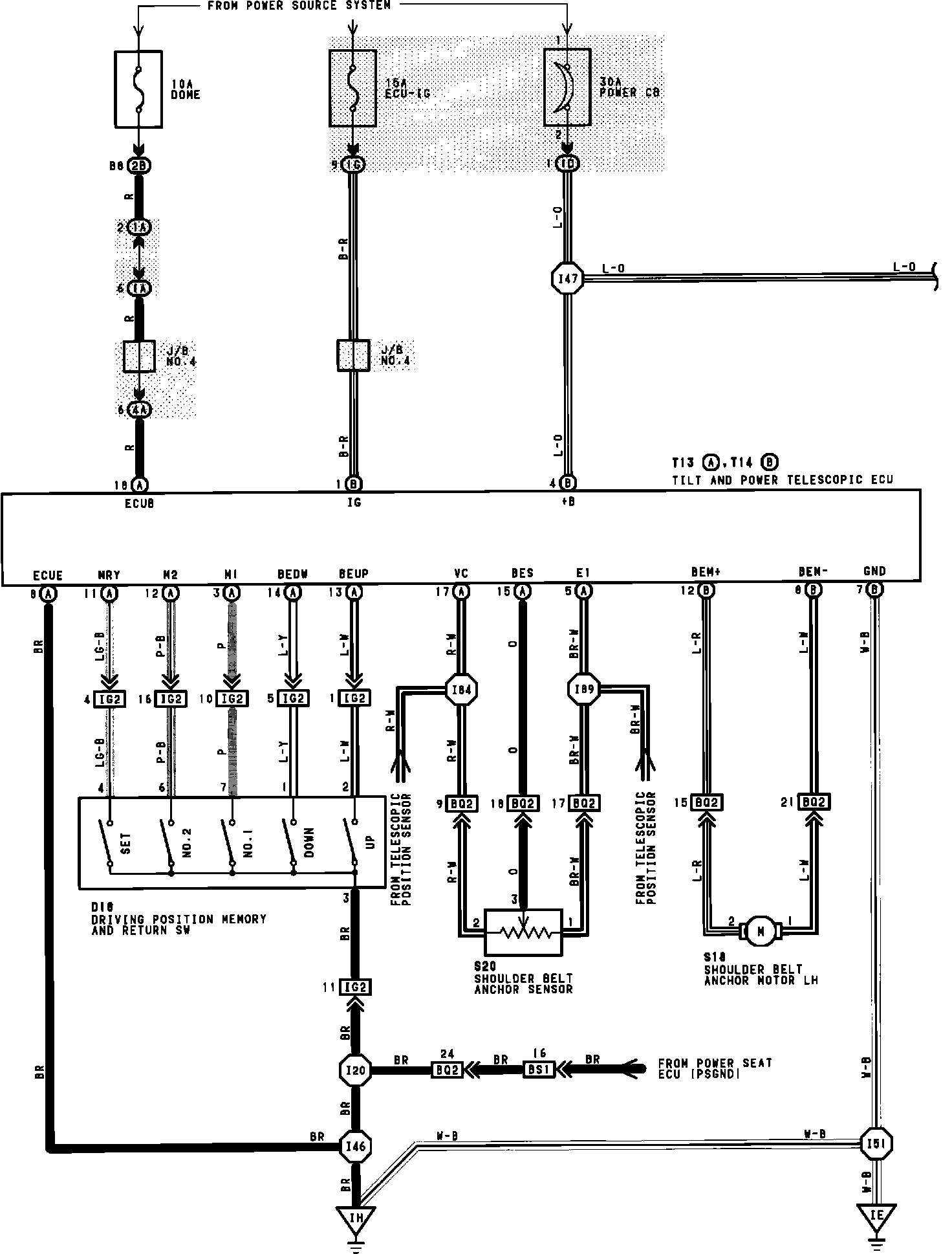

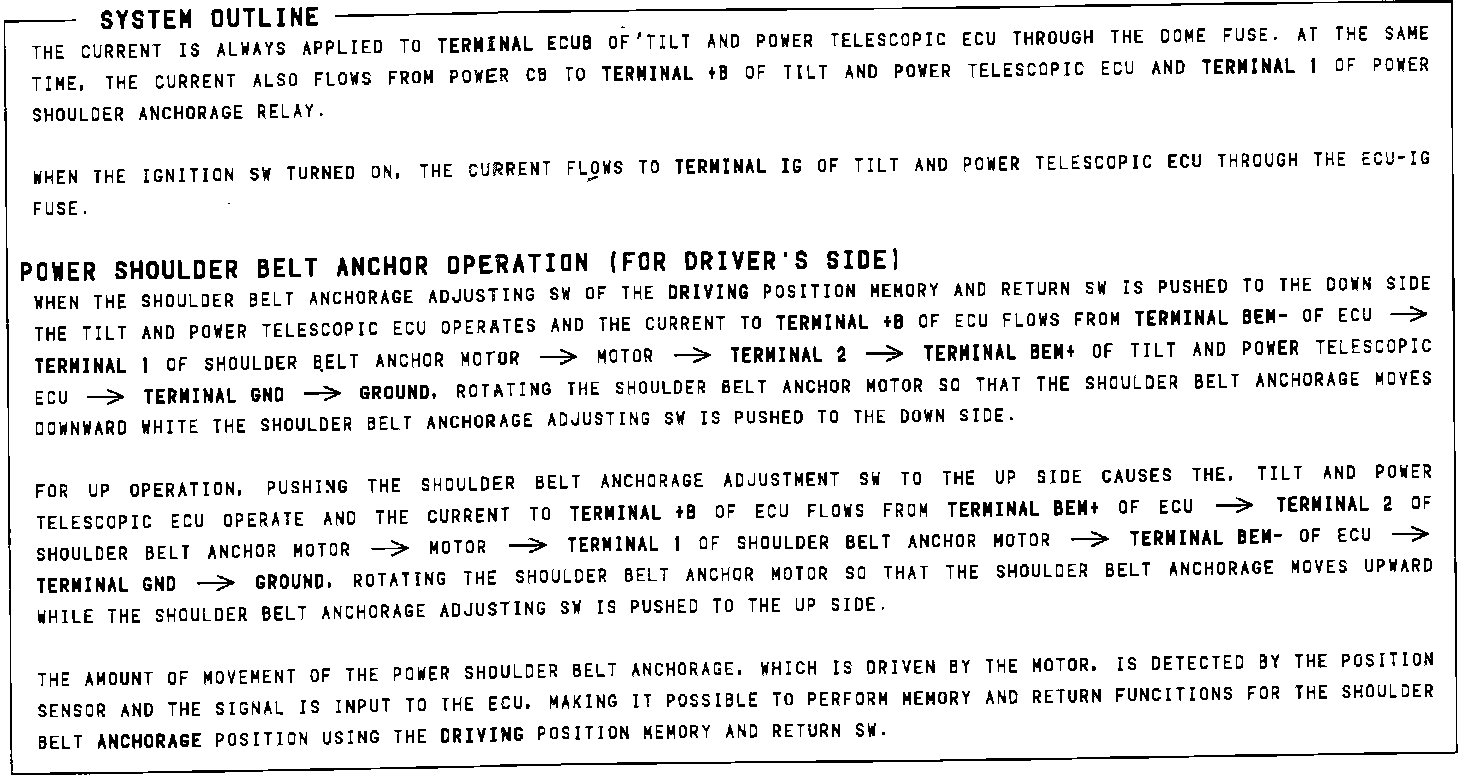

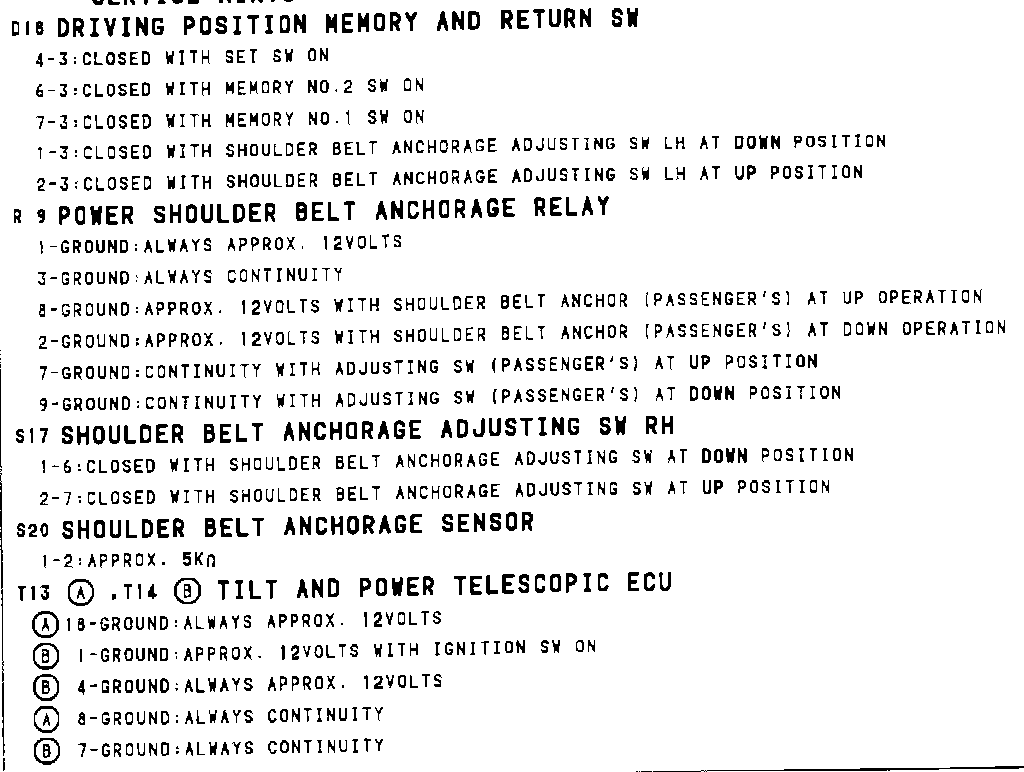

Power Shoulder Belts (1 Of 2):
Door Unlock And Seat Belt Warning:
Power Shoulder Belts (1 Of 2):
Seat Belt Electric Tension Reducer:
