Suspension Control ( Automatic - Electronic )
Suspension Control ( Automatic - Electronic )

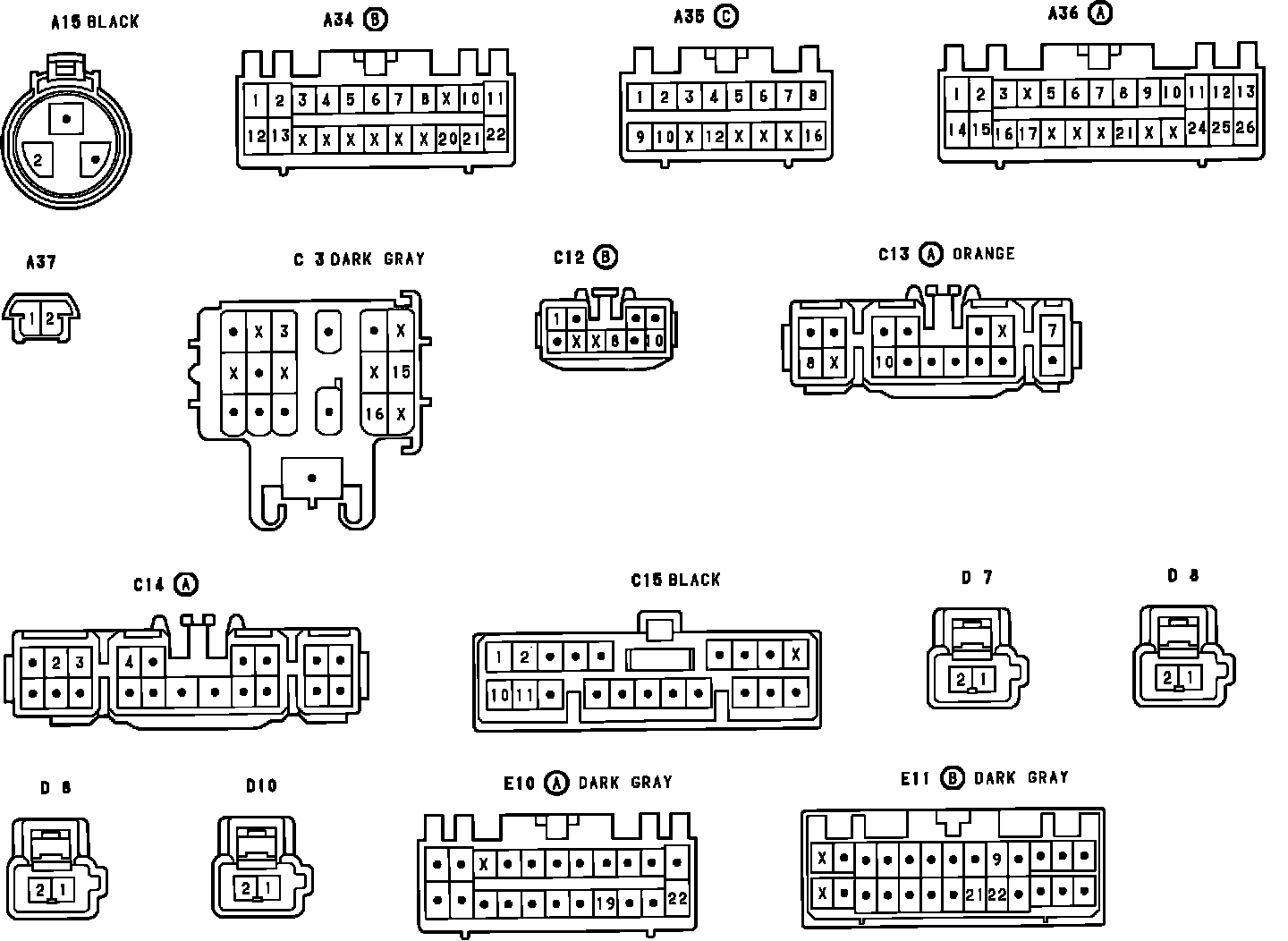

Electronic Modulated Air Suspension Connector ID And Pin Locations (1 Of 2):

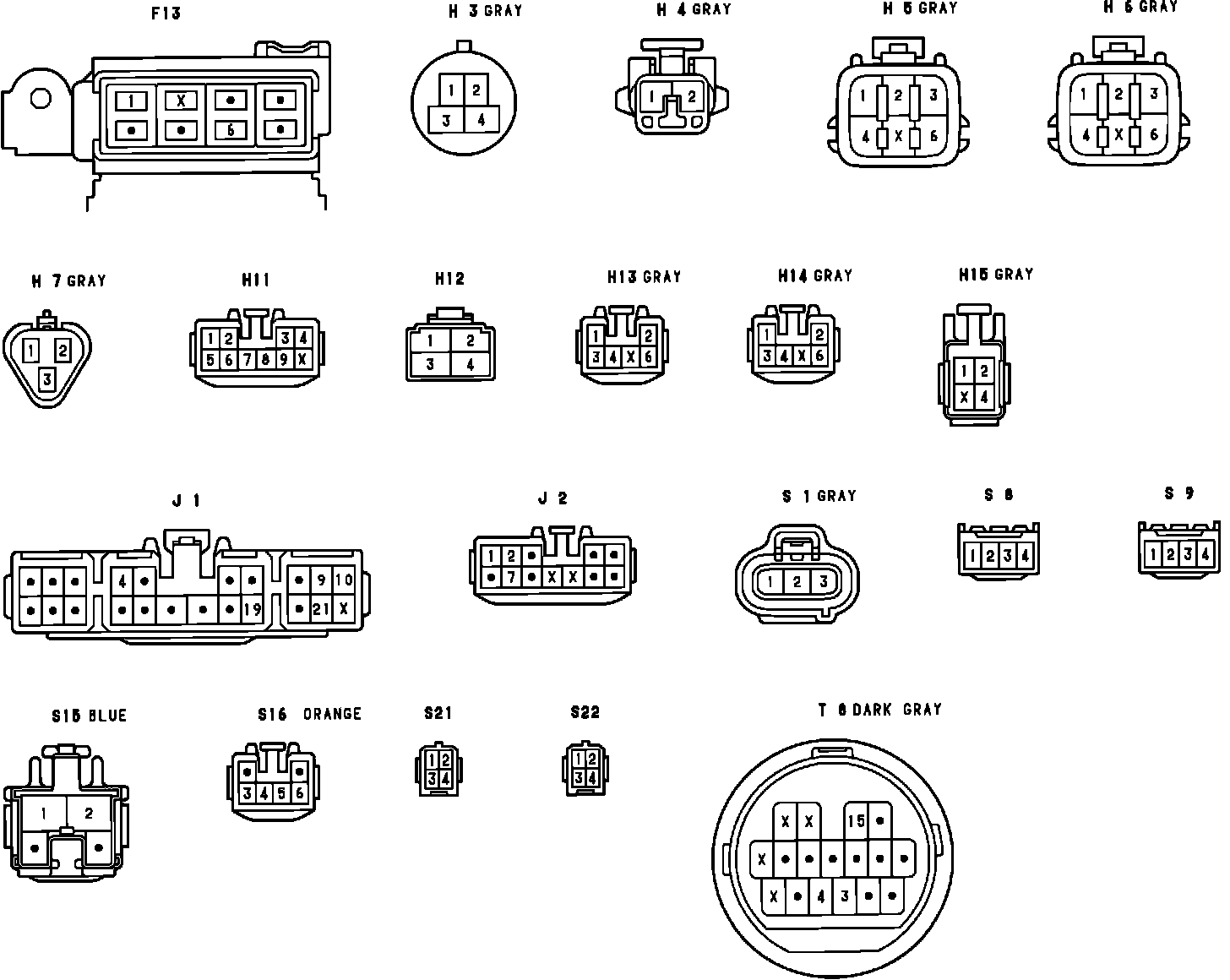

Electronic Modulated Air Suspension Connector ID And Pin Locations (2 Of 2):
