DTC 49

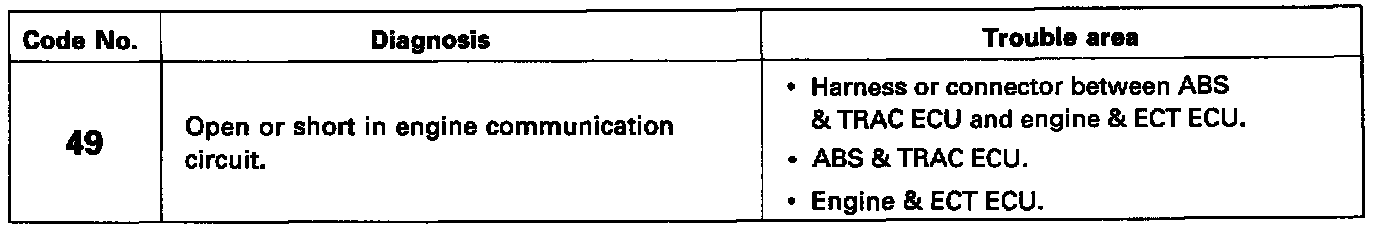

Diag. Code 49 Engine Communication Circuit





CIRCUIT DESCRIPTION
This circuit is used to send ignition timing retard request signals from the ABS & TRAC ECU to the engine ignition timing.

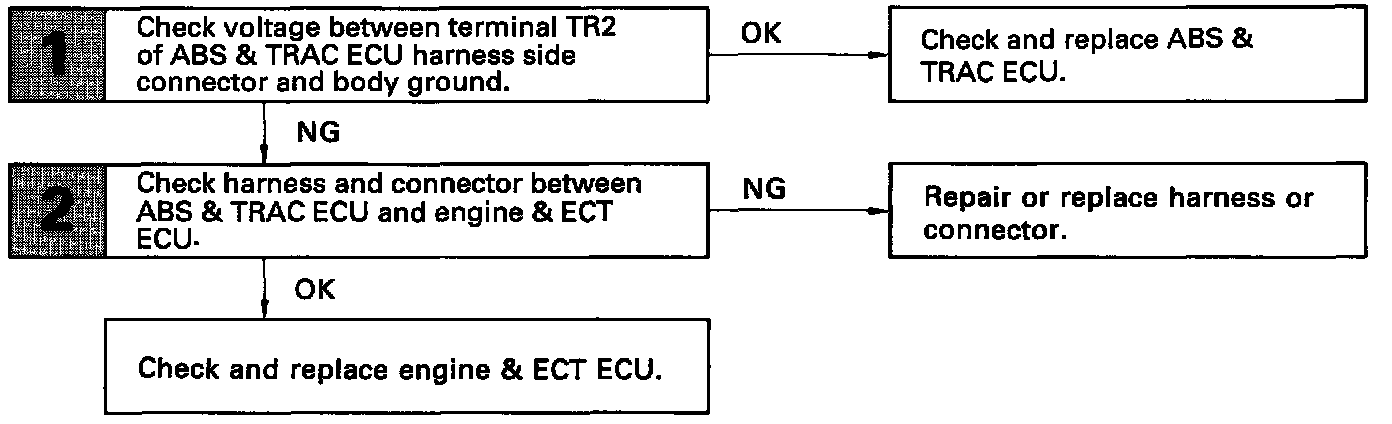

DIAGNOSTIC CHART

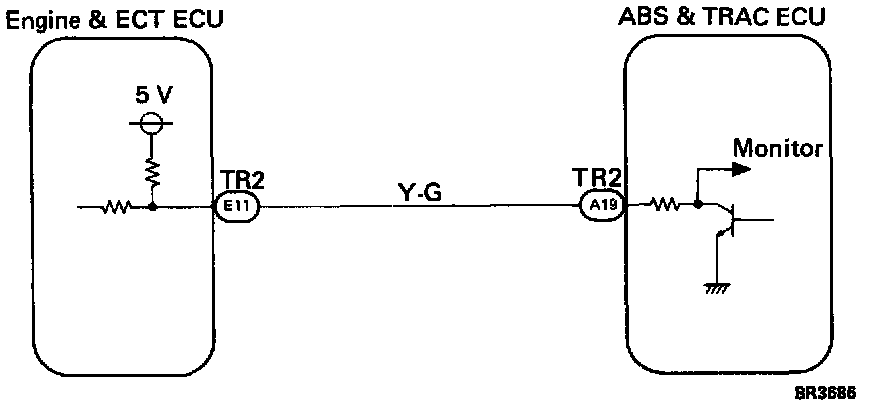

Wiring Diagram:

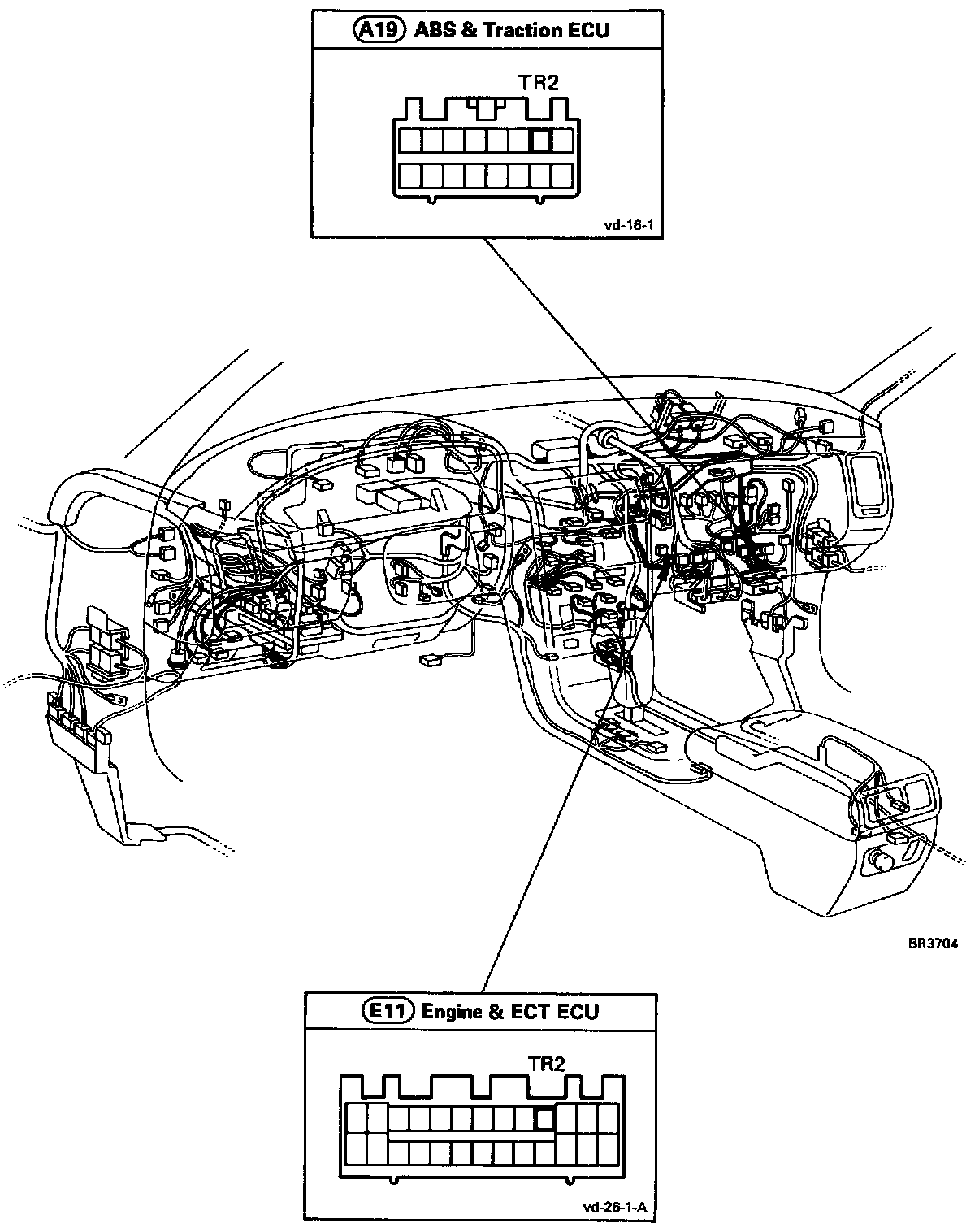

Wiring Routing:

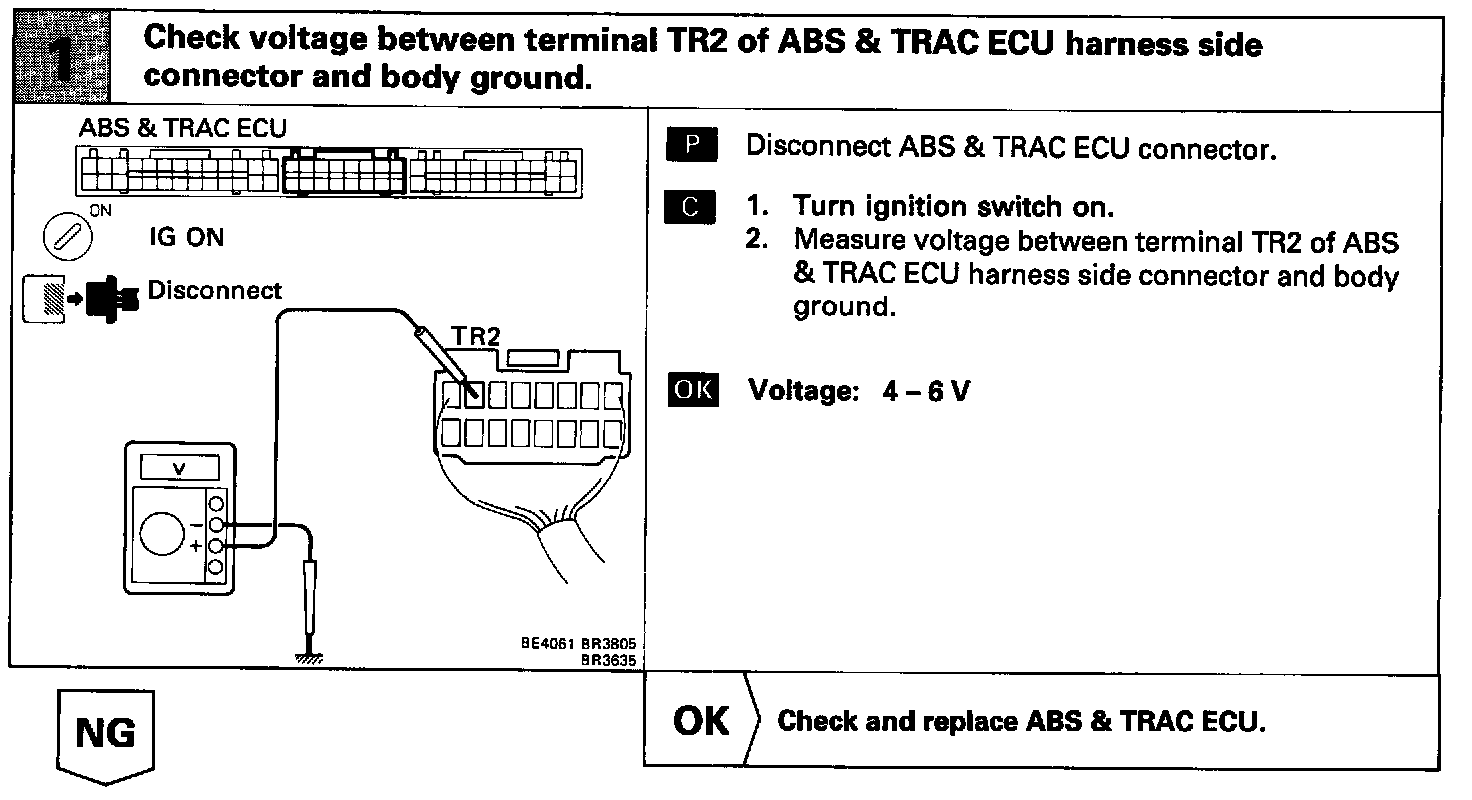

Step 1:

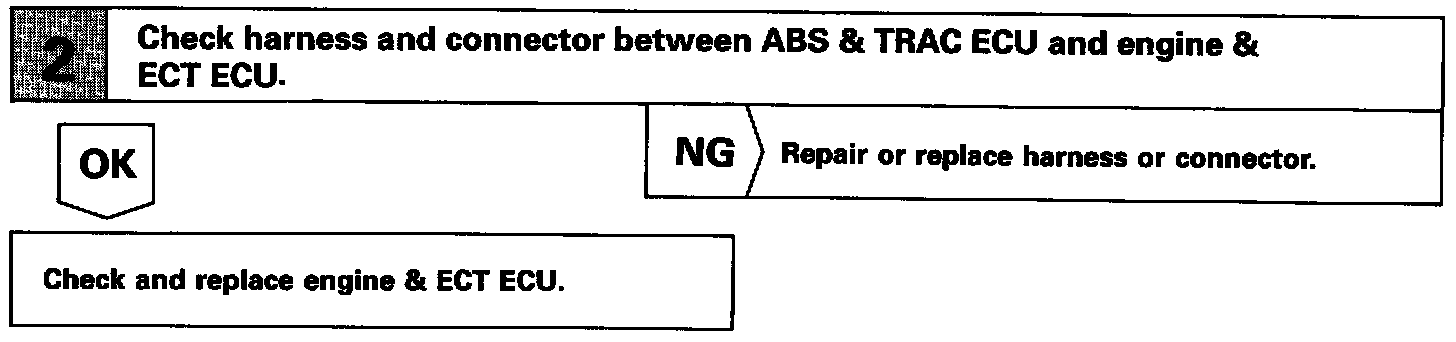

Step 2:

INSPECTION PROCEDURE
