Home >> Lexus >> 1991 >> ES 250 V6-2.5L (2VZ-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Restraints and Safety Systems

Restraints and Safety Systems

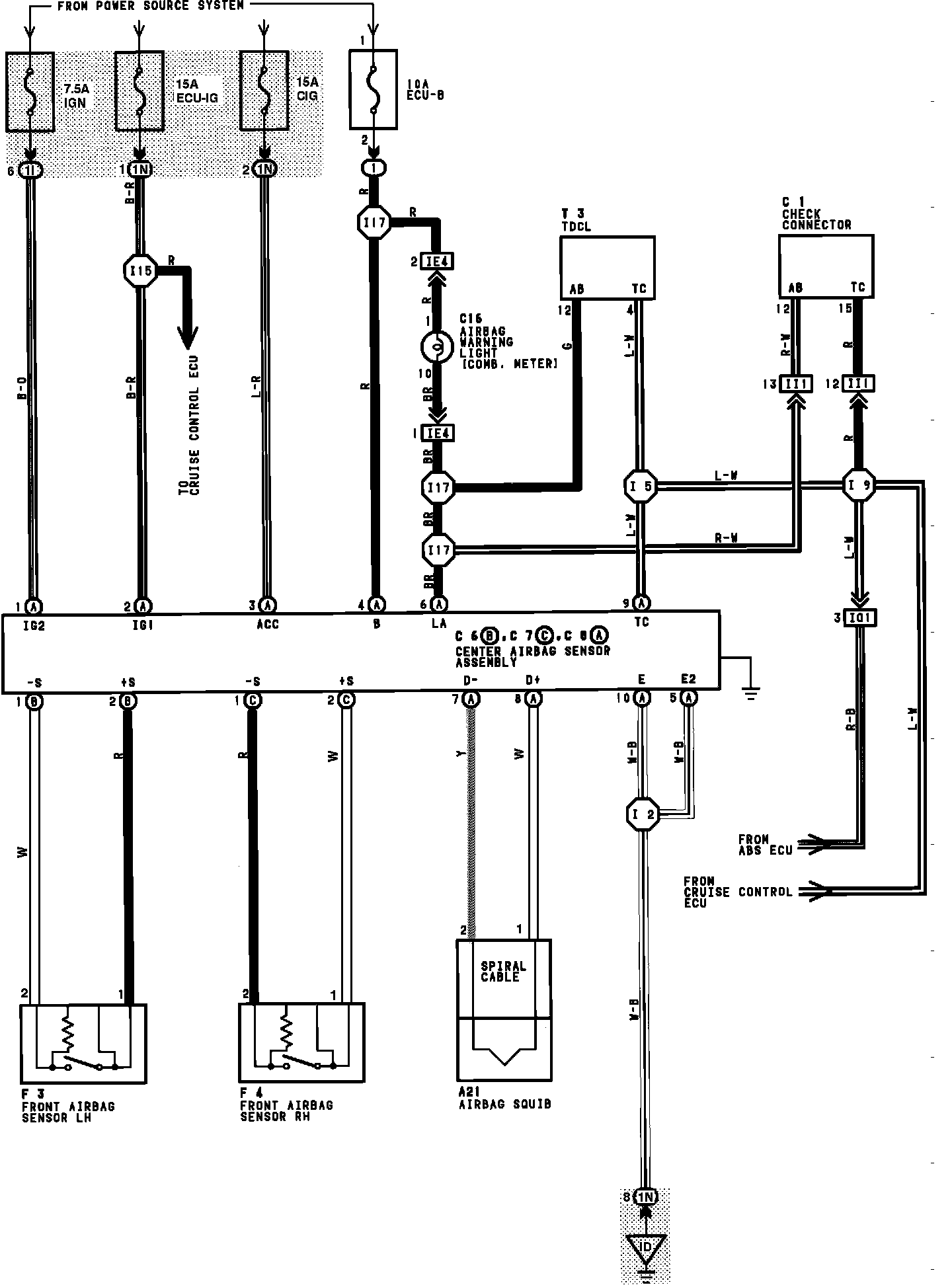

Fig. 9 Airbag System Wiring Diagram:



Airbag:
