Home >> Lexus >> 1991 >> ES 250 V6-2.5L (2VZ-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Mirrors >> Less Heaters

Less Heaters

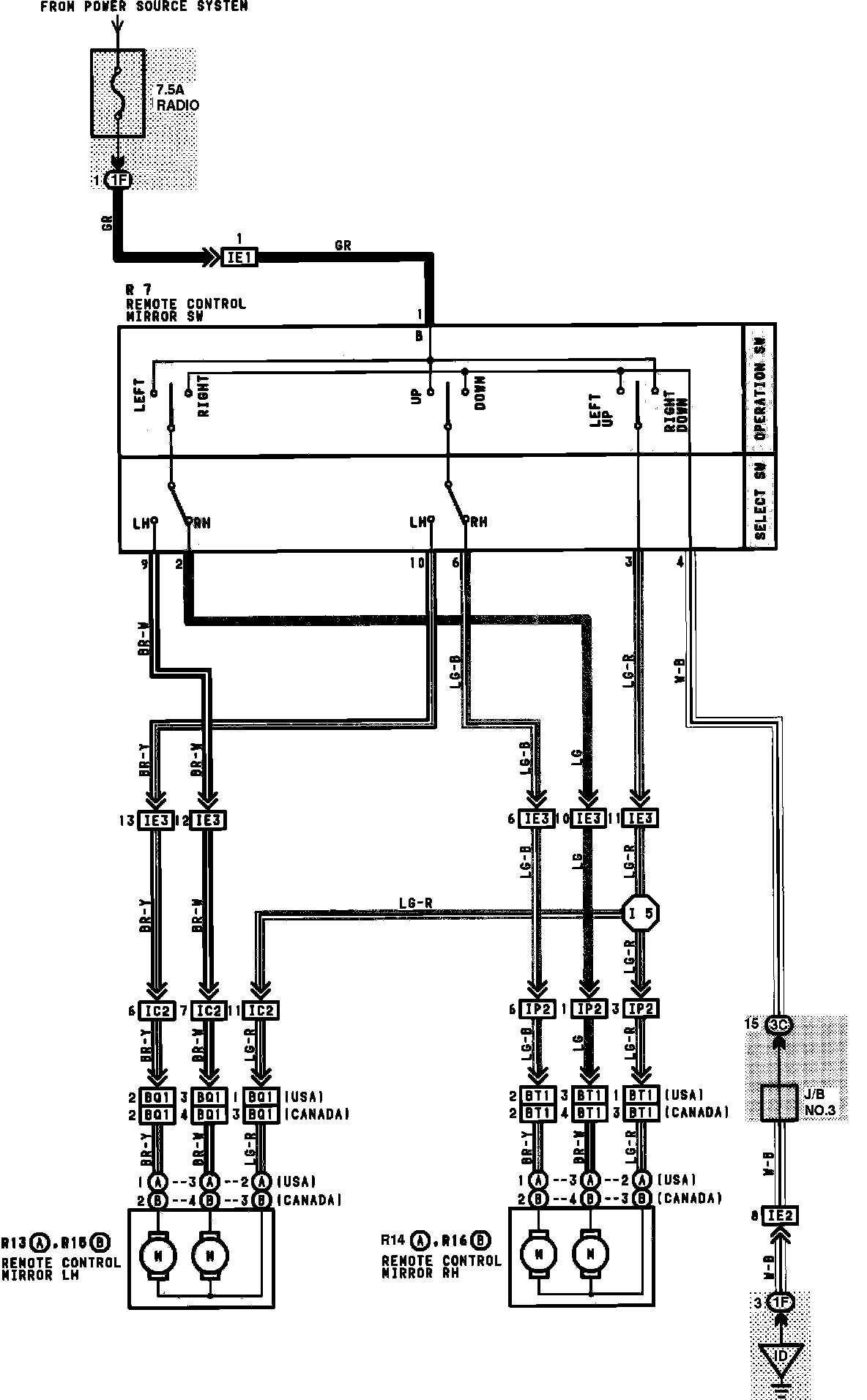

Remote Control Mirrors (Power Mirrors):
