A/T - Improved 'N' to 'D' Shift Feel

90lexus05 TRANSMISSION & CLUTCH 007 12-07-90 LS400
Title IMPROVED SHIFT FEEL FROM "N" TO "D"

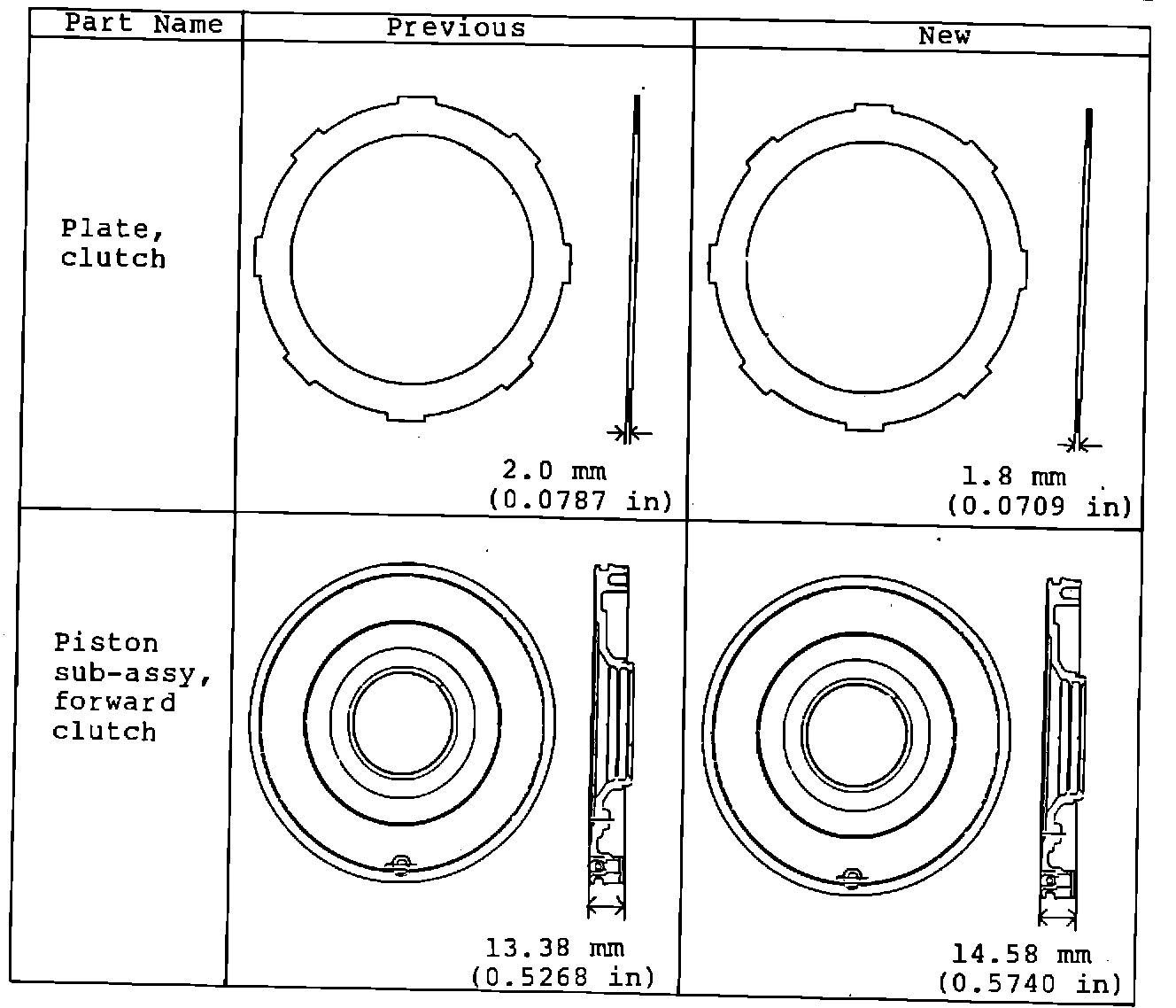

To improve the shift feel from "N" to "D", the following parts have been modified:

A. Clutch plate (decreased thickness)
B. Forward clutch piston (increased thickness)
PRODUCTTON EFFECTIVE:

From VIN No. Date From A/T Serial No.
JT8UF11E # L0010918 Dec. '89 9ME-00001


PART NUMBER INFORMATION:

Prev. Part No. New Part No. Part Name Qty.
35634-30100 *35634-32010 Plate, clutch 6
35602-50010 *35602-50011 Piston sub-assy, 1
forward clutch

* Parts interchangeable as a set only.
