Vehicle - Towing & Tie Down Procedure

90lexus02 BODY 003 02-09-90 LS400
Title LS400 TOWING & TIE-DOWN PROCEDURE FOR TRANSPORT

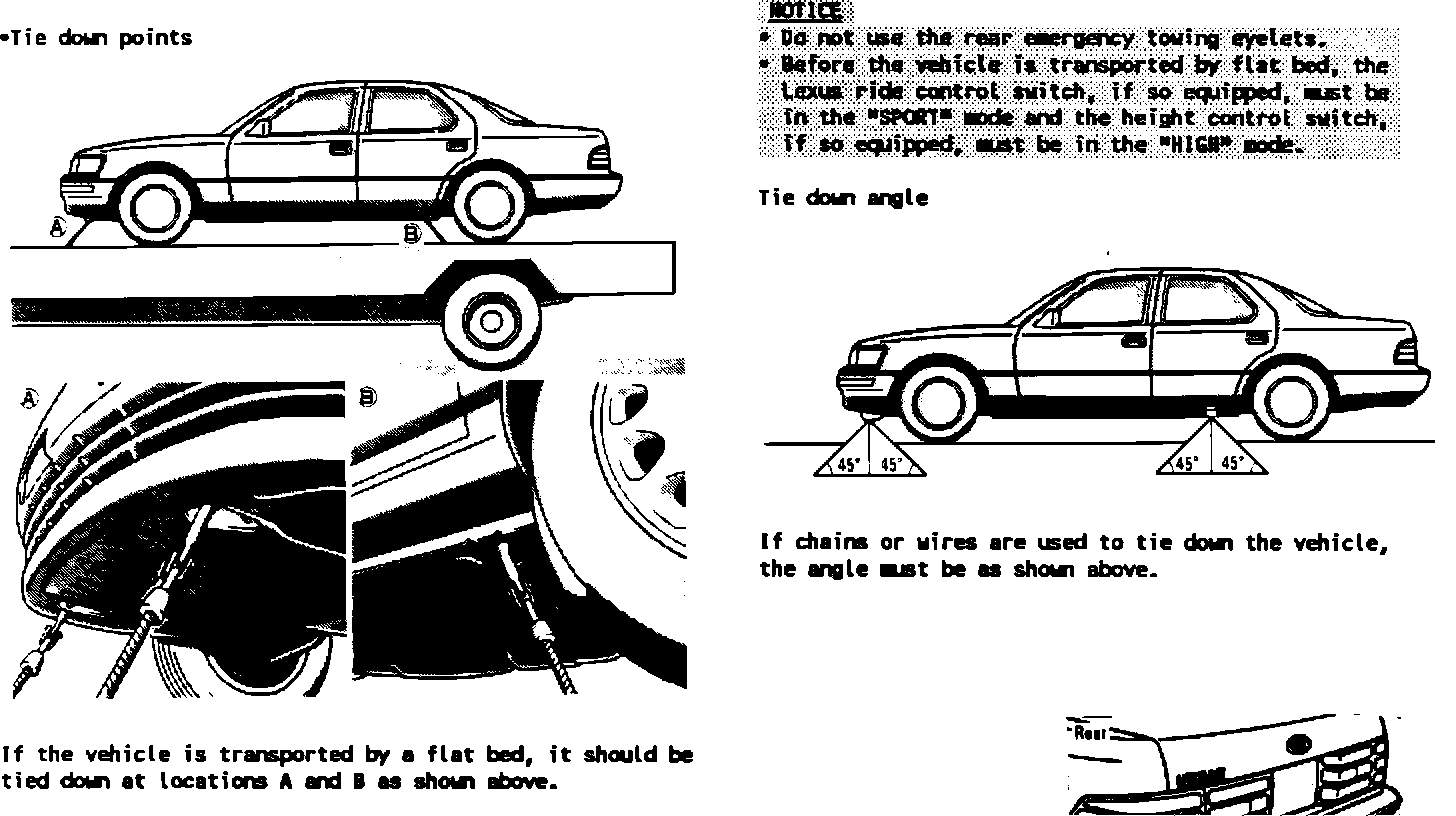

LS400 vehicles should only be transported by a flat bed or a wheel lift type truck. For transportation of the Lexus LS400 by flat bed truck, use only the following points on the vehicle to secure it to the transport.

TRANSPORTING THE LEXUS LS400 BY FLAT BED TRUCK::




Note: If it is necessary to tow an LS400 with the rear wheels on the ground over 30 mph, or in excess of 50 miles, wheel dolly must be used to support the rear wheels. This is to prevent damage to the transmission.

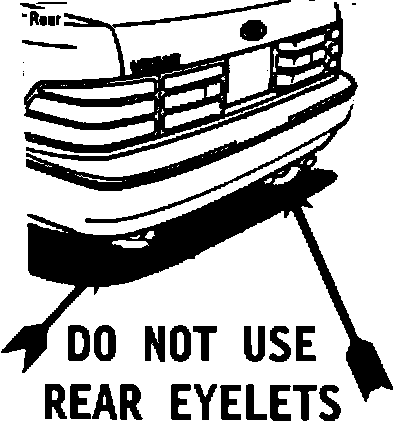

Do Not under any circumstances secure an LS400 vehicle to a transport truck by using the rear eyelets.
