Throttle Position Signal Circuit

THROTTLE POSITION SIGNAL CIRCUIT

CIRCUIT DESCRIPTION
The suspension ECU communicates with the engine & ECT ECU and detects the throttle valve opening angle and opening speed. The suspension ECU uses this signal as one of the operating conditions for Anti-squat control.





DIAGNOSTIC CHART

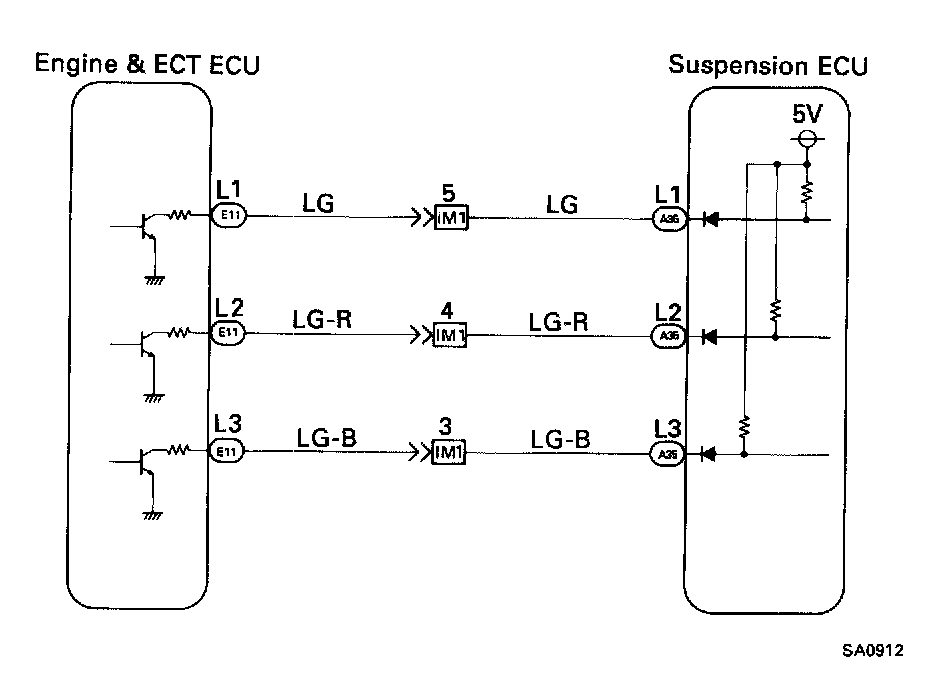

WIRING DIAGRAM

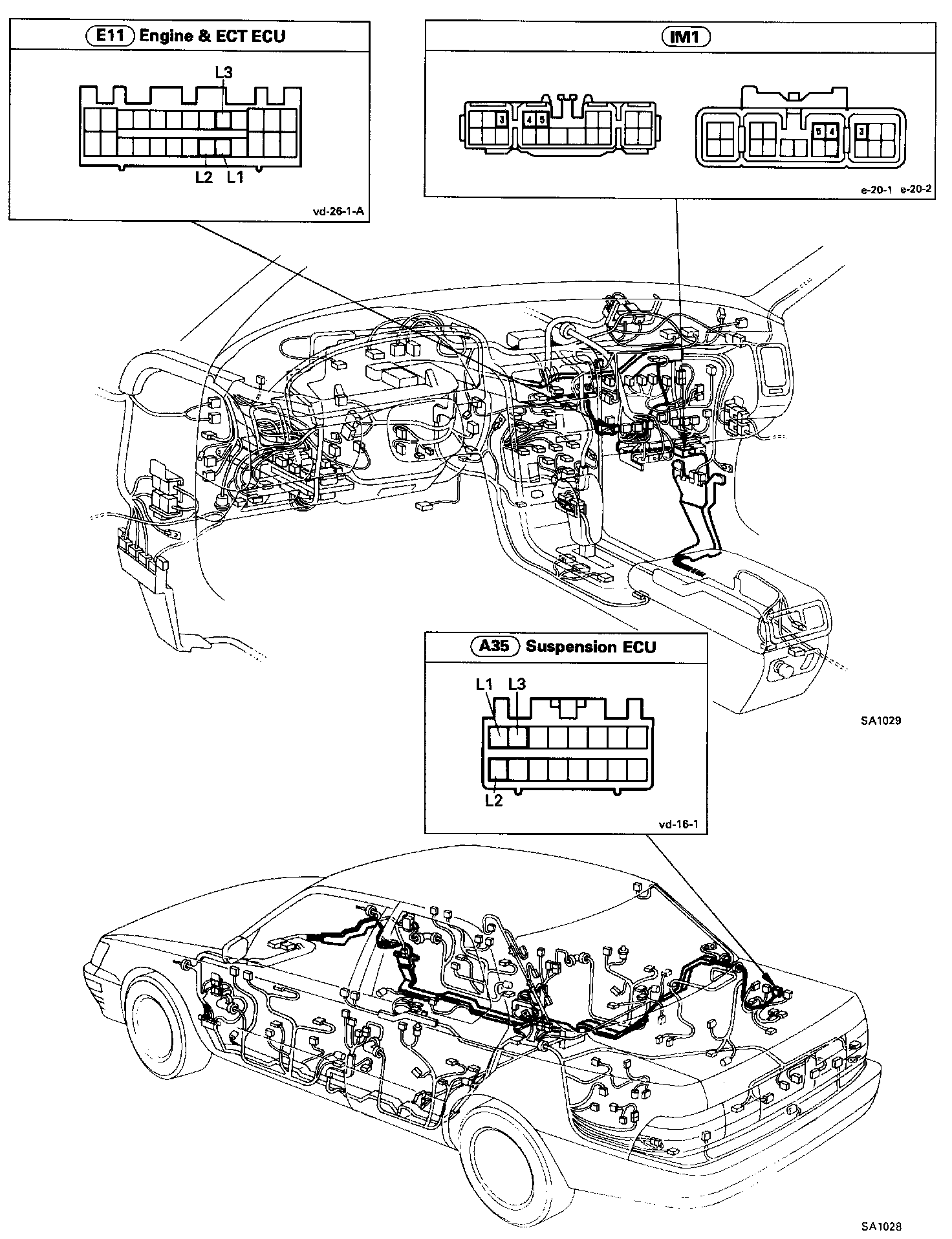

WIRING ROUTING

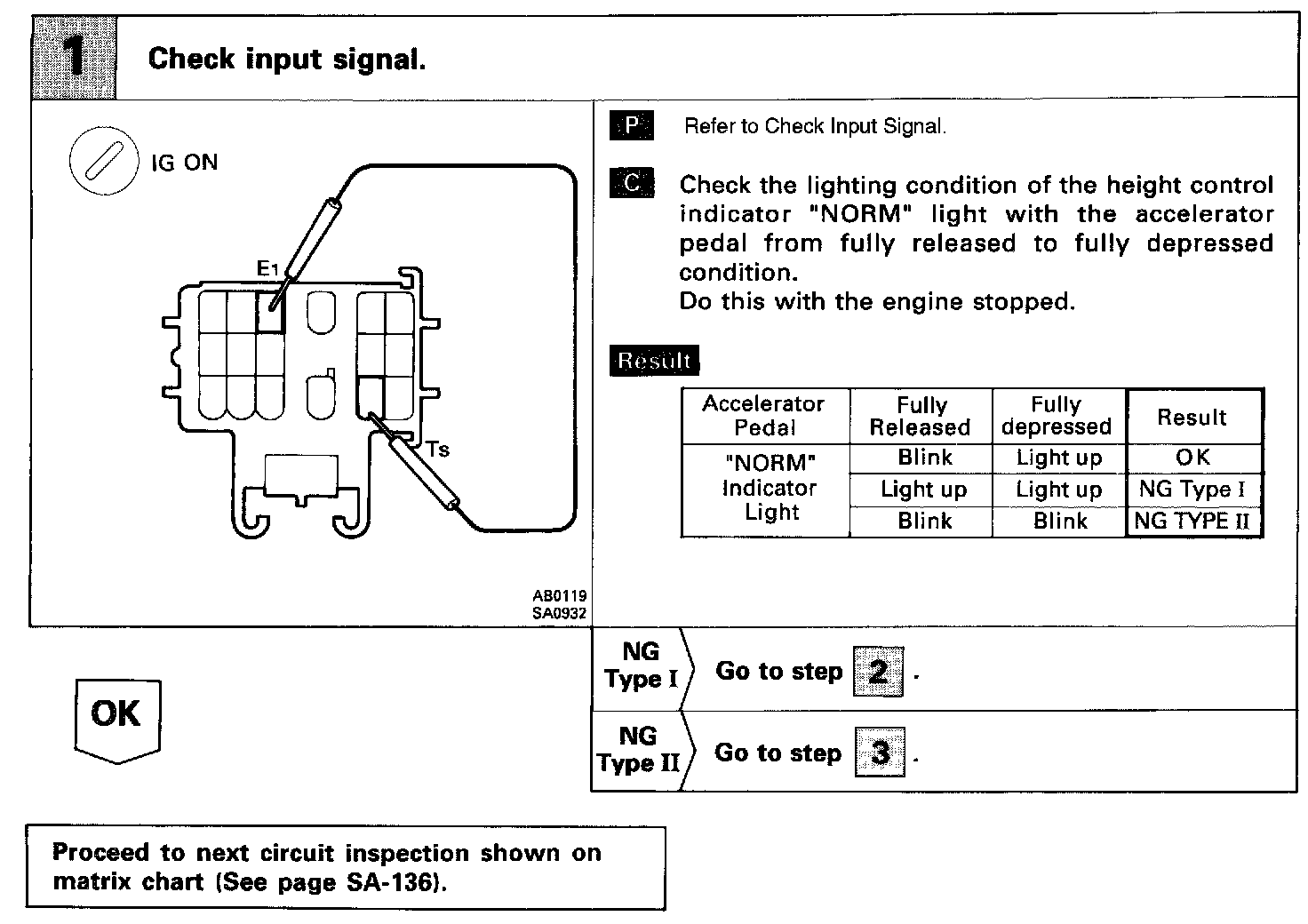

Step 1:

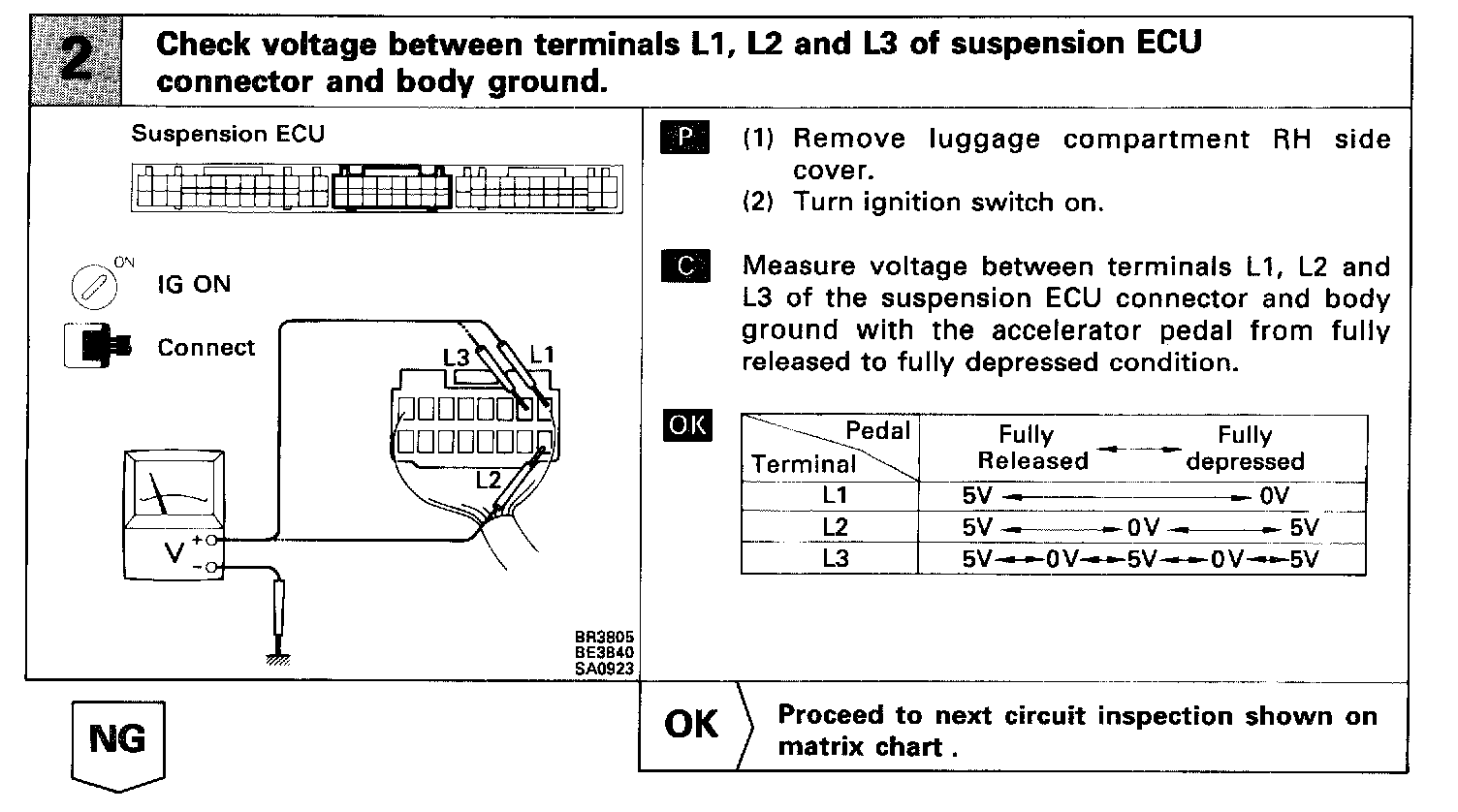

Step 2:

Step 4:

Step 4:

Step 5:

INSPECTION PROCEDURE
