TC Terminal Circuit

TC TERMINAL CIRCUIT

CIRCUIT DESCRIPTION
By connecting terminals Tc and E1 of the TDCL or check connector, the diagnostic codes stored in the ECU memory can be displayed by the height control indicator "NORM" light.





DIAGNOSTIC CHART





WIRING DIAGRAM








WIRING ROUTING

Step 2:

Step 3:

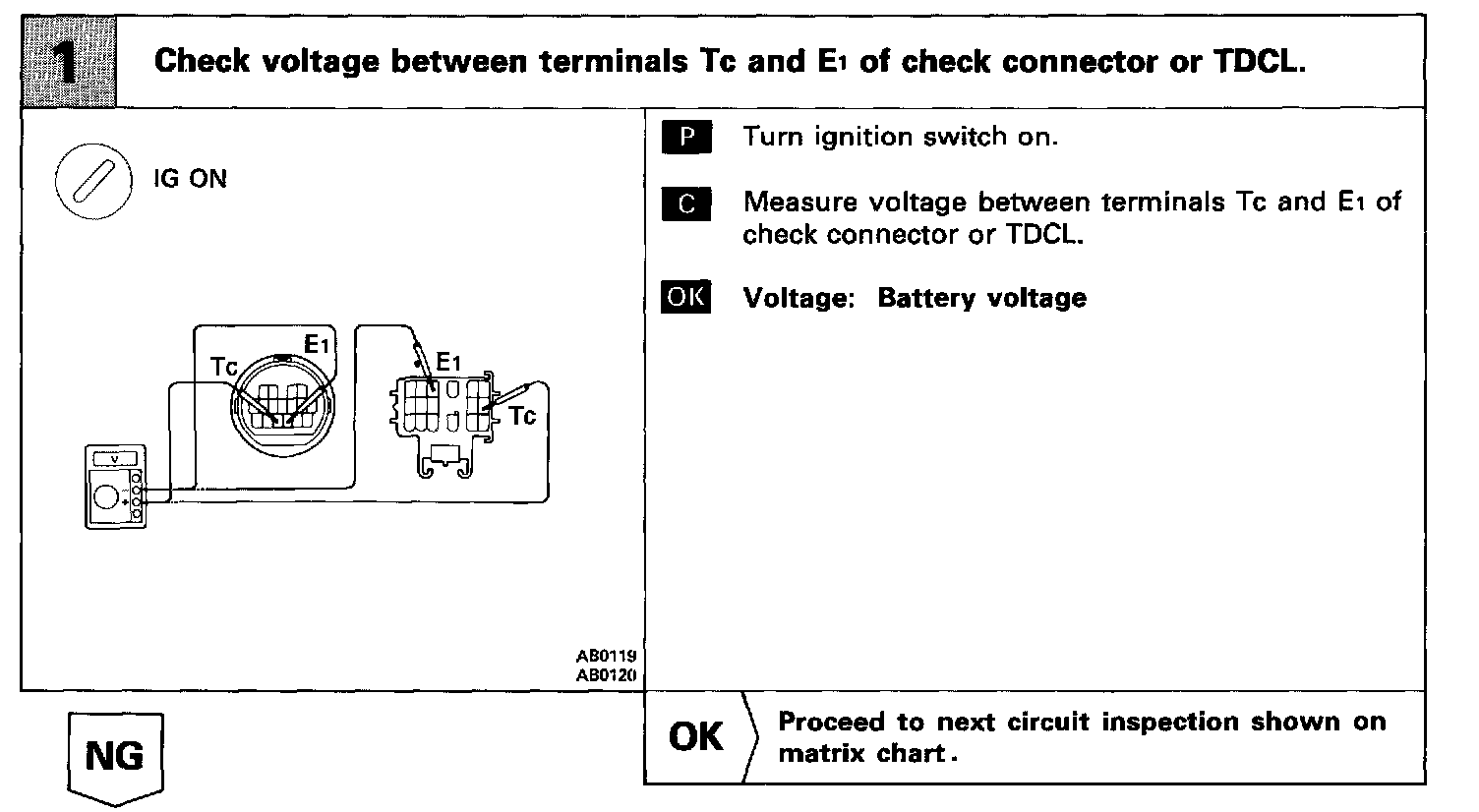

INSPECTION PROCEDURE
