Stop Light Switch Circuit

STOP LIGHT SWITCH CIRCUIT

CIRCUIT DESCRIPTION
When the brake pedal is depressed, the stop light switch comes on and battery voltage is applied to terminal STP of ECU. This signal is used by the ECU as one of the starting conditions for Anti-dive control.

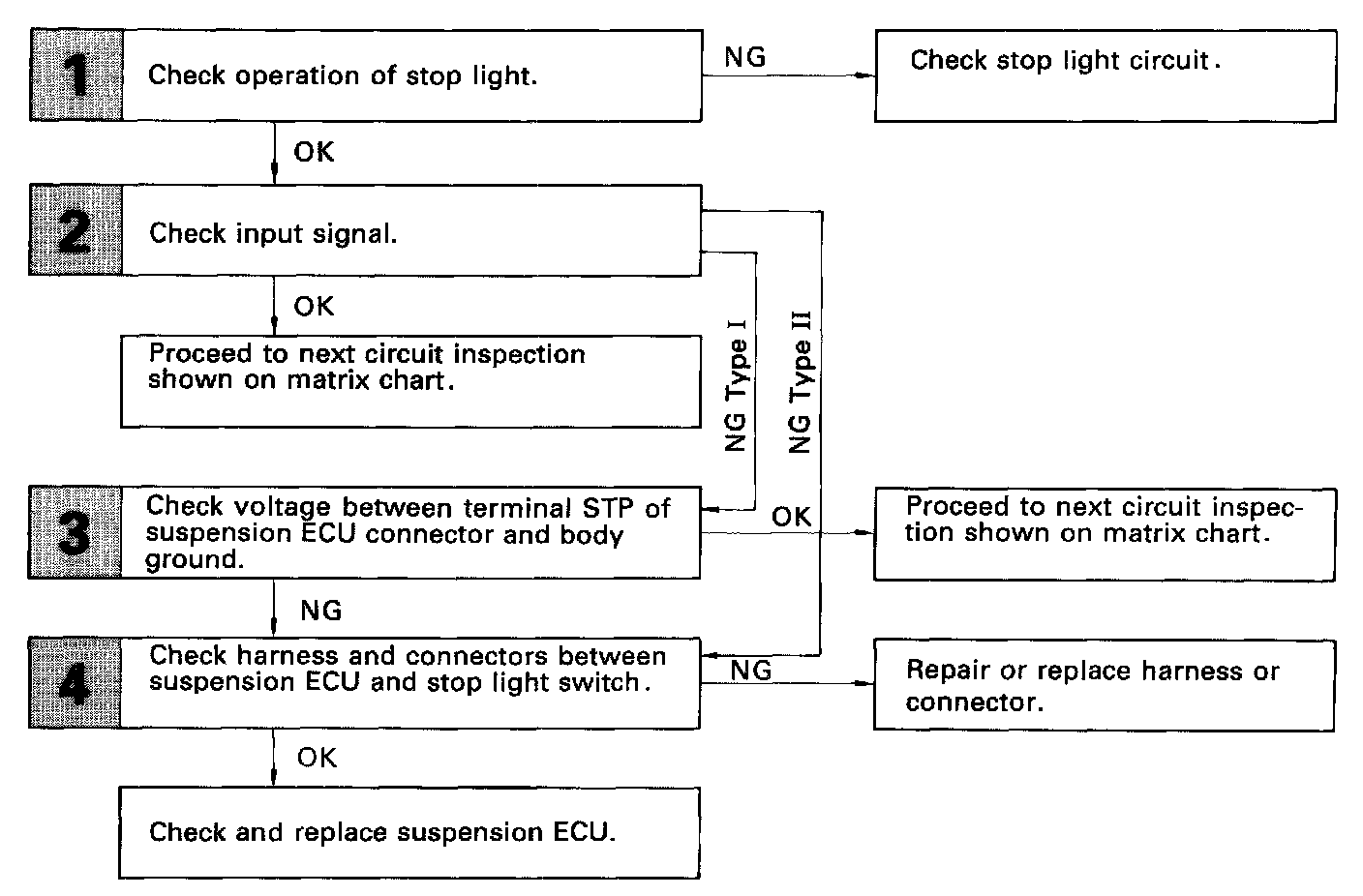

DIAGNOSTIC CHART





WIRING DIAGRAM





WIRING ROUTING

Step 1:

Step 2:

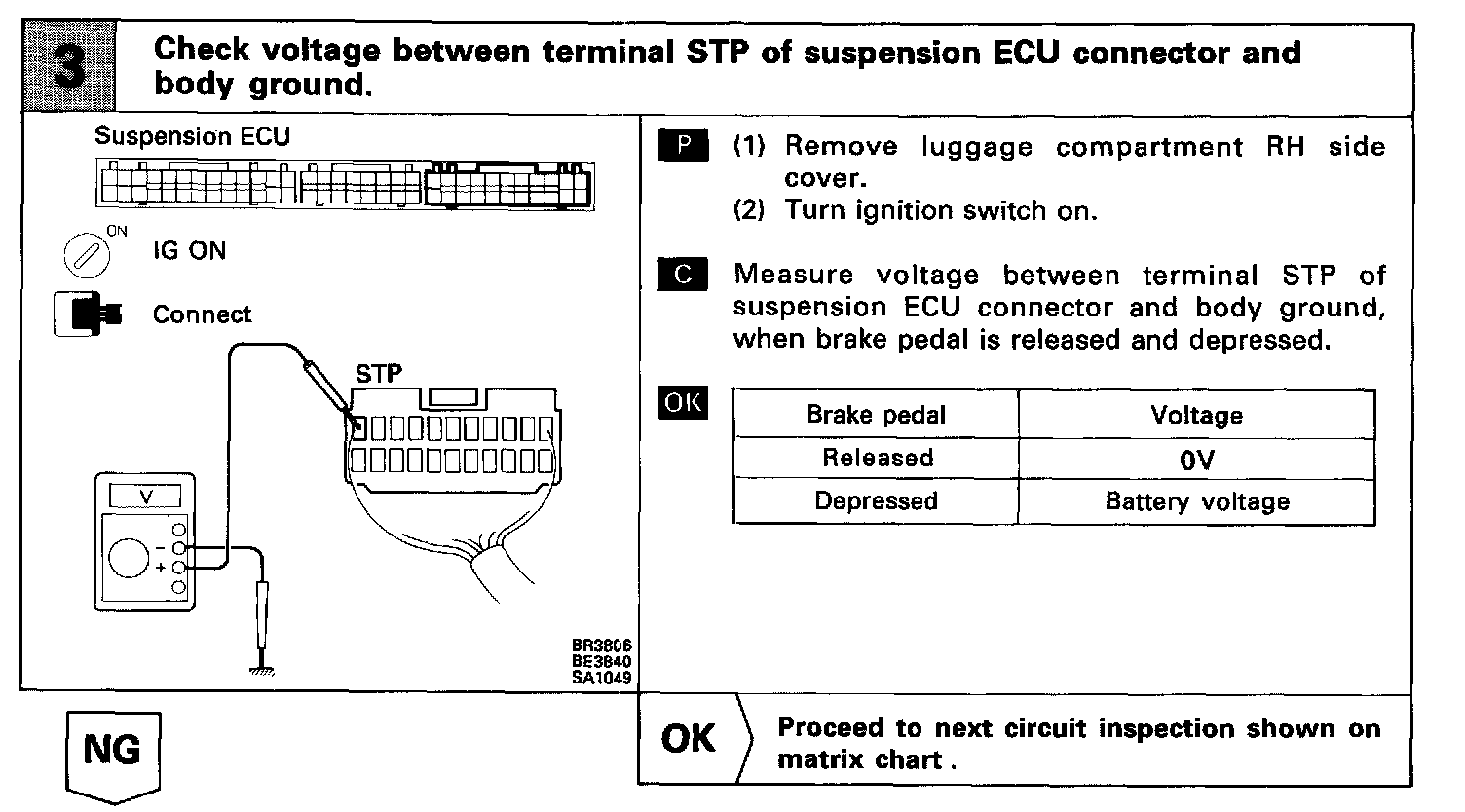

Step 3:

Step 4:

INSPECTION PROCEDURE
