LRC Switch Circuit

LRC SWITCH CIRCUIT

CIRCUIT DESCRIPTION
The LRC (Lexus Ride Control) switch comes on when it is pressed to the SPORT side and goes off when pressed to the NORM side.

The ECU detects the LRC switch condition, operates the suspension control actuator accordingly and changes the damping force of shock absorber and the spring rate of pneumatic cylinder.

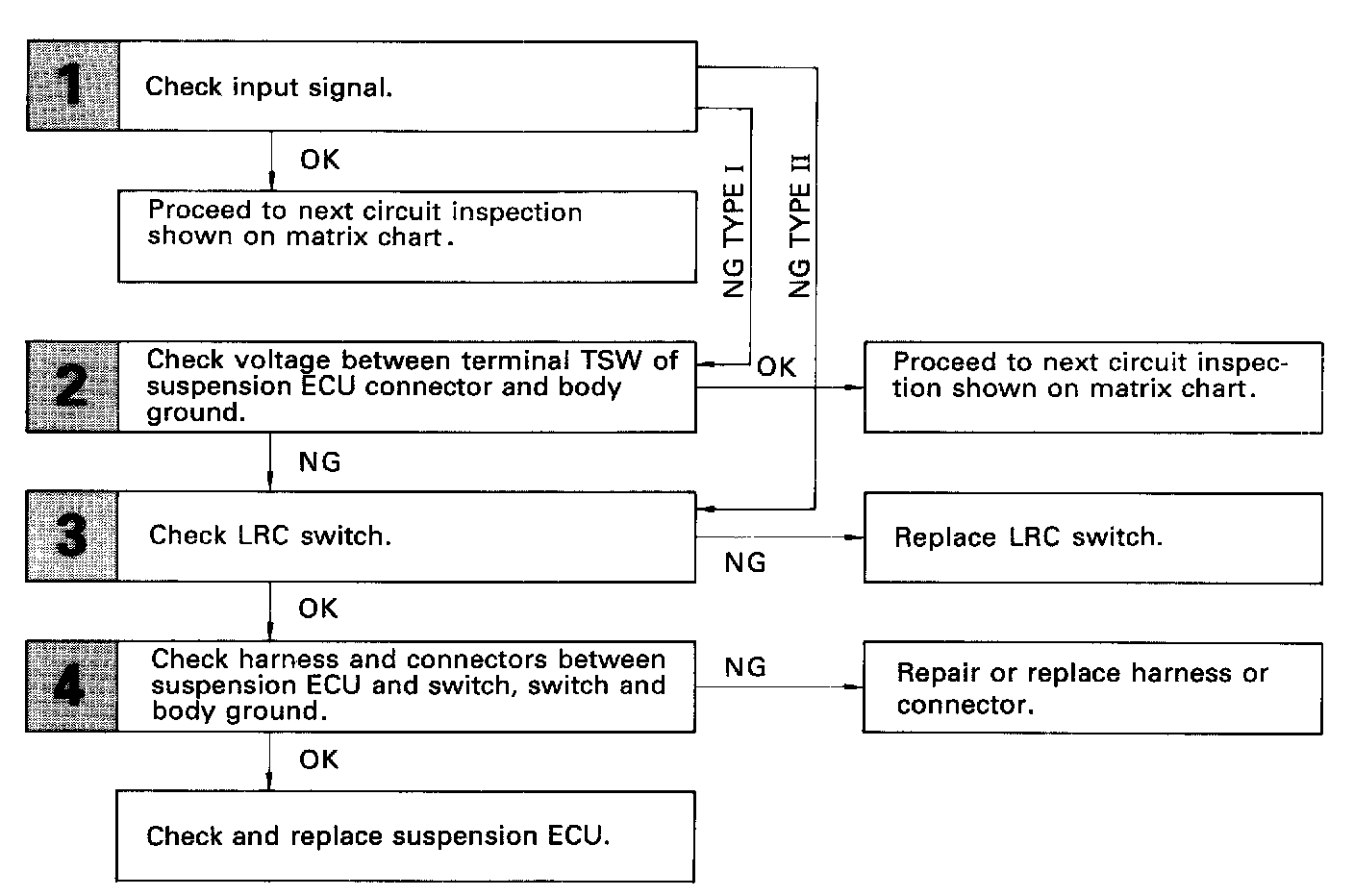

DIAGNOSTIC CHART





WIRING DIAGRAM





WIRING ROUTING

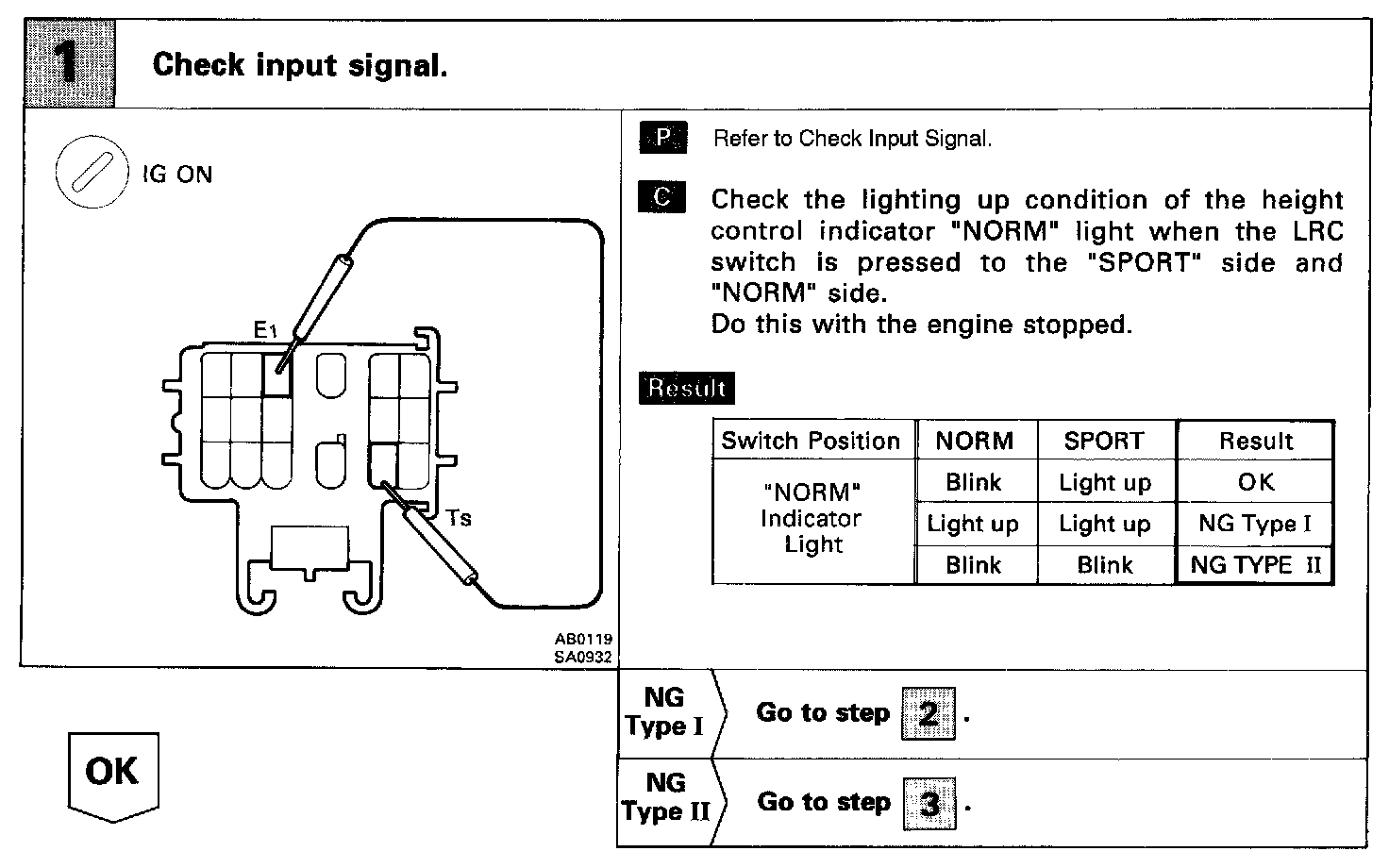

Step 1:

Step 2:

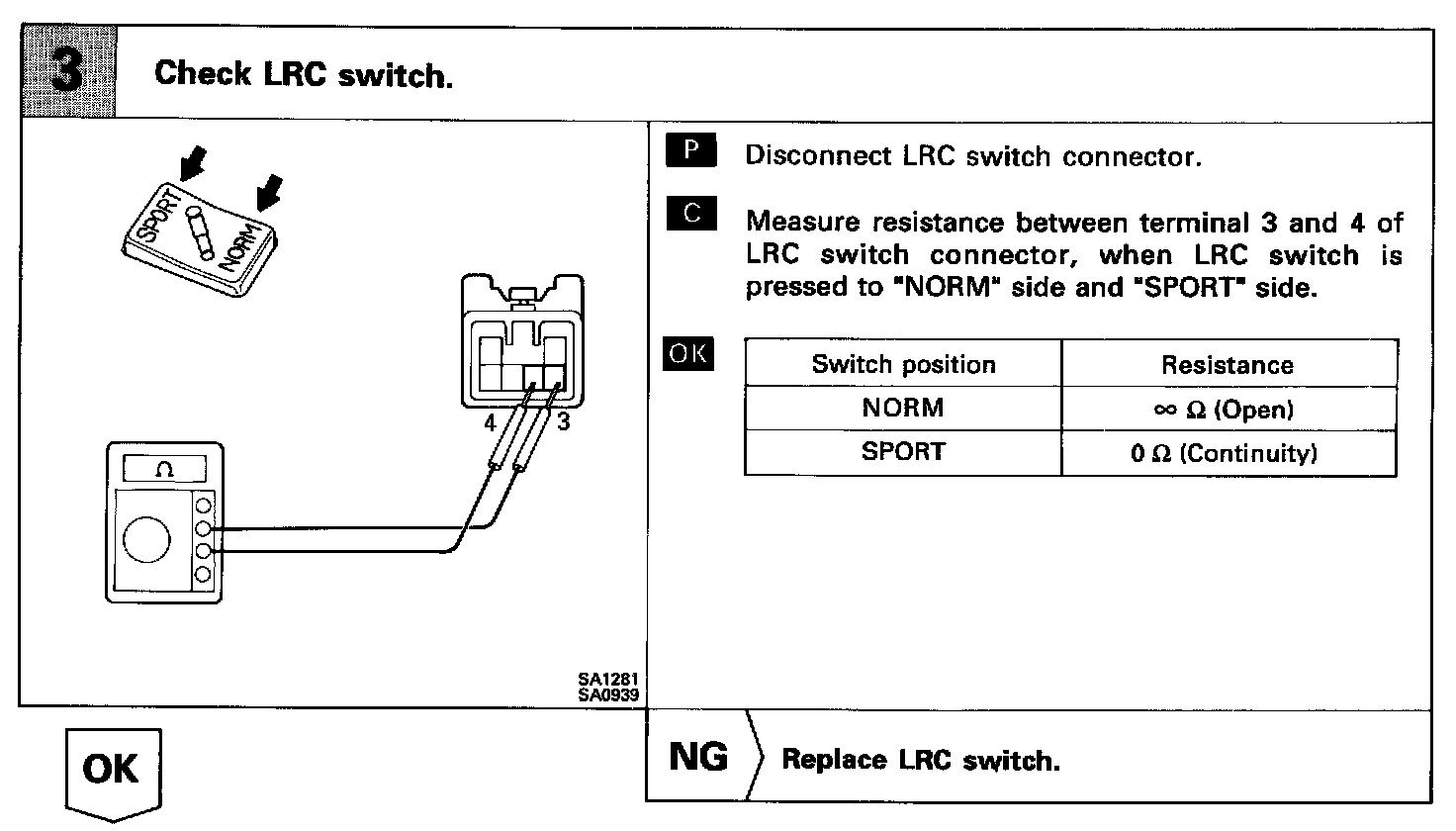

Step 3:

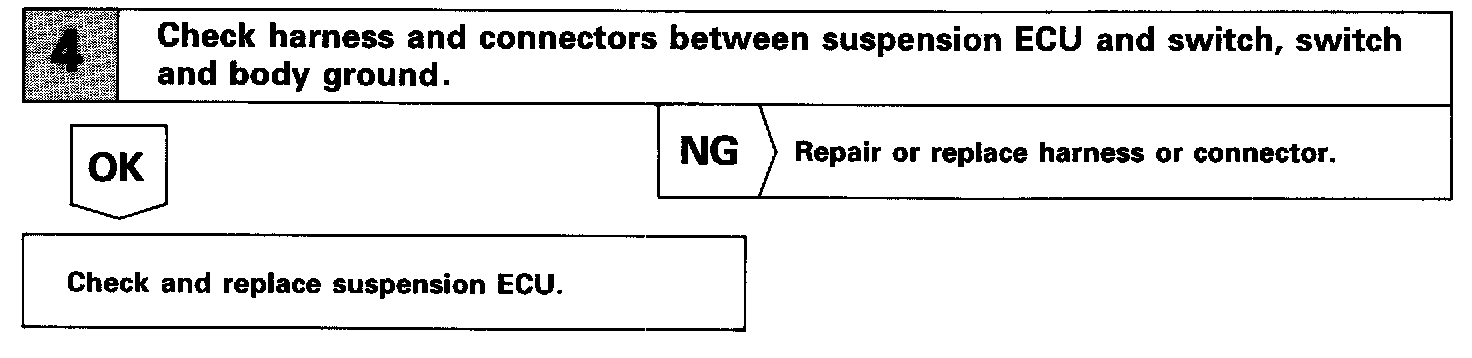

Step 4:

INSPECTION PROCEDURE
