Height Control Switch Circuit

HEIGHT CONTROL SWITCH CIRCUIT

CIRCUIT DESCRIPTION
The height control switch comes on when it is pressed to the "HIGH" side and goes off when pressed to the "NORM" side. The ECU detects the height control switch condition, and raises or lowers the vehicle height accordingly





DIAGNOSTIC CHART

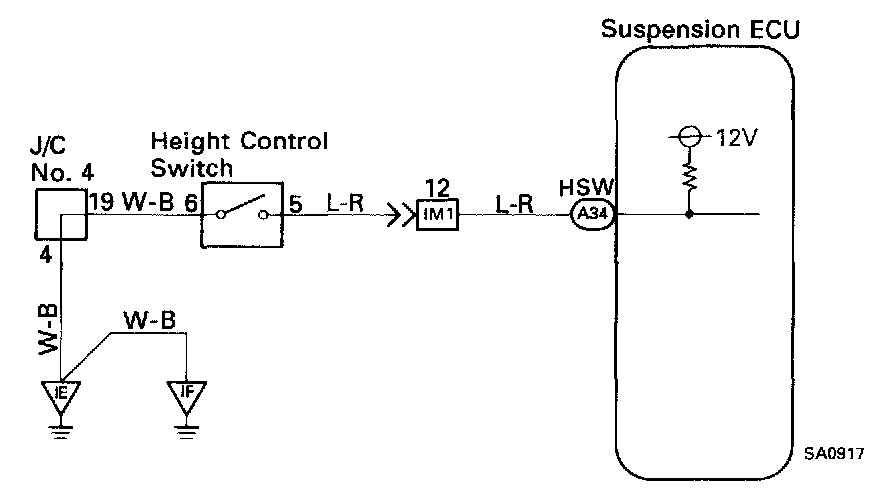

WIRING DIAGRAM





WIRING ROUTING

Step 1:

Step 2:

Step 3:

Step 4:

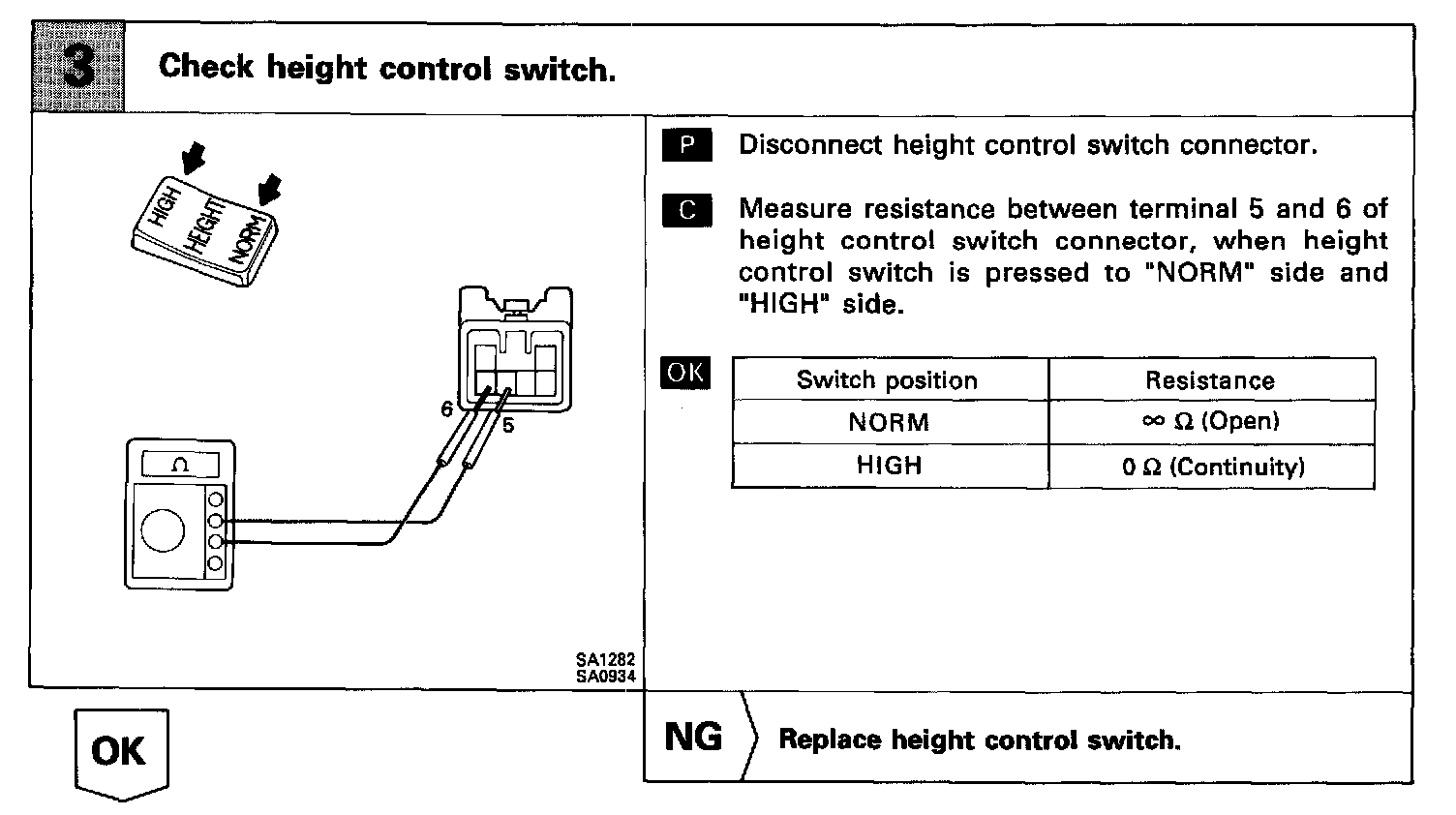

INSPECTION PROCEDURE
