Tilt Position Sensor Circuit

TILT POSITION SENSOR CIRCUIT

CIRCUIT DESCRIPTION
The tilt position is sent to the ECU as a voltage signal from the position sensor. A constant 5 V is supplied to terminal 1 of sensor. The voltage at terminal 3 varies with position and is input to the ECU as TiS.





DIAGNOSTIC CHART





WIRING DIAGRAM





WIRING ROUTING

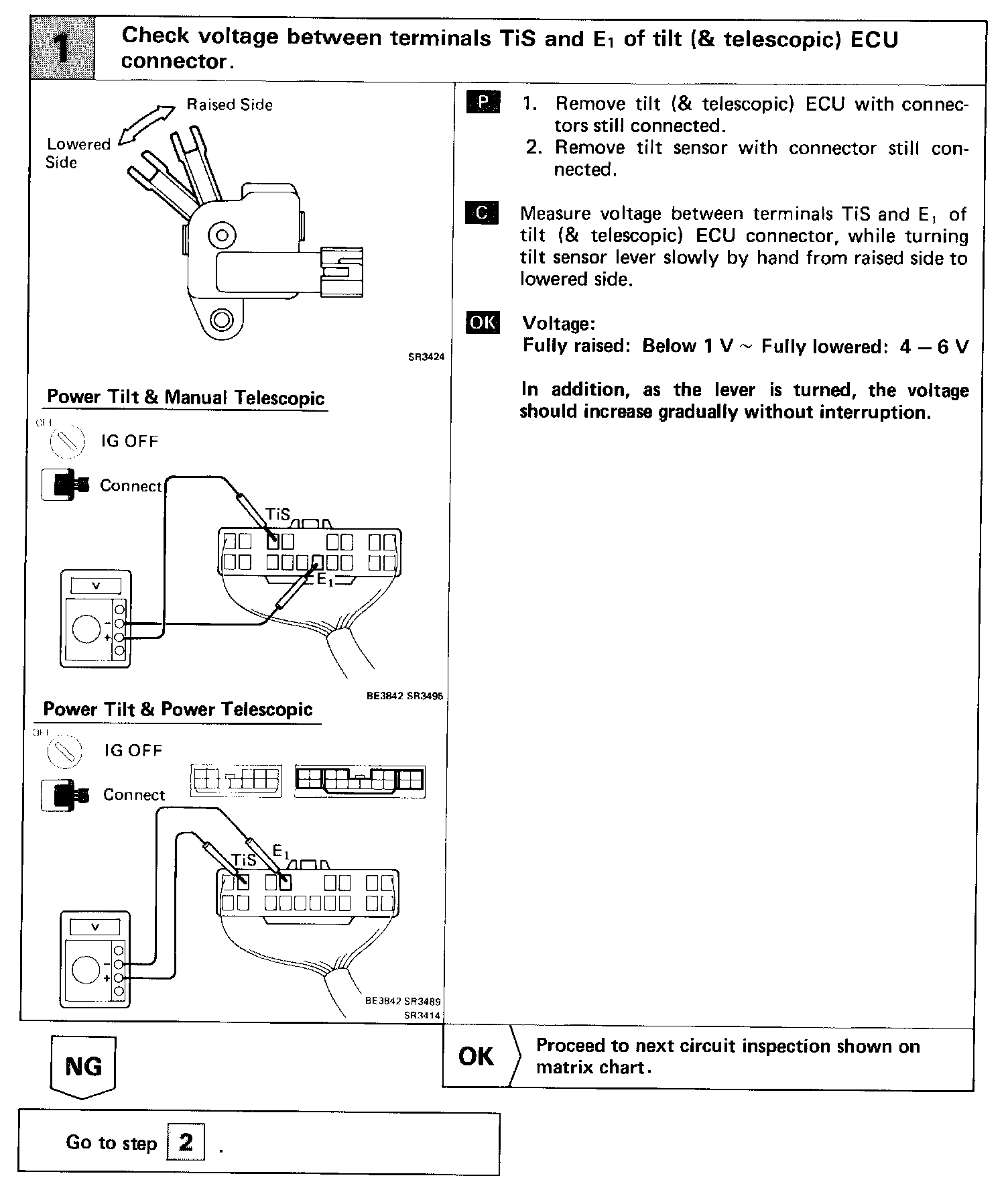

Step 1:

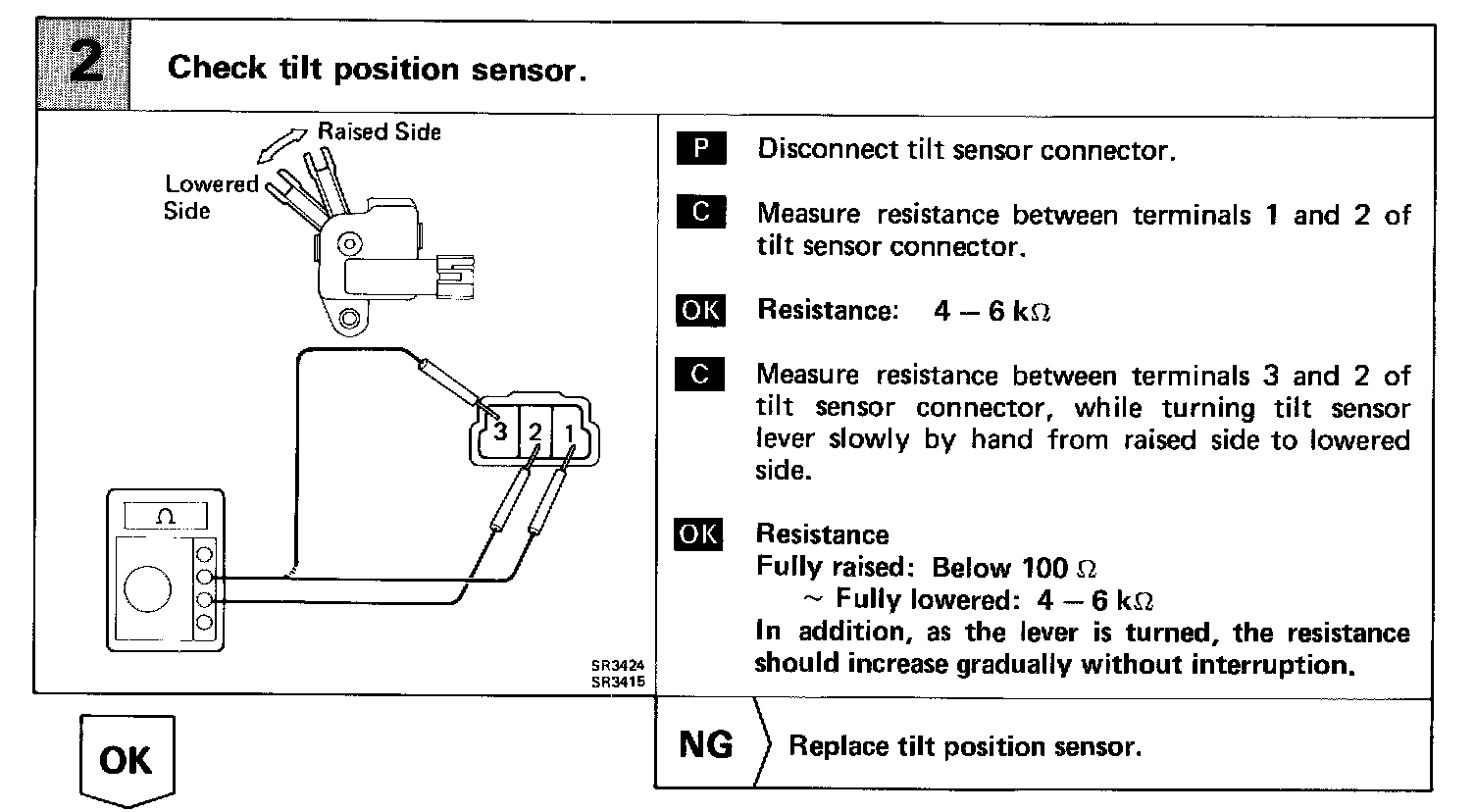

Step 2:

Step 3:

INSPECTION PROCEDURE
