Set Switch Circuit

SET SWITCH CIRCUIT

CIRCUIT DESCRIPTION
When switch 1 or 2 is pushed while SET switch is being pushed ON in memory operation, a signal is sent to the ECU to memorize the present positions of the tilt, telescopic, seat, mirror and shoulder belt anchor.





DIAGNOSTIC CHART

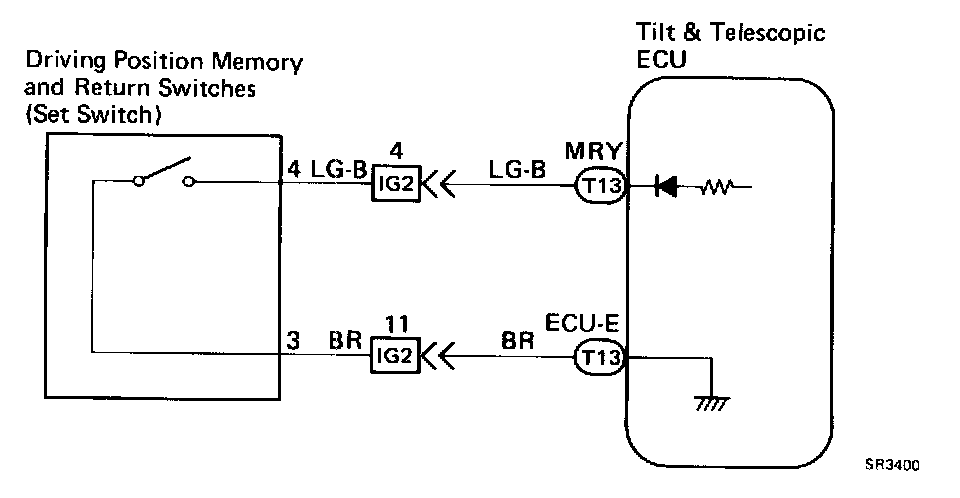

WIRING DIAGRAM

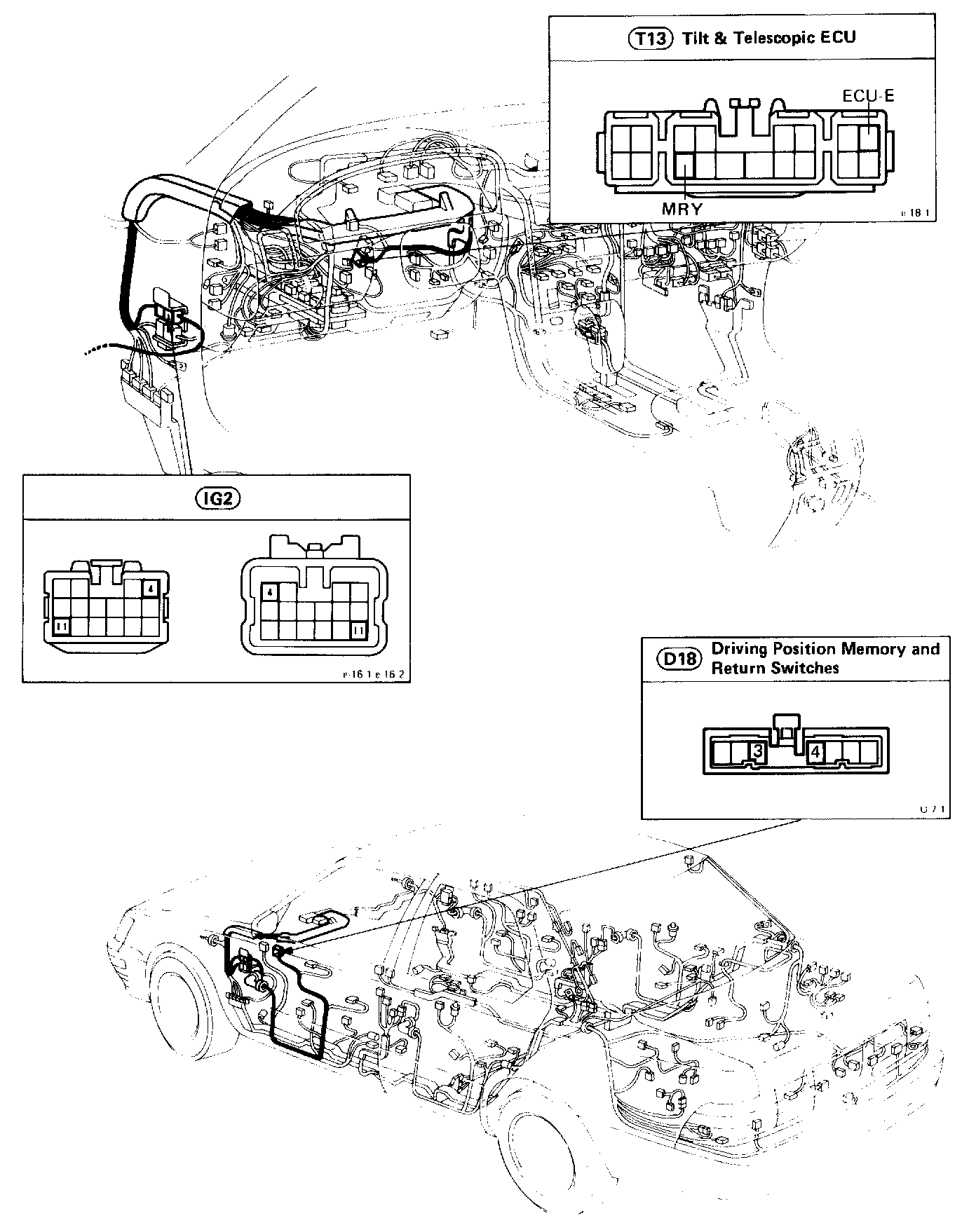

WIRING ROUTING

Step 1:

Step 2:

Step 3:

INSPECTION PROCEDURE
