Neutral Start Switch Circuit

NEUTRAL START SWITCH CIRCUIT

CIRCUIT DESCRIPTION
The neutral start switch detects whether the shift position is in P range or in another range, and sends a signal to the ECU.

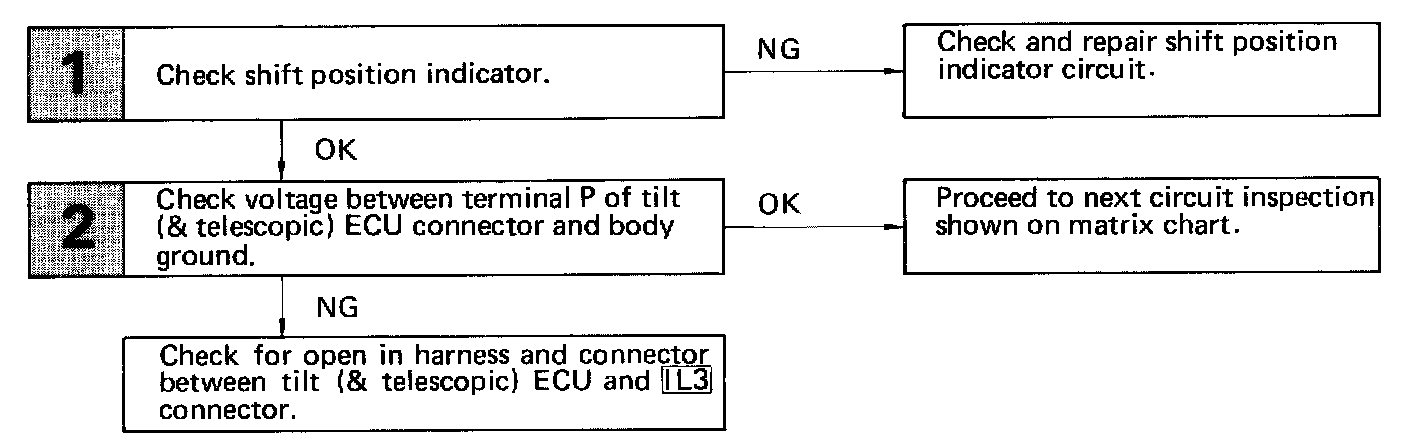

DIAGNOSTIC CHART





WIRING DIAGRAM

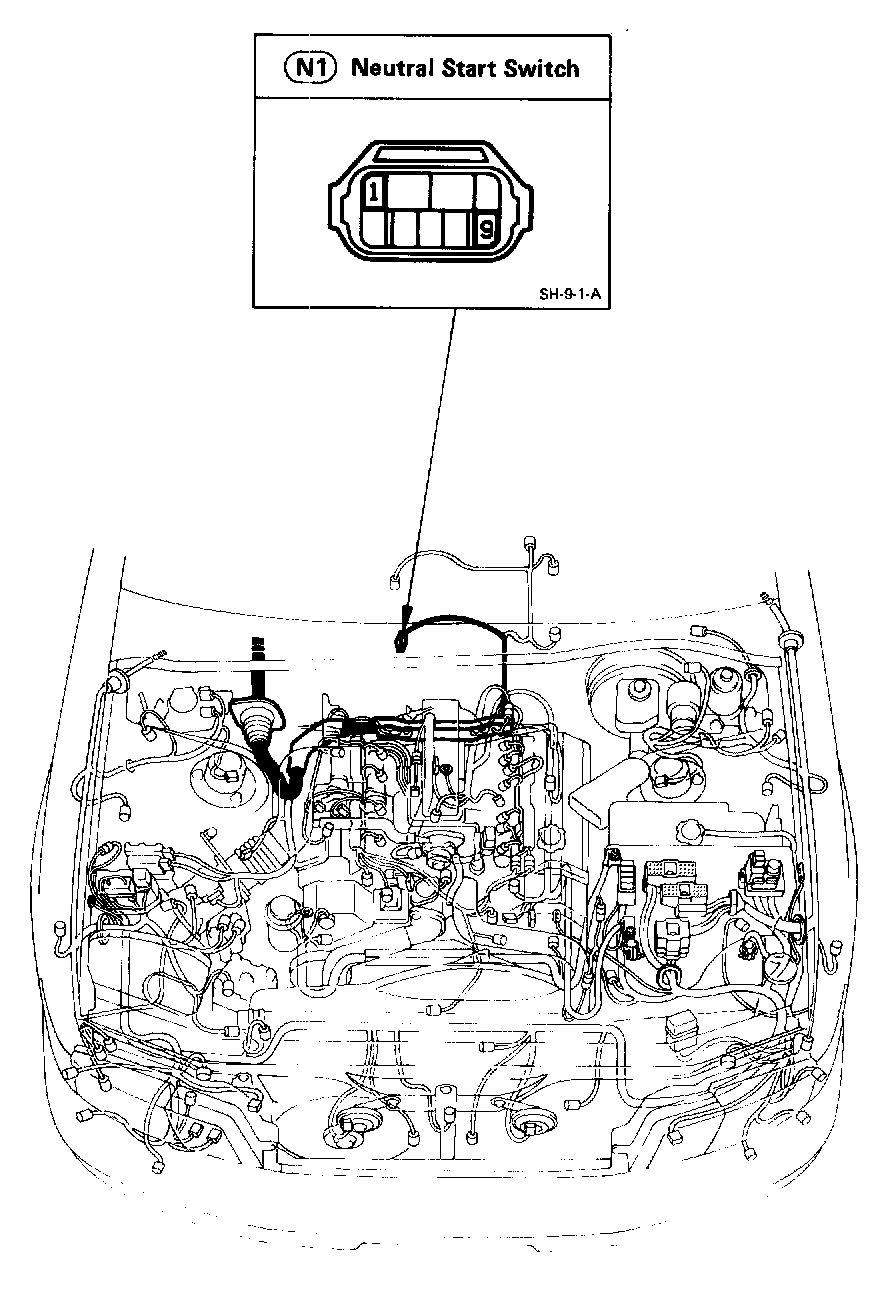

WIRING ROUTING

Step 1:




Step 2:





INSPECTION PROCEDURE
