Door Courtesy Switch Circuit

DOOR COURTESY SWITCH CIRCUIT





CIRCUIT DESCRIPTION
The ECU determines the position of the driver's door by monitoring the voltage at terminal DSW.

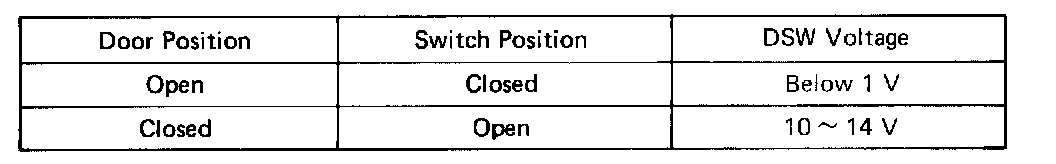

DIAGNOSTIC CHART





WIRING DIAGRAM





WIRING ROUTING

Step 1:

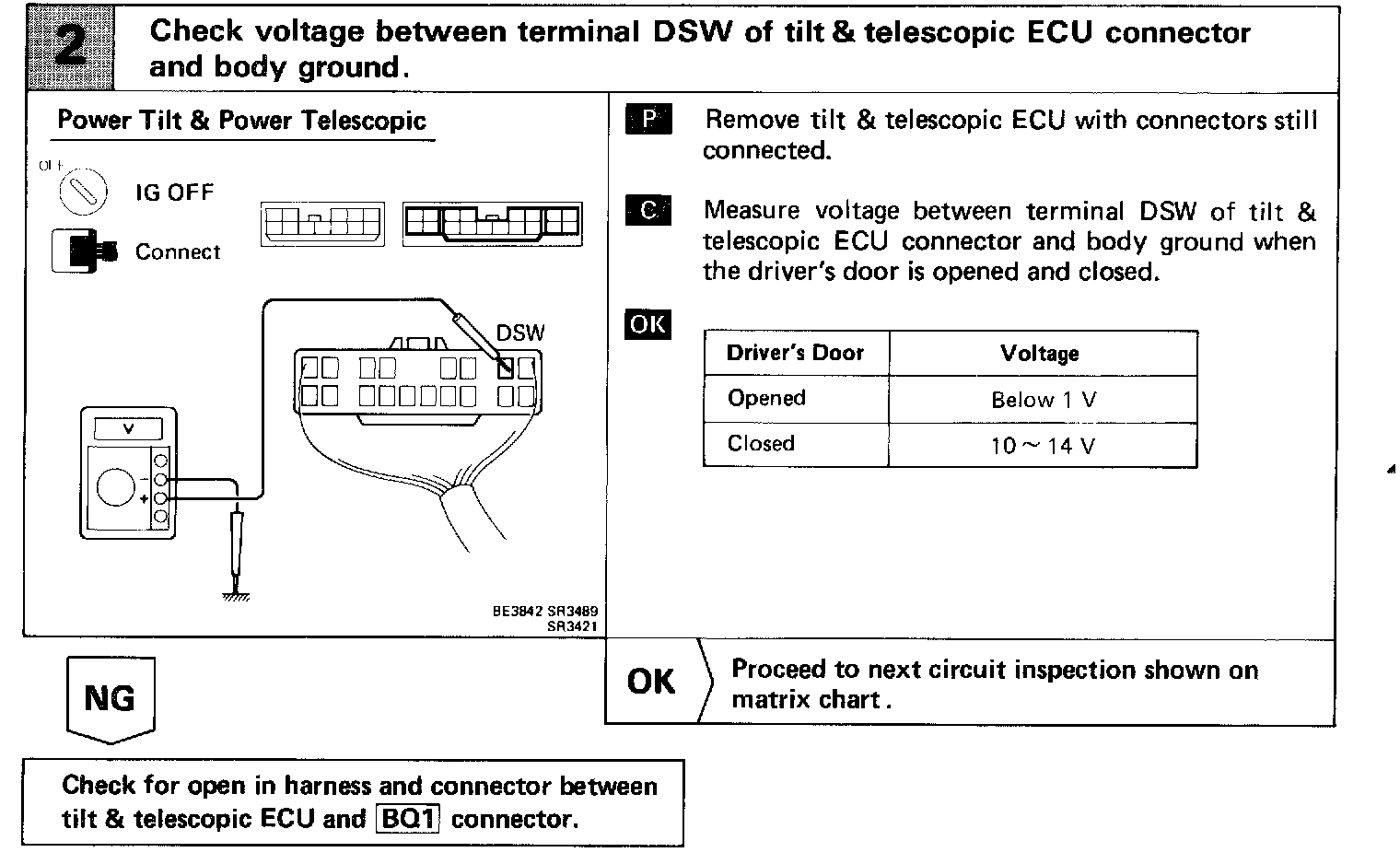

Step 2:





INSPECTION PROCEDURE
