Auto Set Switch Circuit

AUTO SET SWITCH CIRCUIT

CIRCUIT DESCRIPTION
This is the main switch for auto operation. When the switch is off, auto operation is prohibited.

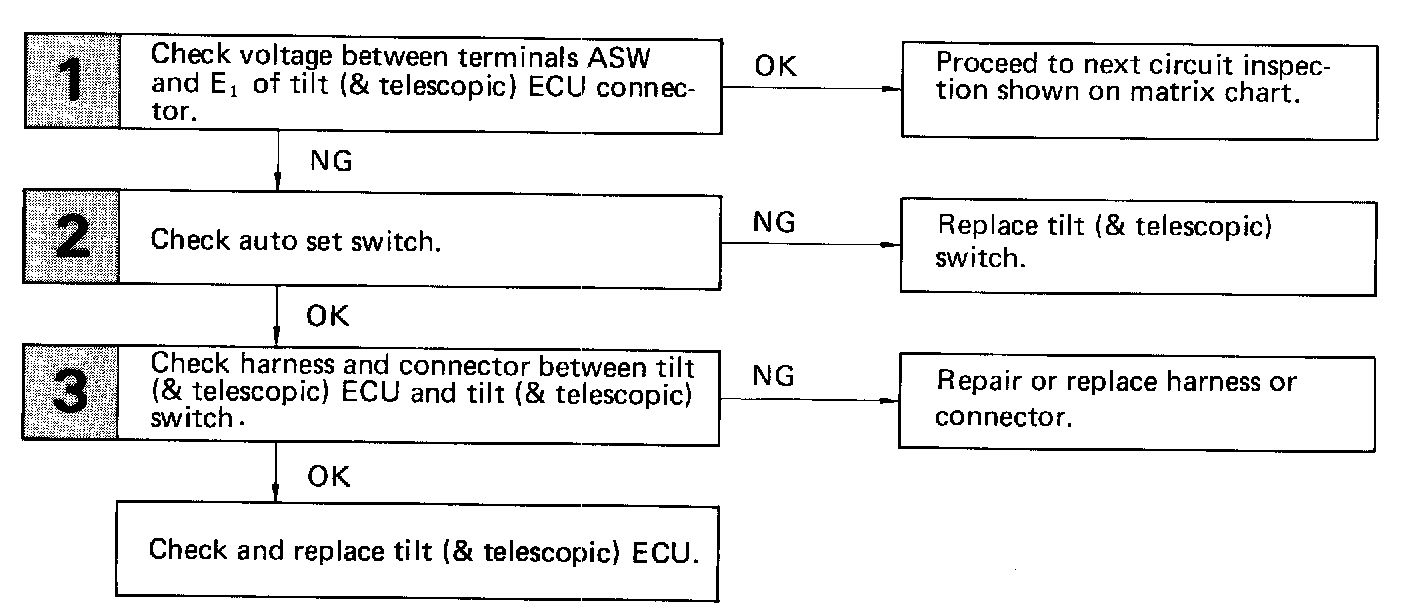

DIAGNOSTIC CHART





WIRING DIAGRAM

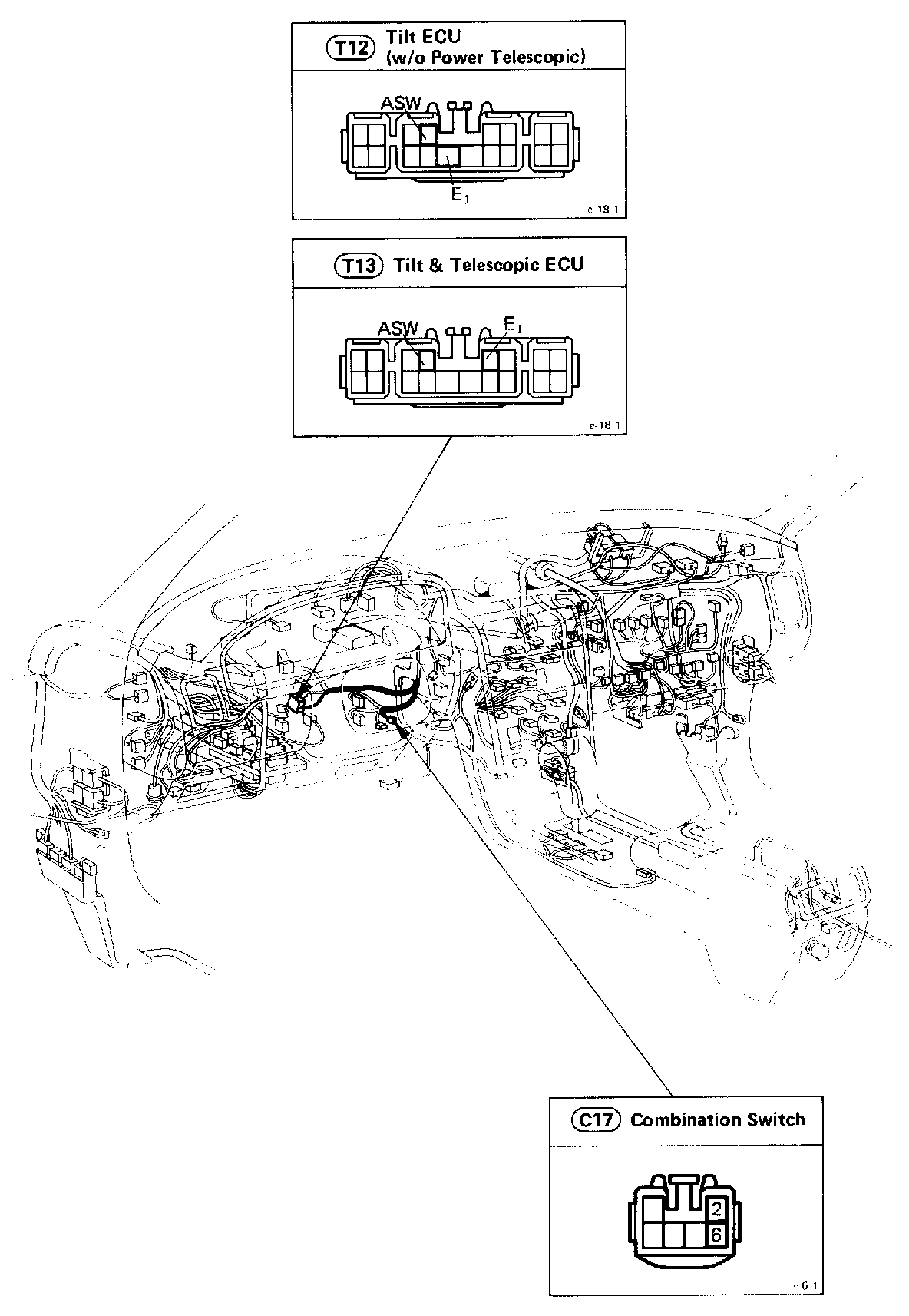

WIRING ROUTING

Step 1:




Step 2:




Step 3:





INSPECTION PROCEDURE
