Actuator Power Source Circuit

ACTUATOR POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION
This is the power source for the motor.

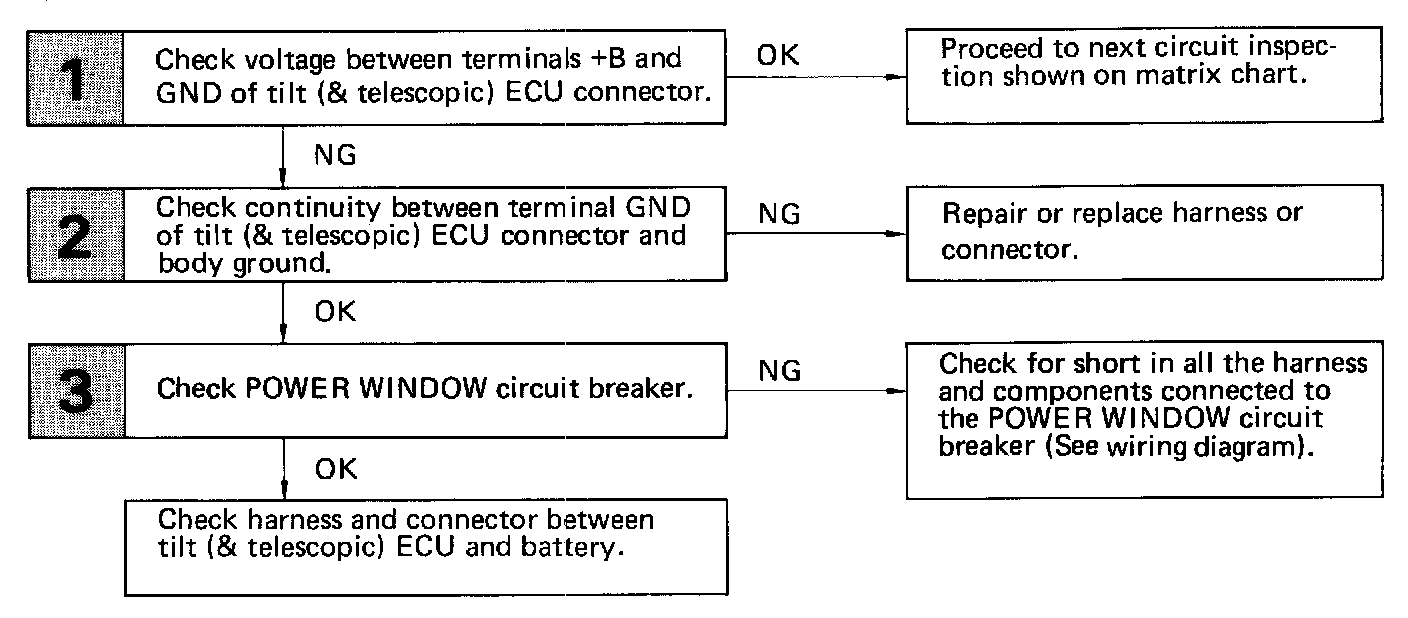

DIAGNOSTIC CHART





WIRING DIAGRAM





WIRING ROUTING

Step 1:




Step 2:




Step 3:





INSPECTION PROCEDURE
