Fuel Pressure Control Circuit

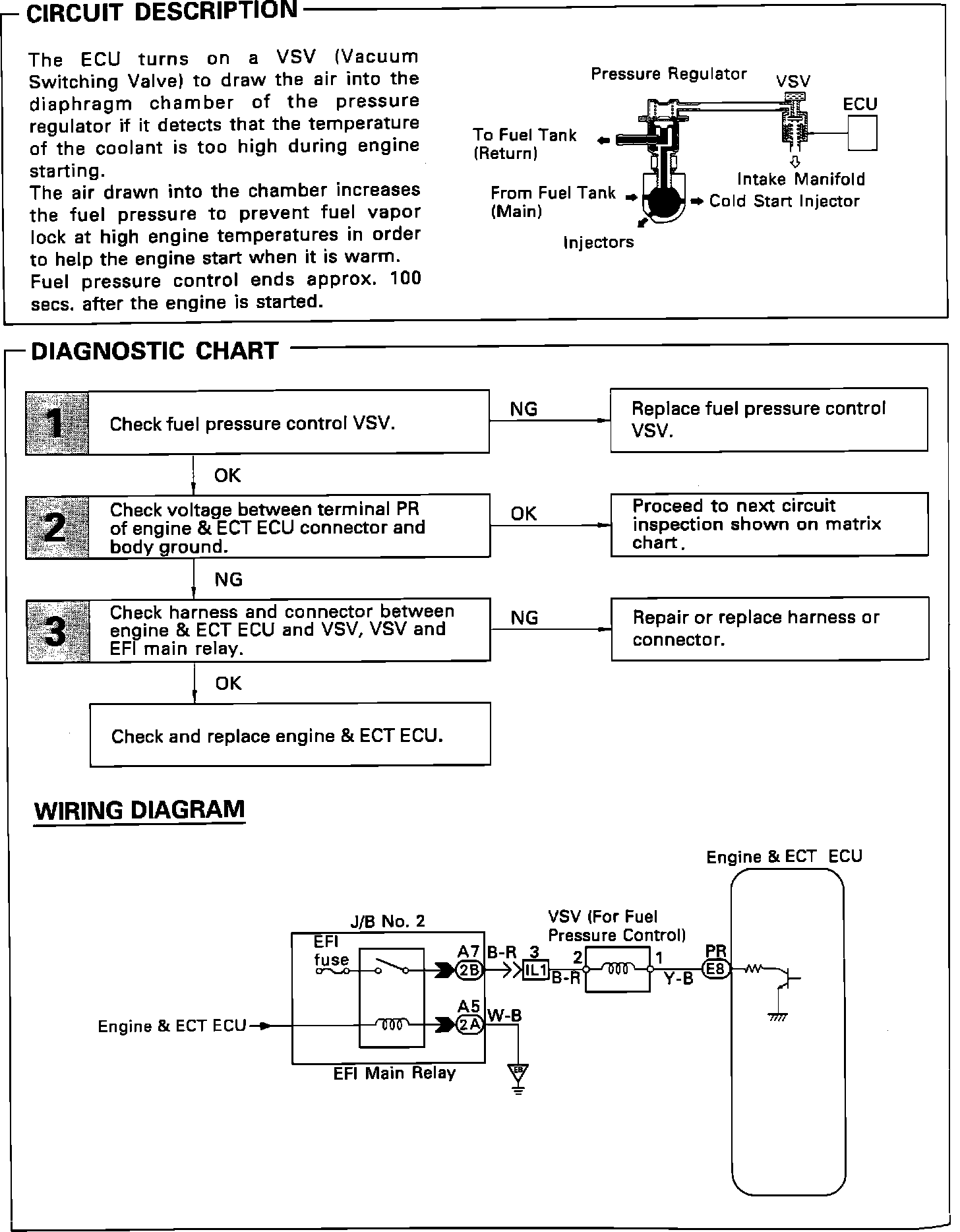

Fig. 41 Fuel Pressure Control VSV Circuit Diagnosis (Part 1 Of 3):

Fig. 41 Fuel Pressure Control VSV Circuit Diagnosis (Part 2 Of 3):

Fig. 41 Fuel Pressure Control VSV Circuit Diagnosis (Part 3 Of 3):
