EGR Valve: Service and Repair

EGR Vacuum Hoses:

- Disconnect vacuum hoses from EGR.

Water Bypass Hoses:

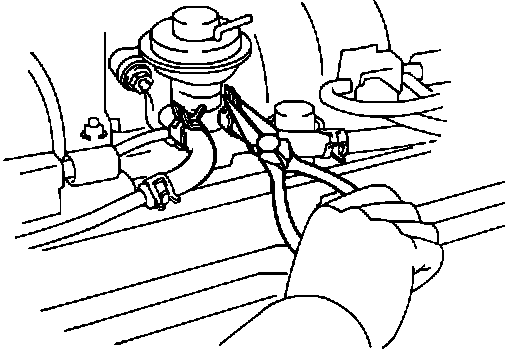

- Remove No. 3 and No. 4 water bypass hoses.

EGR Valve:

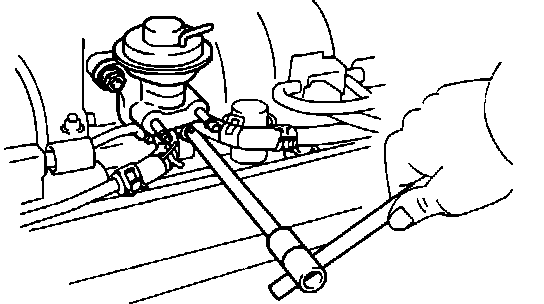

- Remove mounting nuts, and remove valve and gasket.
- Reverse procedure to install.

EGR Valve - 13 ft.lb (18 Nm)
