Fuel Injector Circuit

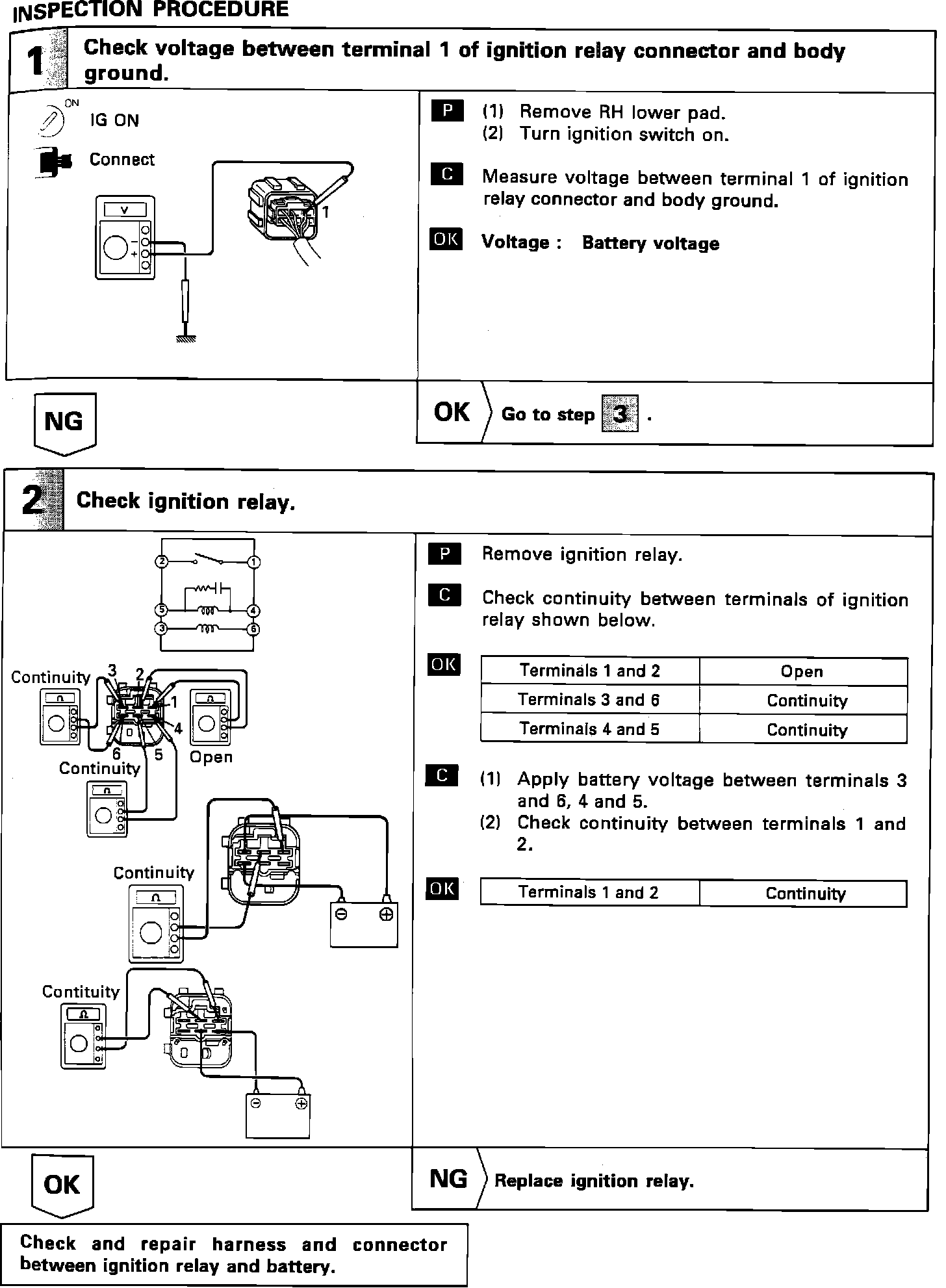

Fig. 36 Injector Circuit Diagnosis (Part 1 Of 3):





Fig. 36 Injector Circuit Diagnosis (Part 2 Of 3):





Fig. 36 Injector Circuit Diagnosis (Part 3 Of 3):
