Cranking Signal: Testing and Inspection

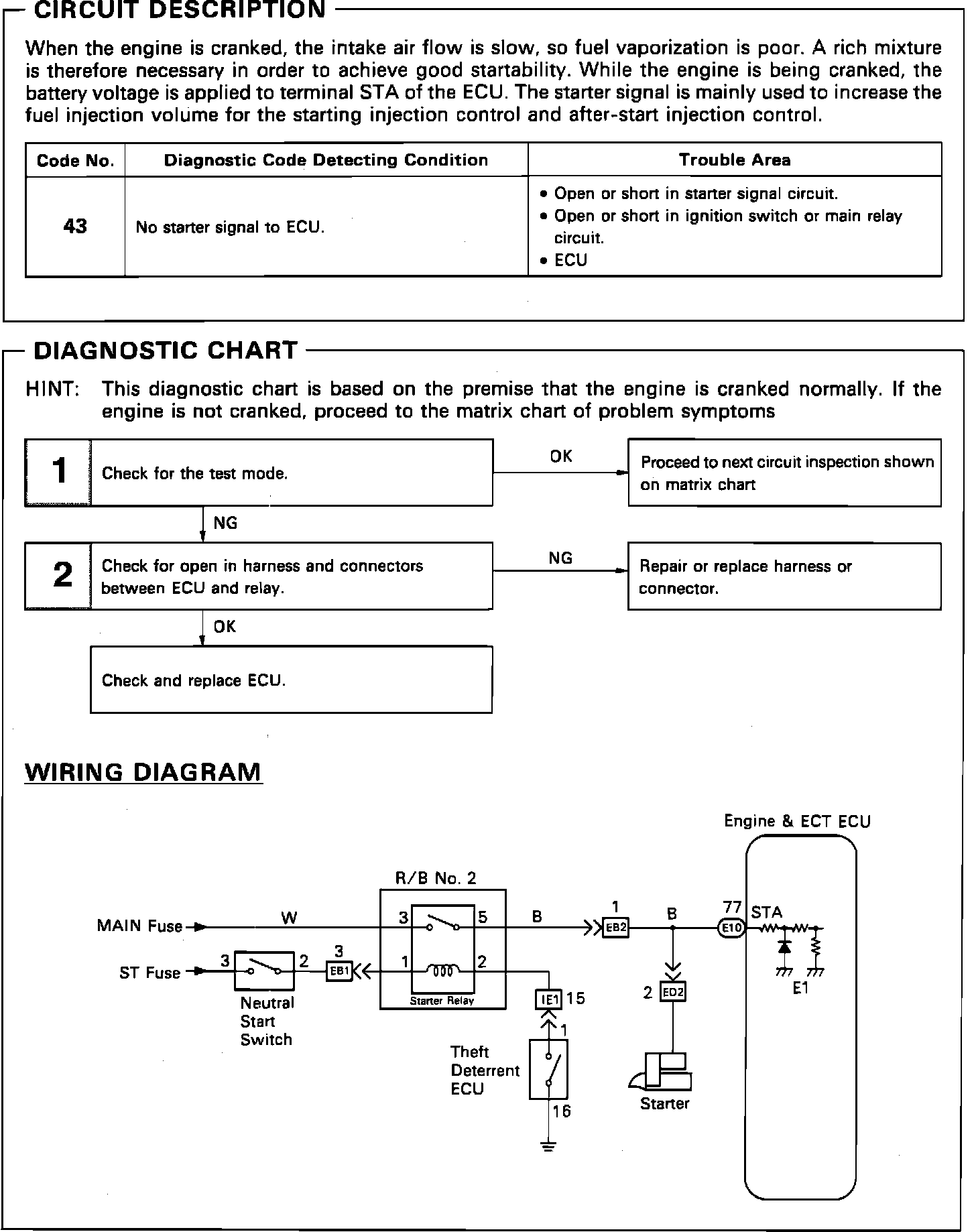

Fig. 24 Diagnostic Code 43 (Starter Signal, Part 1 Of 2):



Fig. 24 Diagnostic Code 43 (Starter Signal, Part 2 Of 2):
