Center Mounted Brake Lamp: Service and Repair

High Mount Stop Light
REPLACEMENT OF HIGH MOUNT STOP LIGHT
1. REMOVE HIGH MOUNT STOP LIGHT
(a) Disconnect negative (-) terminal from the battery.

CAUTION: Work must be started after approx.20 seconds or longer from the time the ignition switch is turned to the "LOCK" position and negative (-) terminal cable is disconnected from the battery.

(b) Separate the woofer speaker cover from package tray trim.
(c) Disconnect connector.
(d) Remove woofer speaker cover.

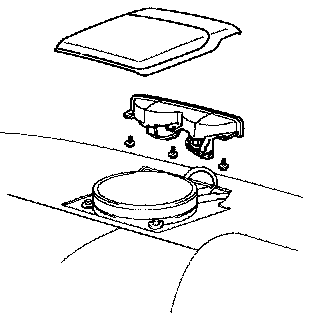

(e) Remove three screws and separate the high mount stop light from woofer speaker cover.

2. INSTALL HIGH MOUNT STOP LIGHT
For installation, follow the removal procedure in reverse.
