Max Cool Damper Control Servomotor Circuit

MAX. COOL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

The max. cool servomotor changes the positions of the max. cool damper in 3 positions by the signals from the ECU. When the AUTO switch is no, and the vent is in (FACE) position, the air conditioner control assembly controls the damper to open, half open and closed positions. The damper is kept closed at all times while in the (FOOT) or (BI-LEVEL) position.





DIAGNOSTIC CHART





WIRING DIAGRAM





WIRING ROUTING

Step 1:

Step 2:

Step 3:

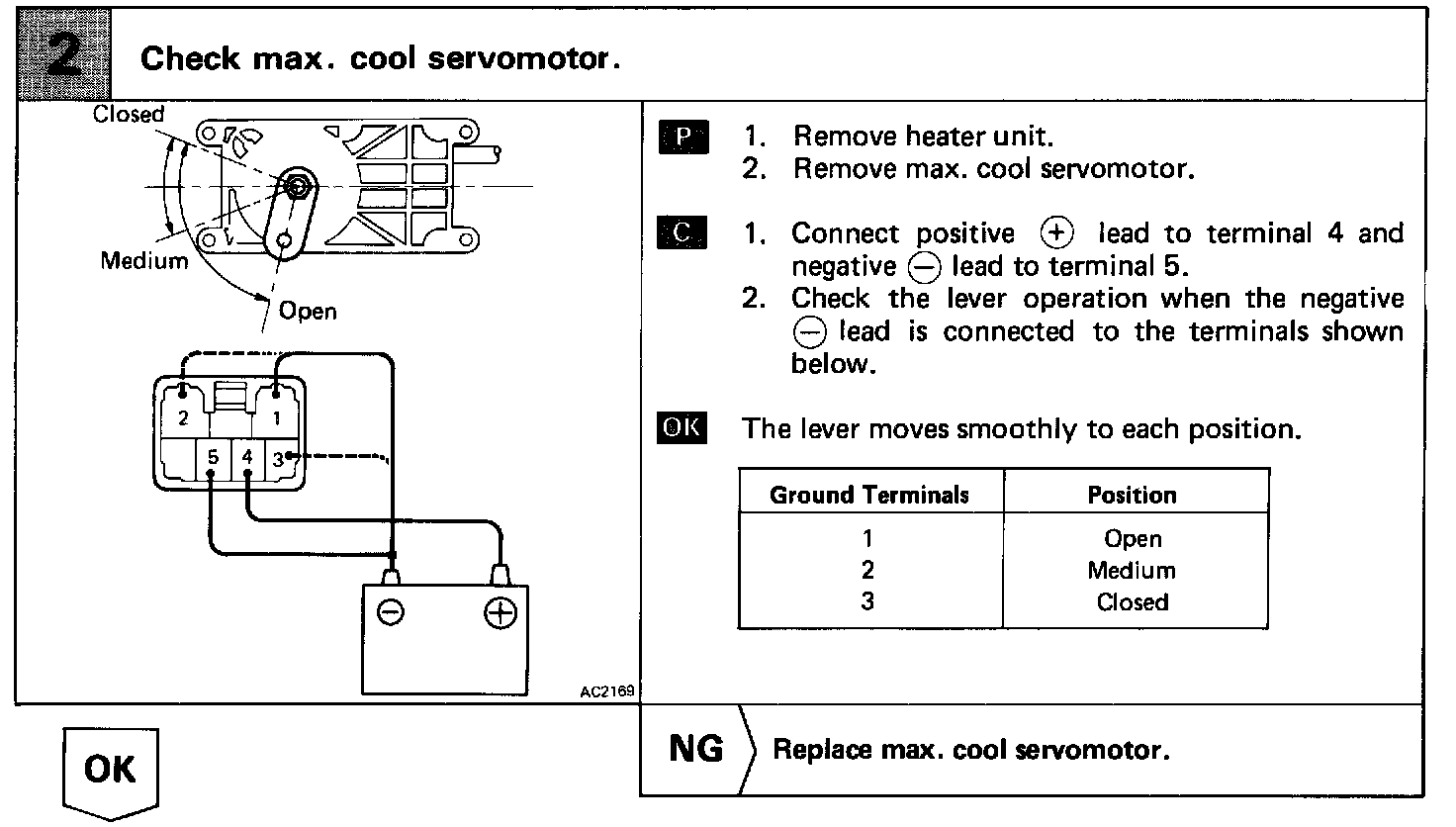

INSPECTION PROCEDURE
