Home >> Lexus >> 1990 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Antilock Brake (ABS) System

Antilock Brake (ABS) System

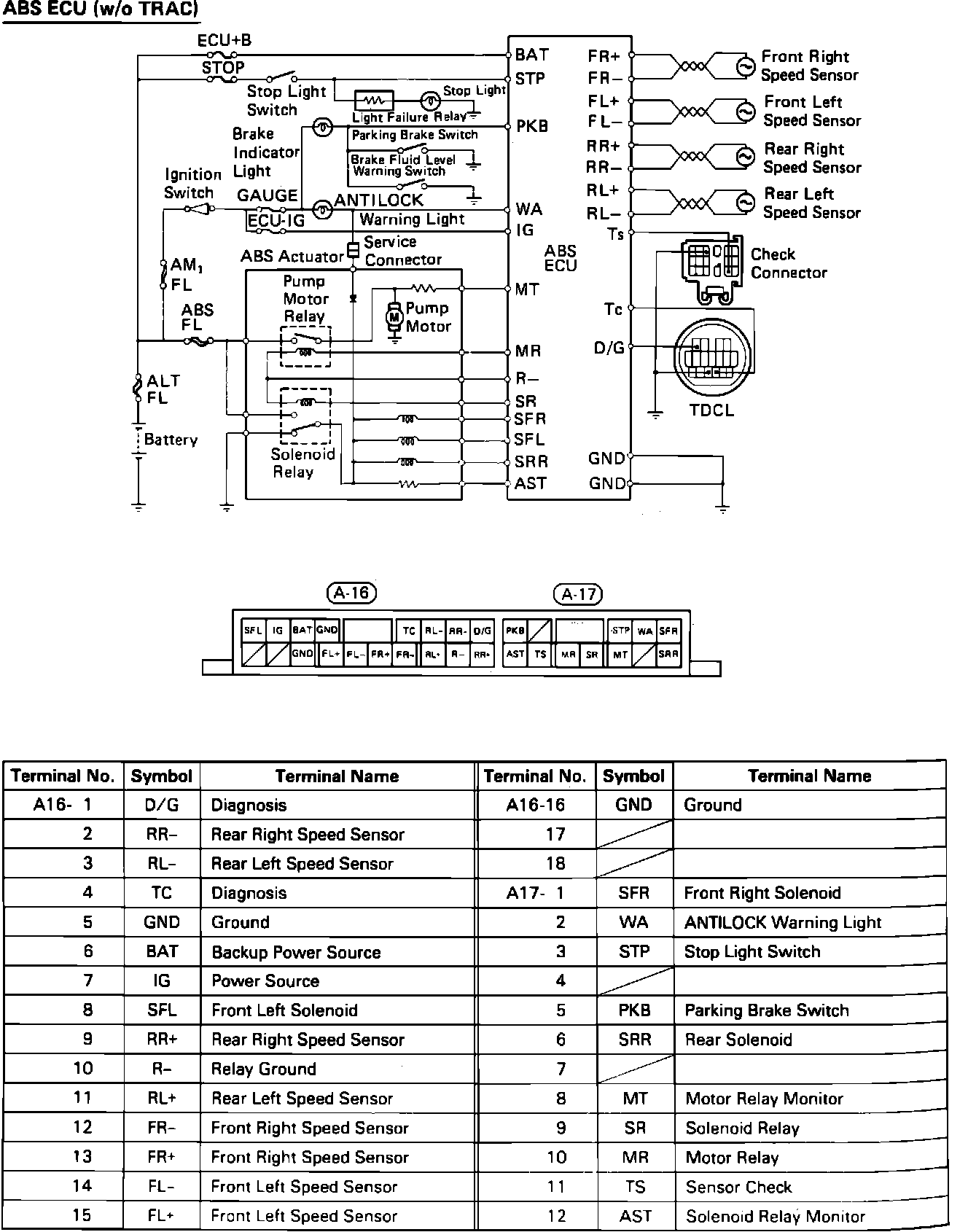

Fig. 10 Wiring Circuit & Pin Identification. Less TRAC:

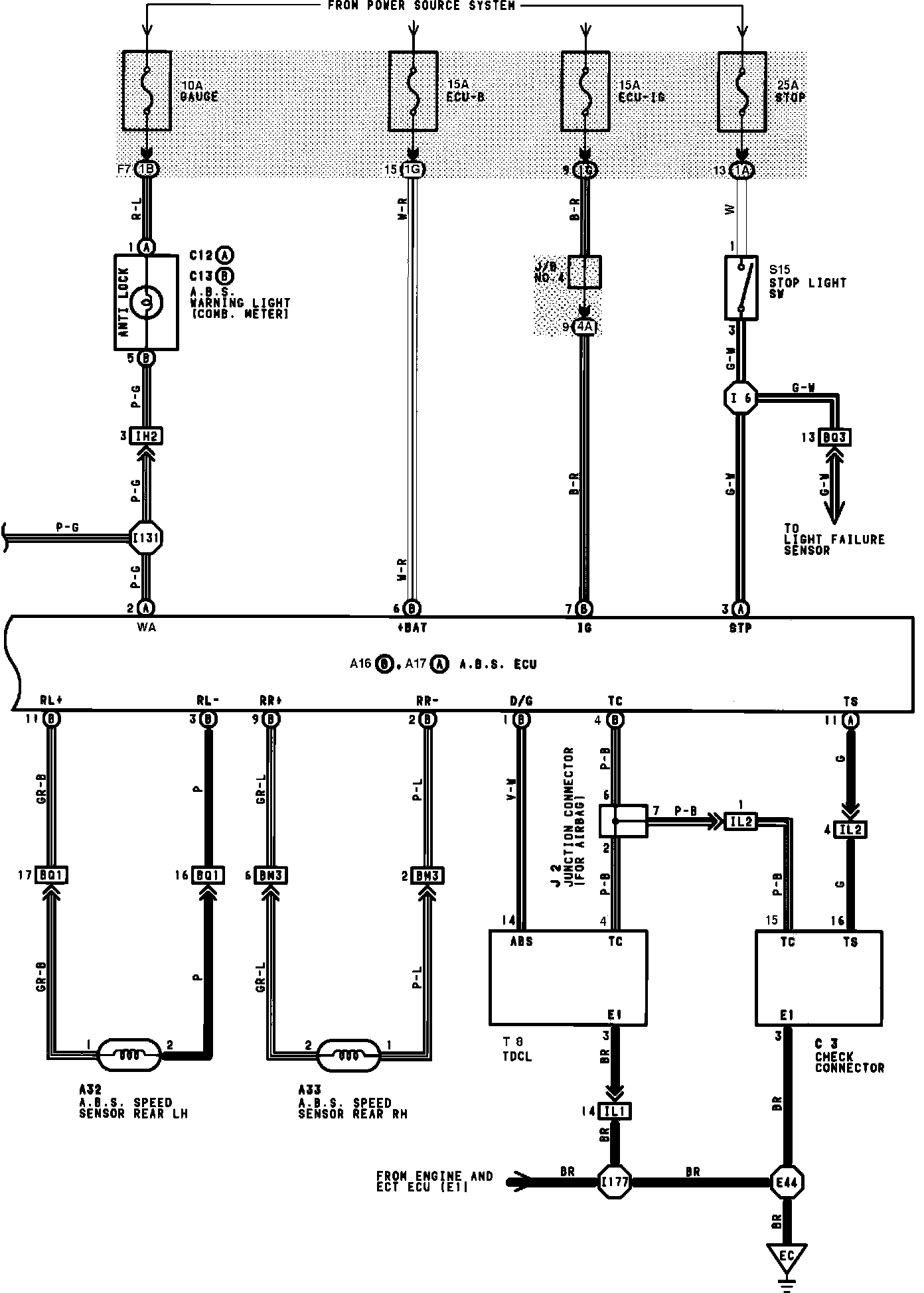

Anti-Lock Brakes:

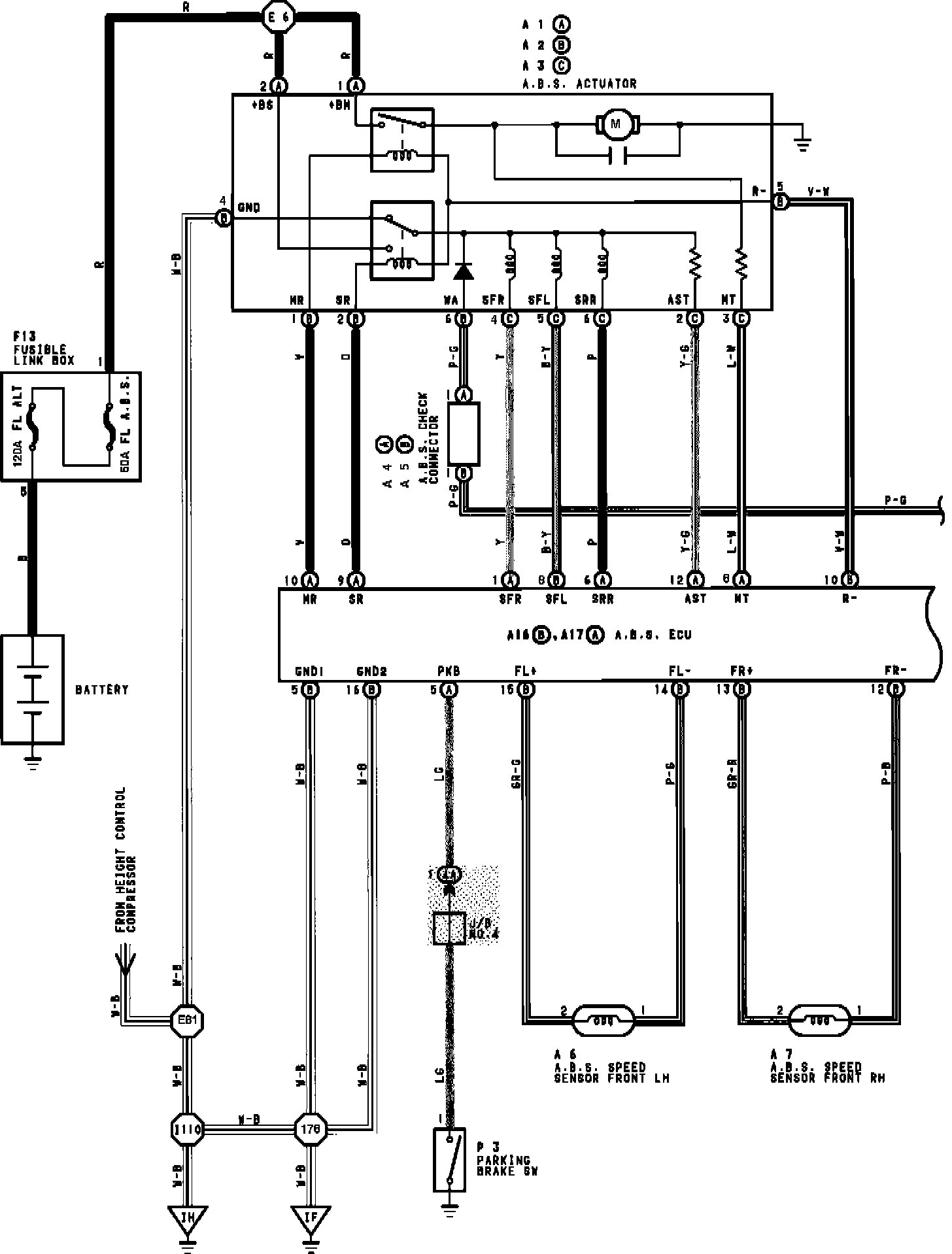

Anti-Lock Brakes:
