Brake Proportioning/Combination Valve: Service and Repair

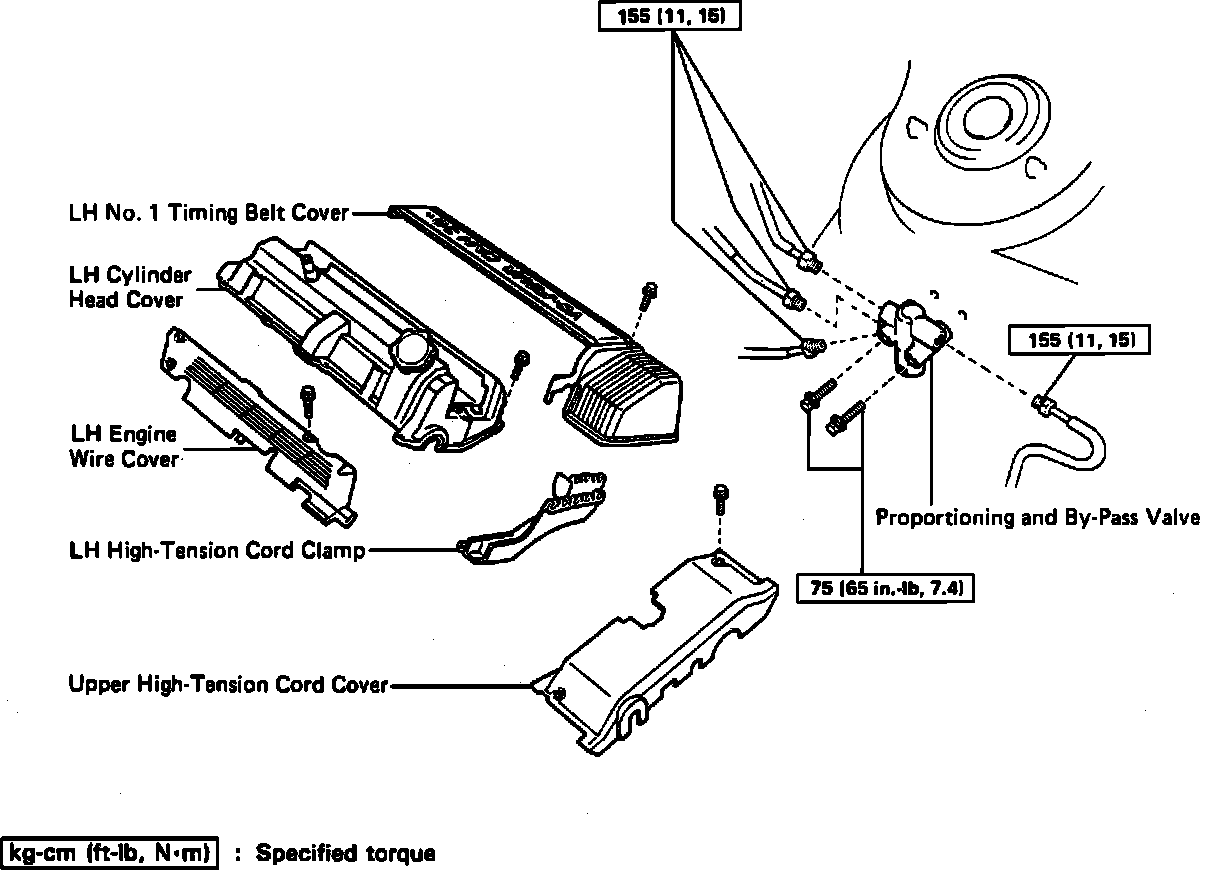

Fig. 10 P & B Valve Removal:

For P and B valve replacement, refer to Fig. 10. Use brake line removal tool 09751-36011, or equivalent, to remove and install brake lines. Torque lines to 11 ft. lbs.
