TRAC Indicator Light Circuit
TRAC Indicator Light CircuitCIRCUIT DESCRIPTION
The TRAC indicator blinks during TRAC operation.
This indicator is also used for warnings when the trouble occurs and for displaying diagnostic codes.
DIAGNOSTIC CHART
Perform troubleshooting in accordance with flow chart instructions for each trouble symptom.
TRAC Indicator Light does not Light Up
Go to combination meter troubleshooting.
TRAC Indicator light remains ON

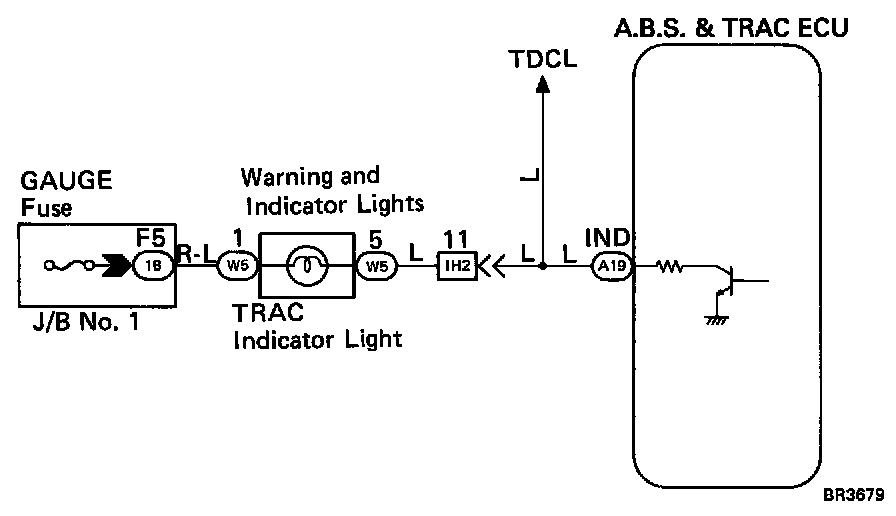

Wiring Diagram:

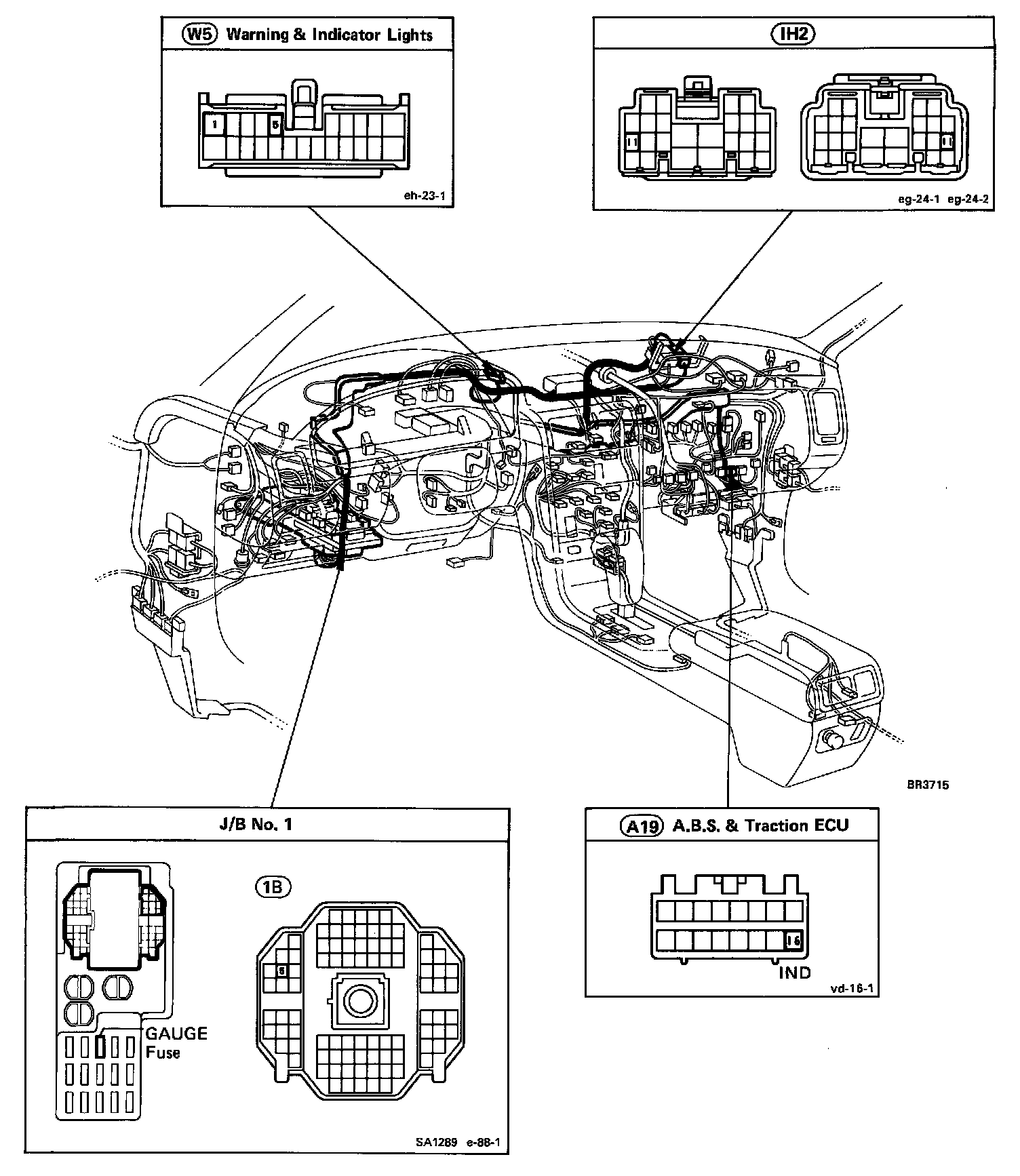

Wiring Routing:
