Neutral Start Switch Circuit

Neutral Start Switch Circuit

CIRCUIT DESCRIPTION
The neutral start switch sends the appropriate signals to the ECU when the transmission is shifted into the "P" or "N" range.





DIAGNOSTIC CHART

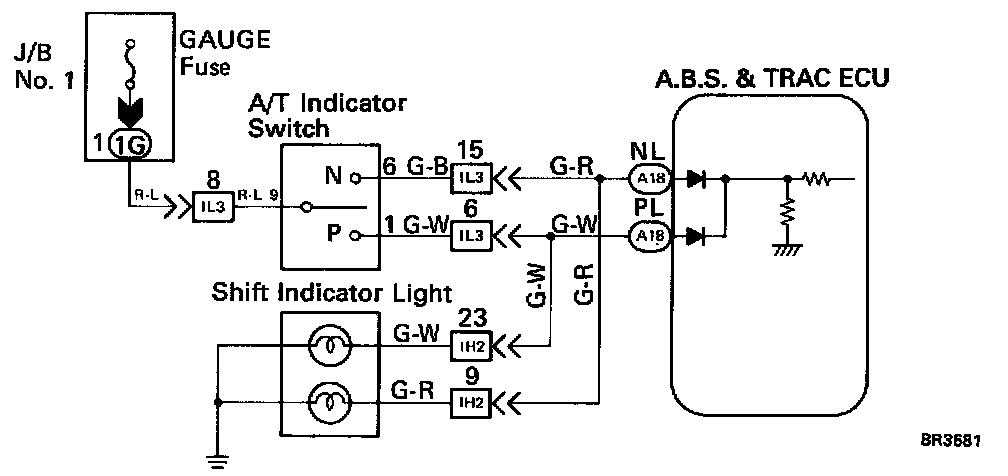

Wiring Diagram:

Wiring Routing:

Step 1:

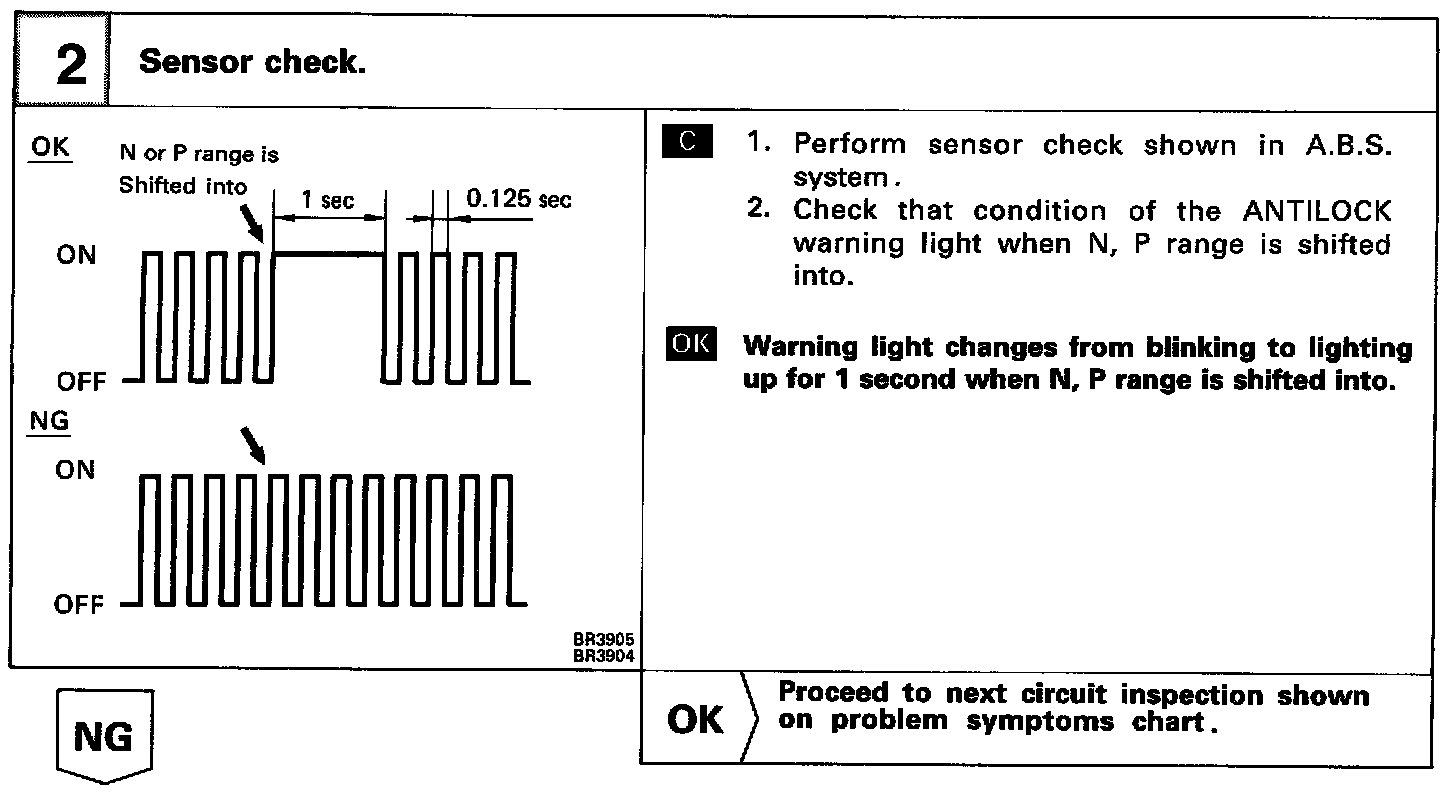

Step 2:

Step 3:

INSPECTION PROCEDURE
