Parking Brake Switch Circuit
Parking Brake Switch CircuitCIRCUIT DESCRIPTION
The parking brake switch senses whether the parking brake pedal is depressed or released, and send the signal to the ECU.
DIAGNOSTIC CHART

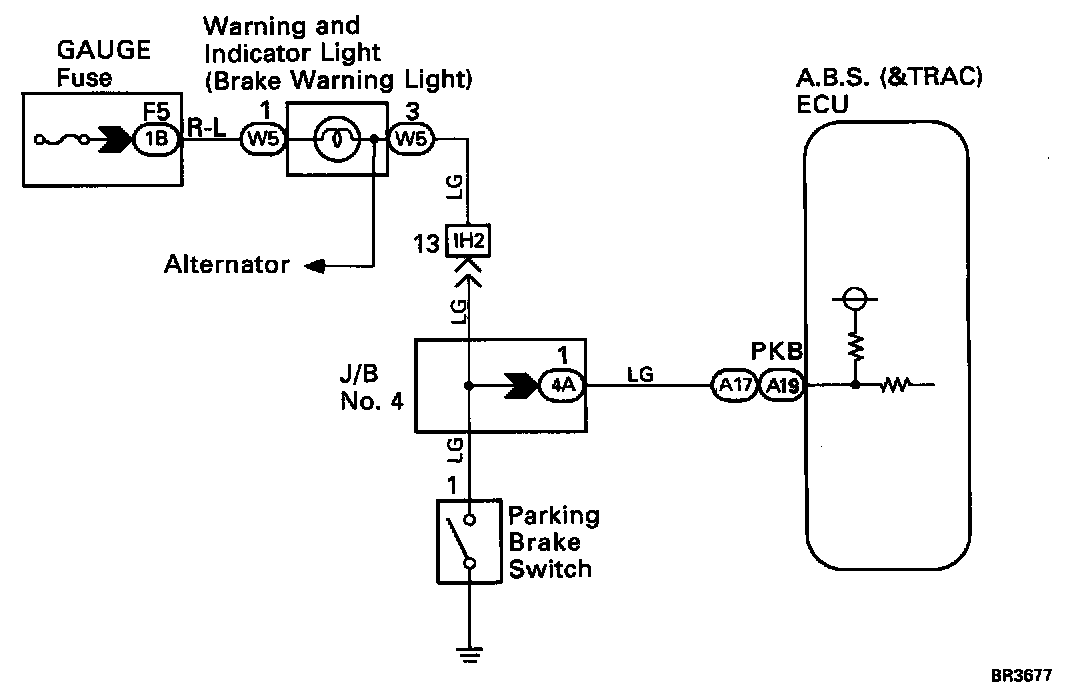

Wiring Diagram:
Wiring Routing:

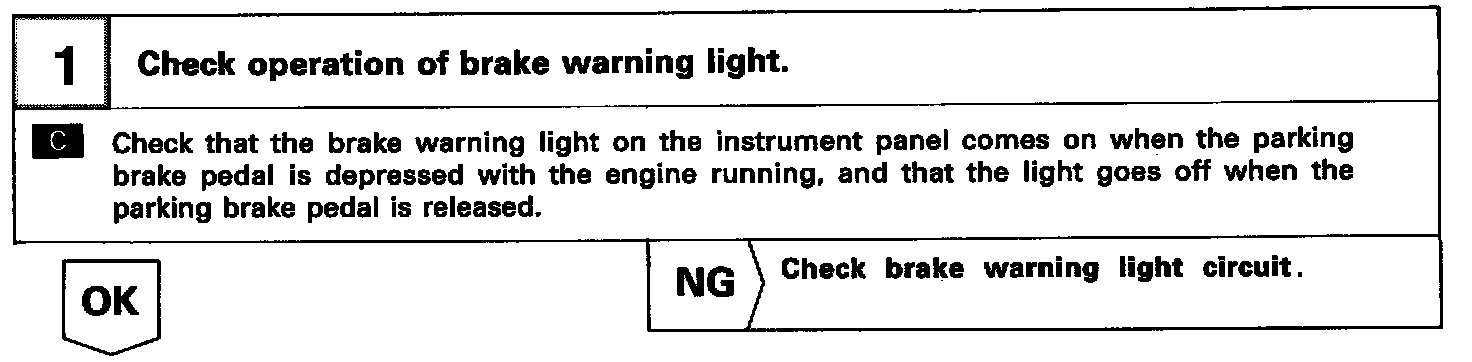

Step 1:

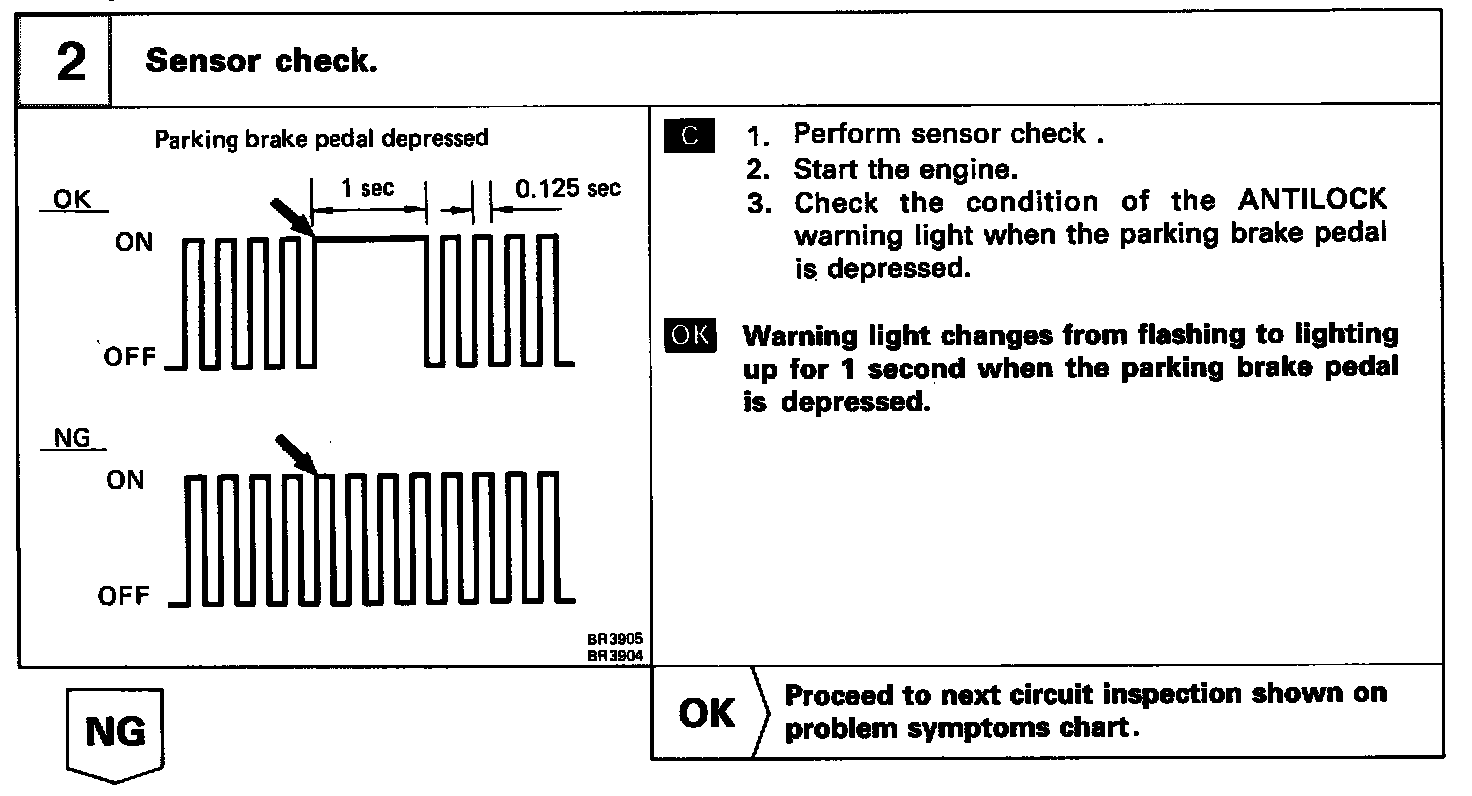

Step 2:
Step 3:
INSPECTION PROCEDURE
