ABS Warning Light Circuit

ANTILOCK Warning Light Circuit

CIRCUIT DESCRIPTION
If the ECU detects trouble, it lights the ANTILOCK warning light while at the same time prohibiting A.B.S. control. At this time, the ECU records a diagnostic code in memory. When the A.B.S. service connector is disconnected and the respective terminals of TDCL is connected, it causes the ANTILOCK warning light to flash, displaying the diagnostic code.

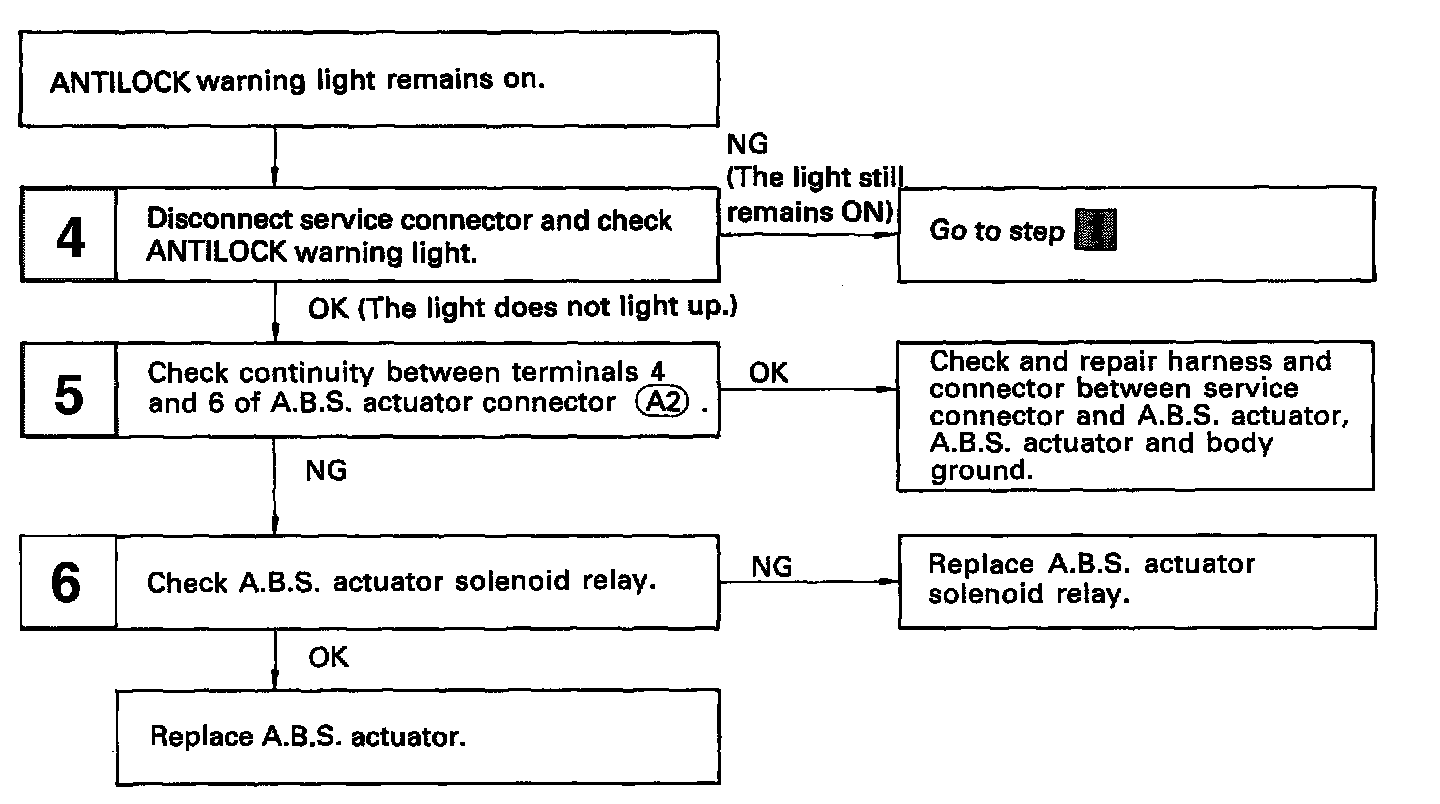

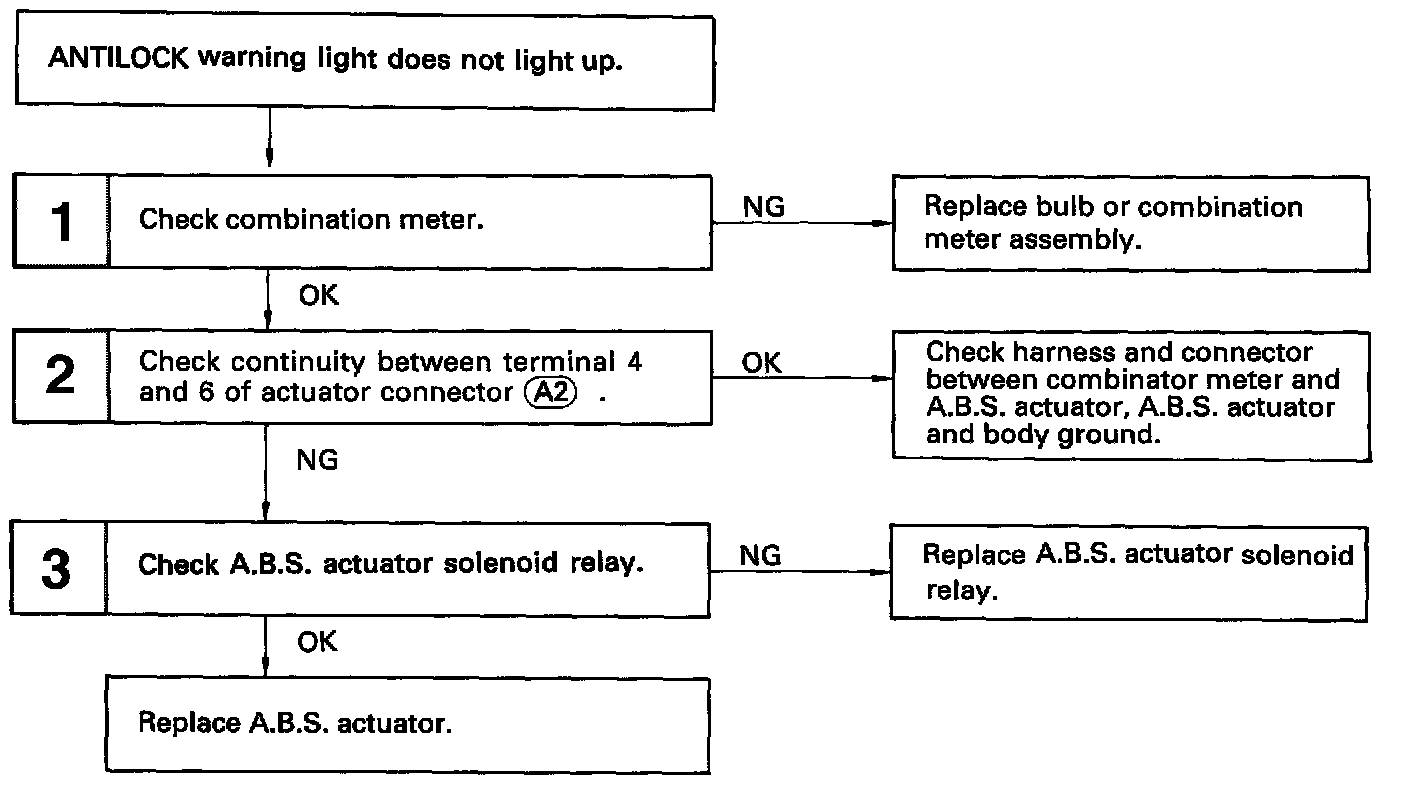

DIAGNOSTIC CHART
Perform troubleshooting in accordance with the chart above for each trouble symptom.

Wiring Diagram:

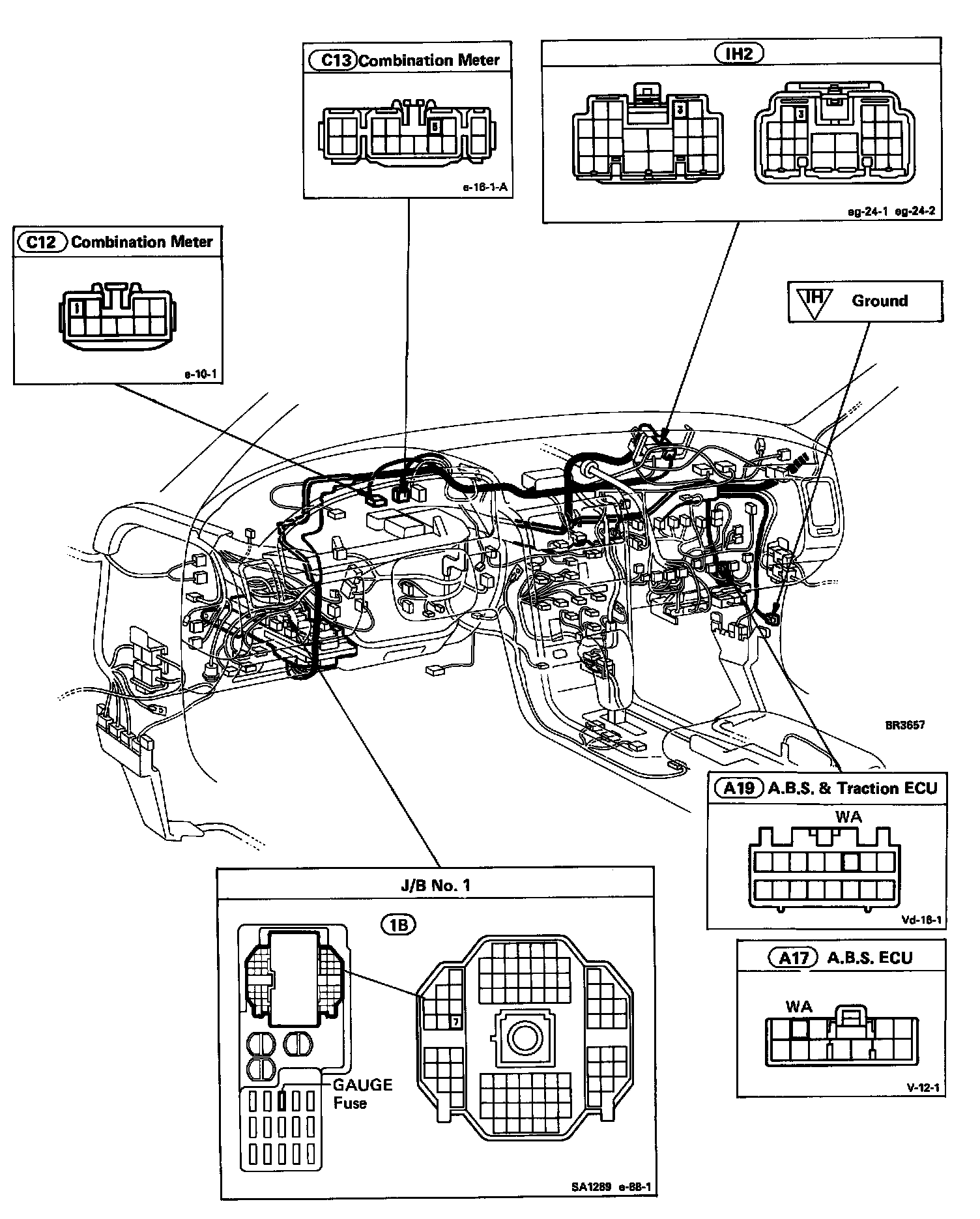

Wiring Routing:

Wiring Routing:

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

Step 7:

Step 8:

INSPECTION PROCEDURE
