DTC 46

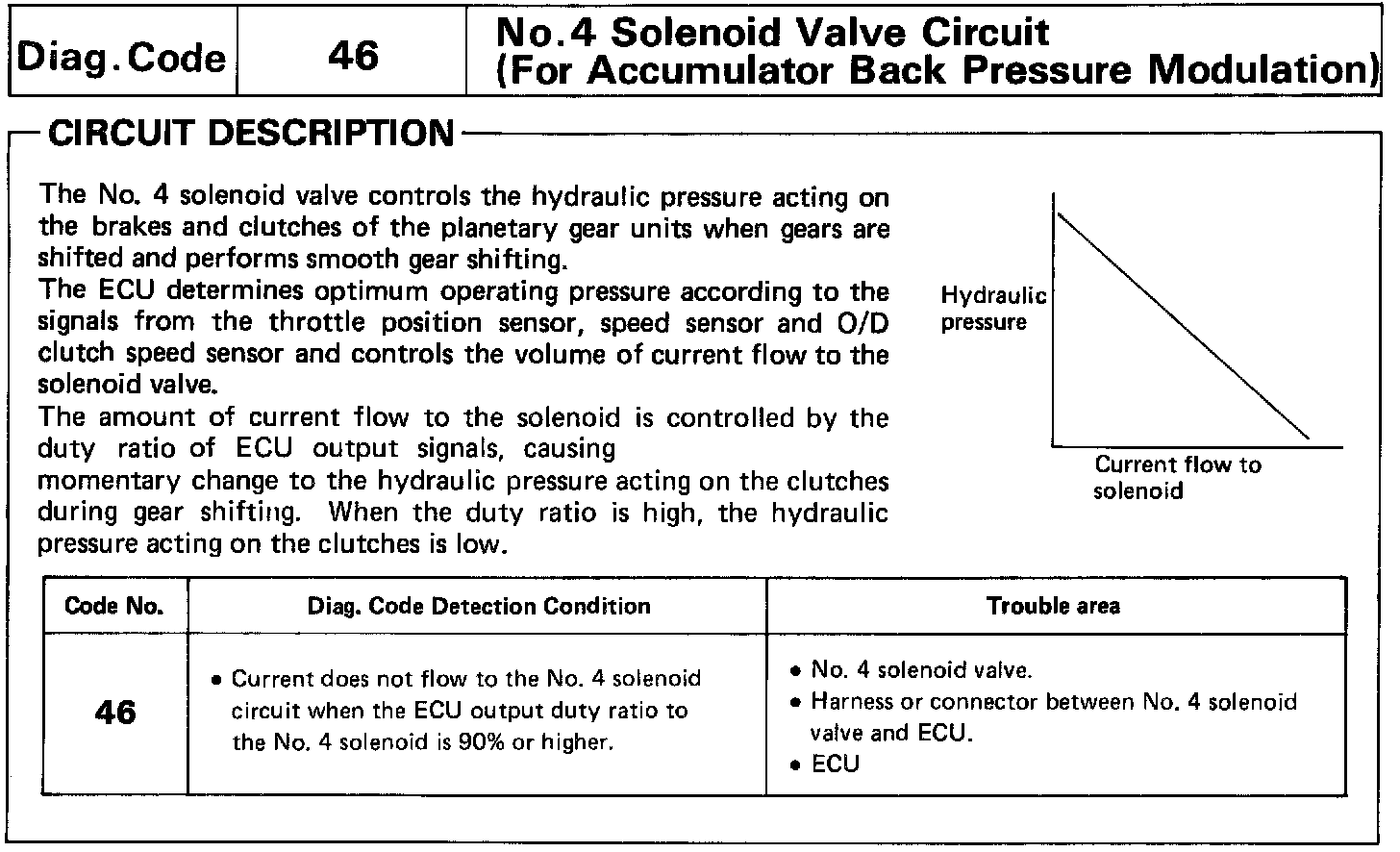

Diagnostic Code 46 - No.4 Solenoid Valve Circuit
(For Accumulator Back Pressure Modulation)









WIRING DIAGRAM





WIRING ROUTING

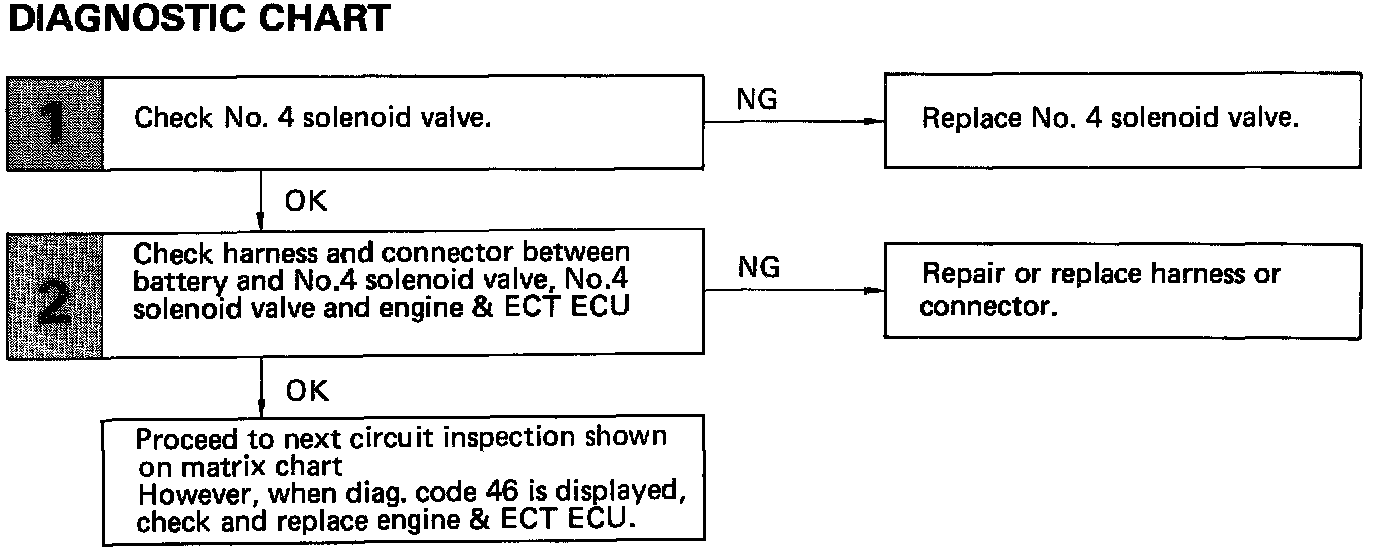

INSPECTION PROCEDURE
