DTC 42
>>
No. 1 Vehicle Speed Sensor Circuit
No. 1 Vehicle Speed Sensor Circuit
Diag.Code 42 No.1 Speed Sensor Circuit (Backup Sensor)
WIRING DIAGRAM
WIRING ROUTING

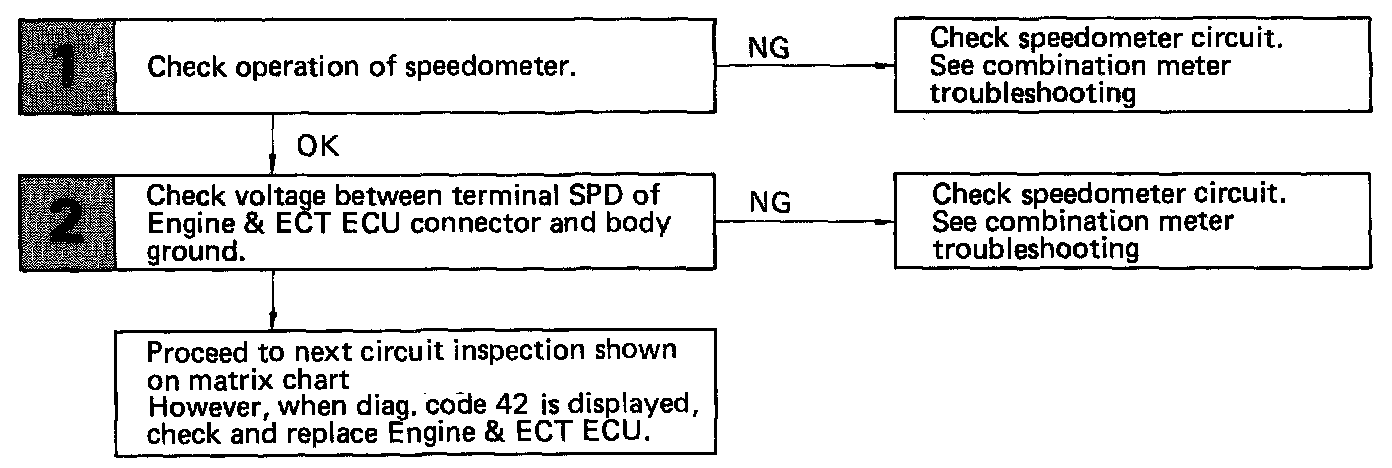

INSPECTION PROCEDURE
