DTC 12

DTC 12 - AMBIENT TEMPERATURE SENSOR CIRCUIT





CIRCUIT DESCRIPTION

This sensor detects the ambient temperature and sends the appropriate signals to the ECU.





DIAGNOSTIC CHART

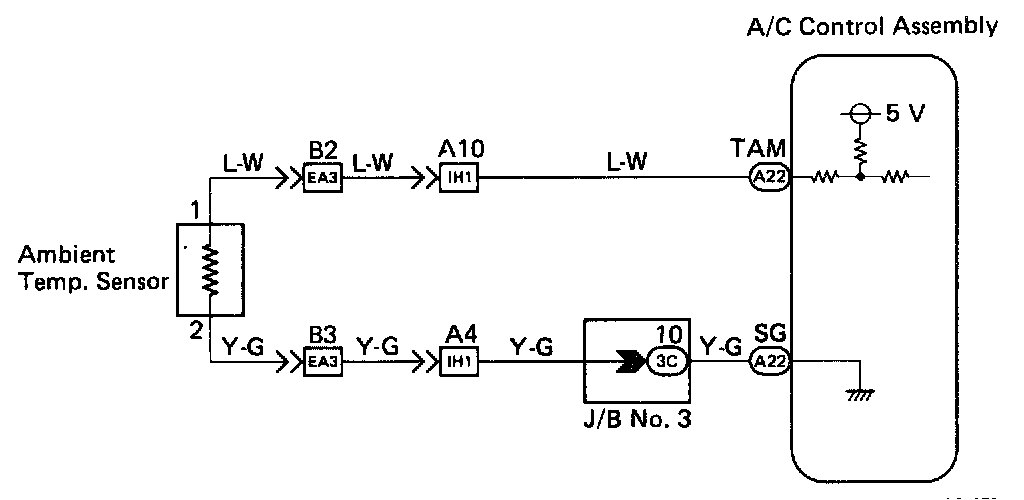

WIRING DIAGRAM





WIRING ROUTING

Step 1:

Step 2:

Step 3:

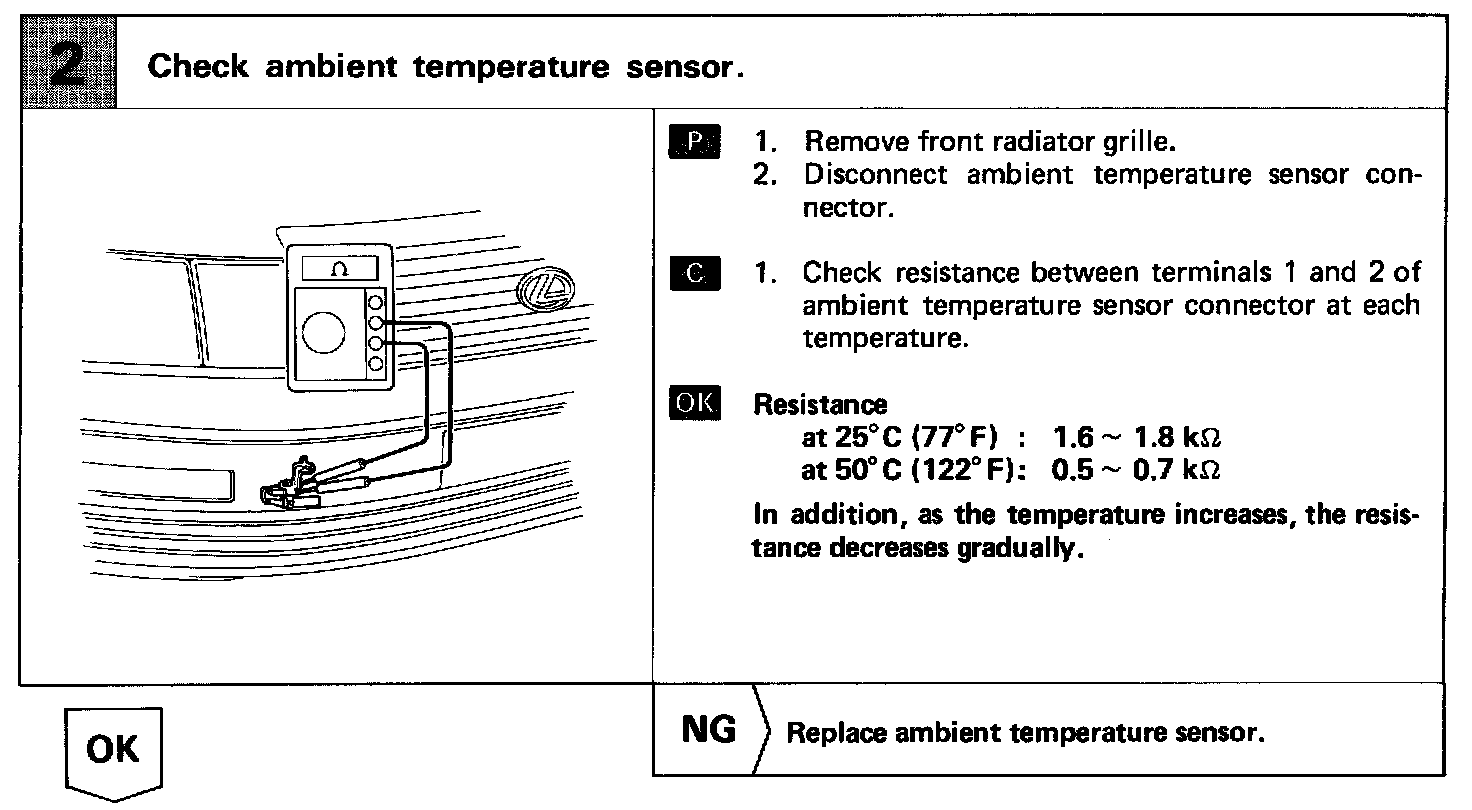

INSPECTION PROCEDURE
