DTC 11

DTC 11 - ROOM TEMPERATURE SENSOR CIRCUIT





CIRCUIT DESCRIPTION

This sensor detects the temperature inside the cooling unit and sends the appropriate signals to the air conditioner control assembly.





DIAGNOSTIC CHART

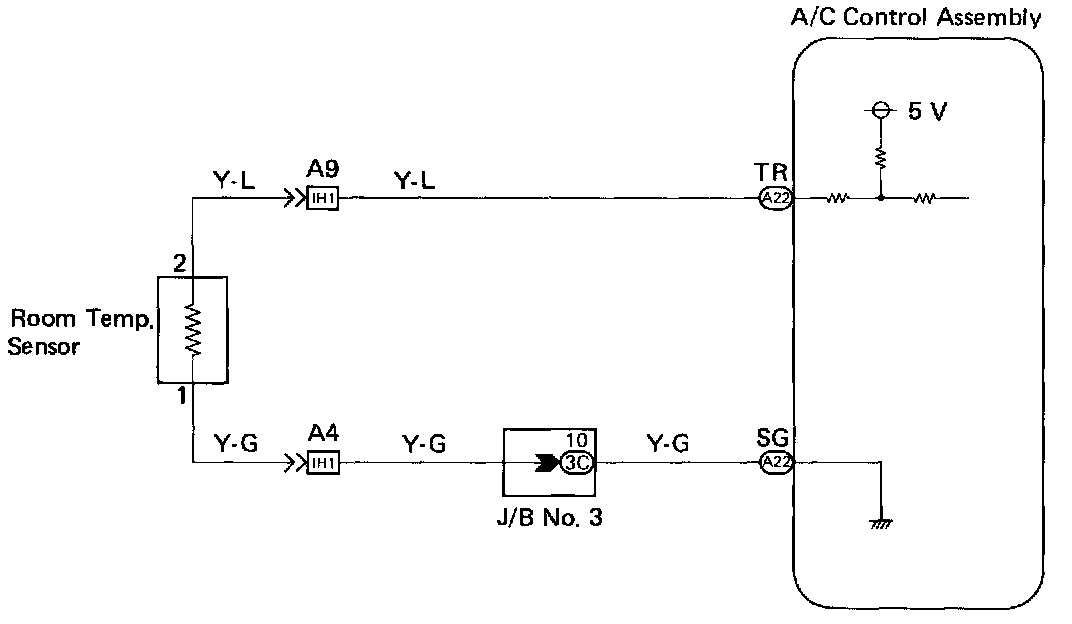

WIRING DIAGRAM

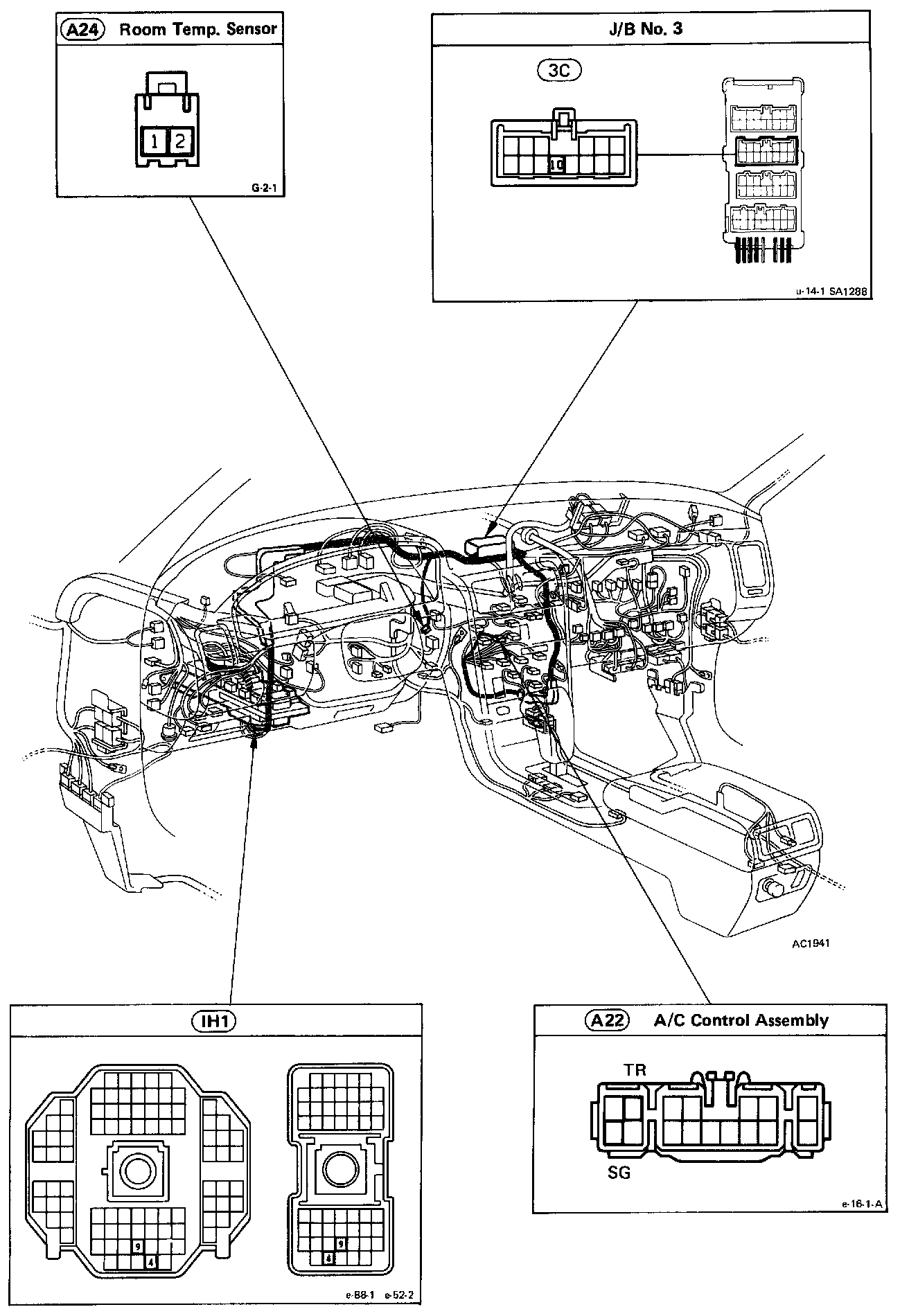

WIRING ROUTING

Step 1:

Step 2:

Step 3:

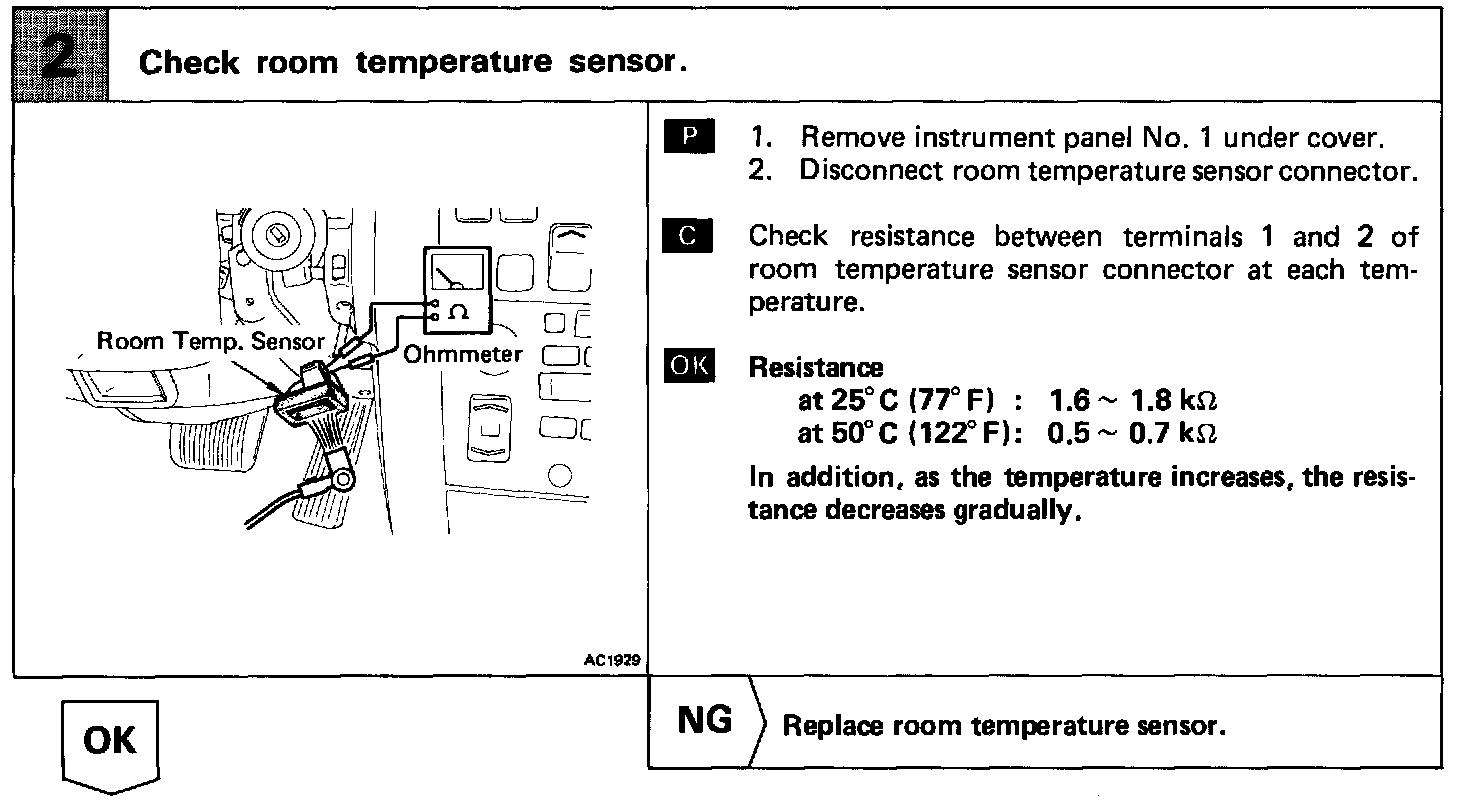

INSPECTION PROCEDURE
