DTC 56

Diag. Code 56 TRAC Pump Motor Lock Sensor Circuit

CIRCUIT DESCRIPTION
The TRAC pump motor lock sensor senses when the TRAC pump motor is locked and sends signals to the ECU, which prohibits TRAC control when it is detected.

DIAGNOSTIC CHART

Wiring Diagram:

Wiring Routing:

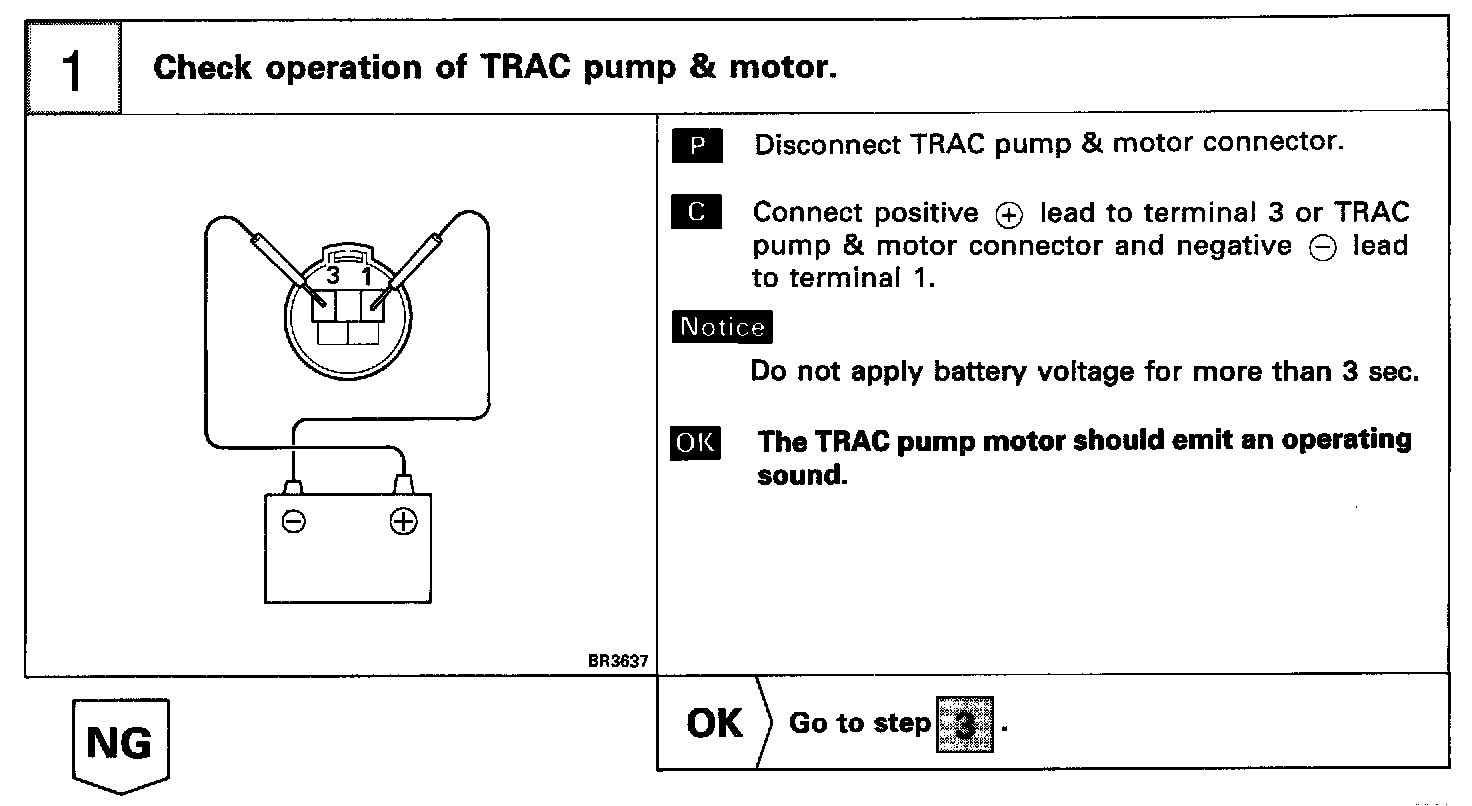

Step 1:

Step 2:

Step 3:

Step 4:

INSPECTION PROCEDURE
