DTC 13

Diag. Code 13, 14 A.B.S. Actuator Motor Relay Circuit





CIRCUIT DESCRIPTION
The A. B.S. actuator motor relay supplies power to the A.B.S. motor. If the accumulator pressure drops, the ECU switches motor relay ON and operates the A.B.S. motor. If the trouble occurs in the motor relay circuit, the ECU cuts off the current to the motor relay and prohibits the A.B.S. control (Fail safe function).

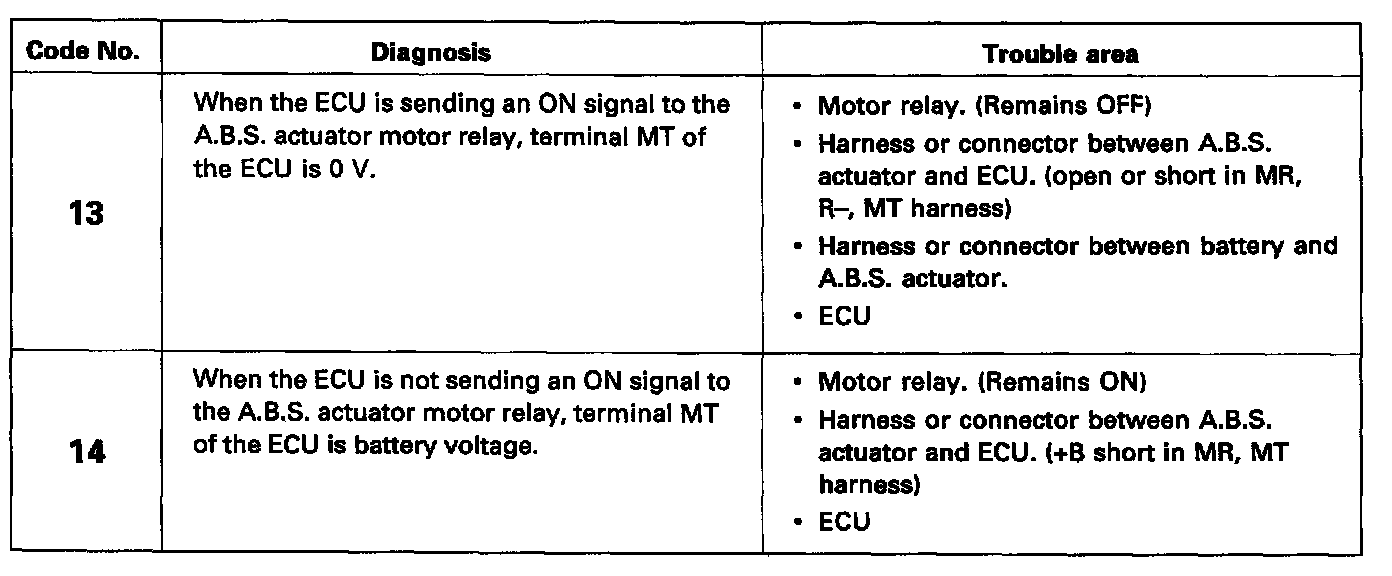

DIAGNOSTIC CHART

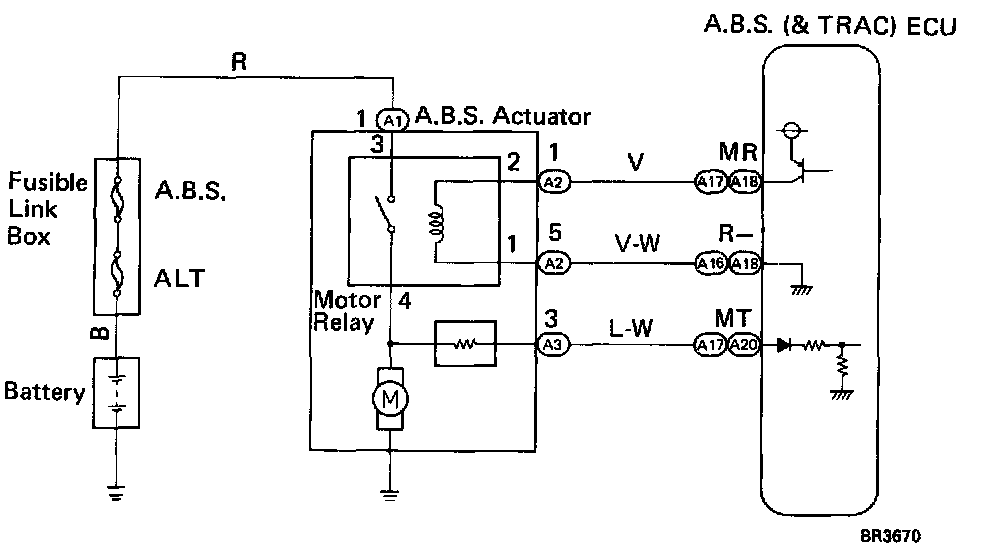

Wiring Diagram:

Wiring Routing:

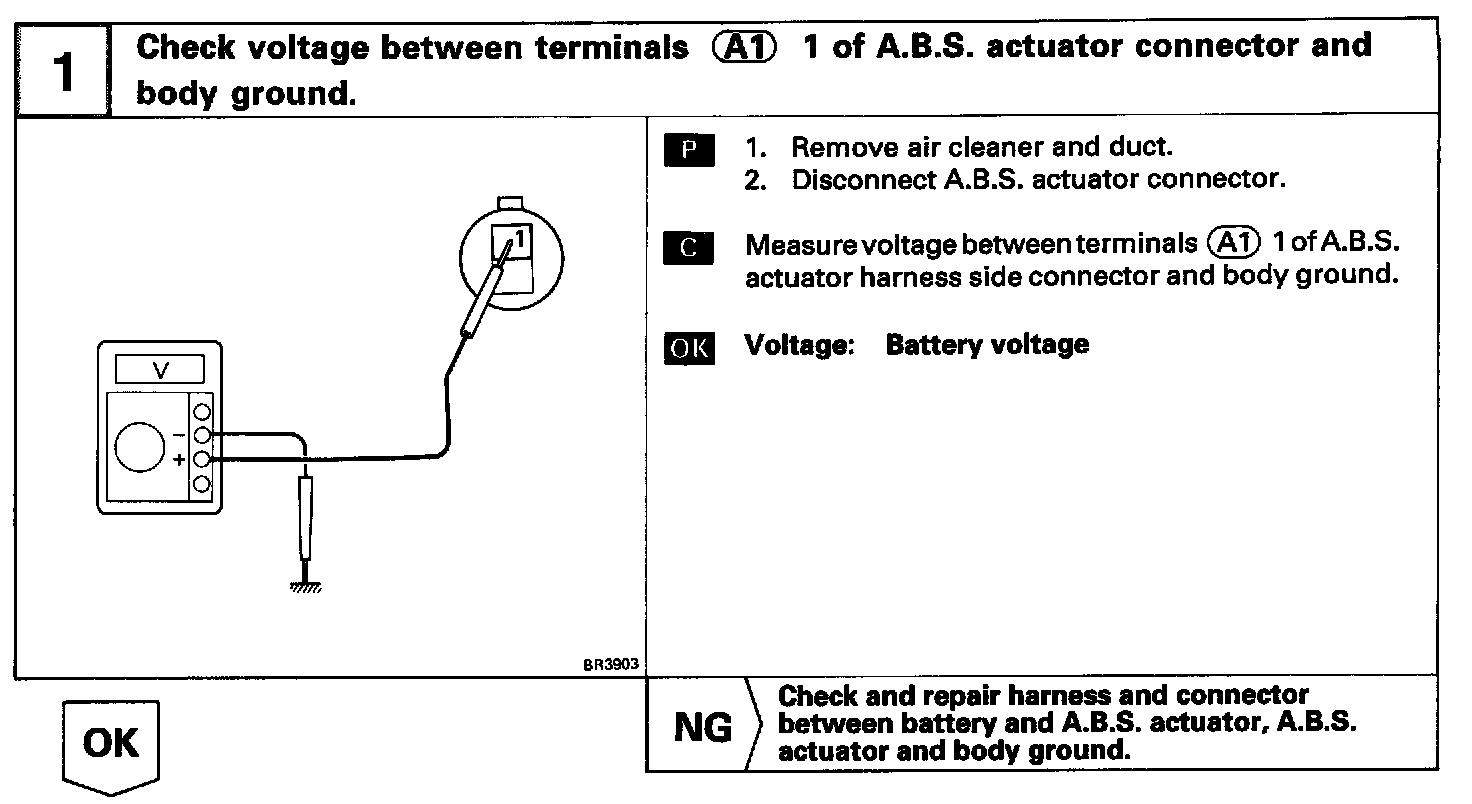

Step 1:

Step 2:

Step 3:

Step 4:

INSPECTION PROCEDURE
