DTC 12

Diag. Code 11, 12 A.B.S. Actuator Solenoid Relay Circuit

CIRCUIT DESCRIPTION
This relay supplies power to each A.B.S. actuator solenoid. After the ignition switch is turned on, if the initial check is OK, the relay goes on. If the trouble occurs in the solenoid relay circuit, the ECU cuts off current to the solenoid relay and prohibits the A.B.S. control (Fail safe function).

DIAGNOSTIC CHART

Wiring Diagram:

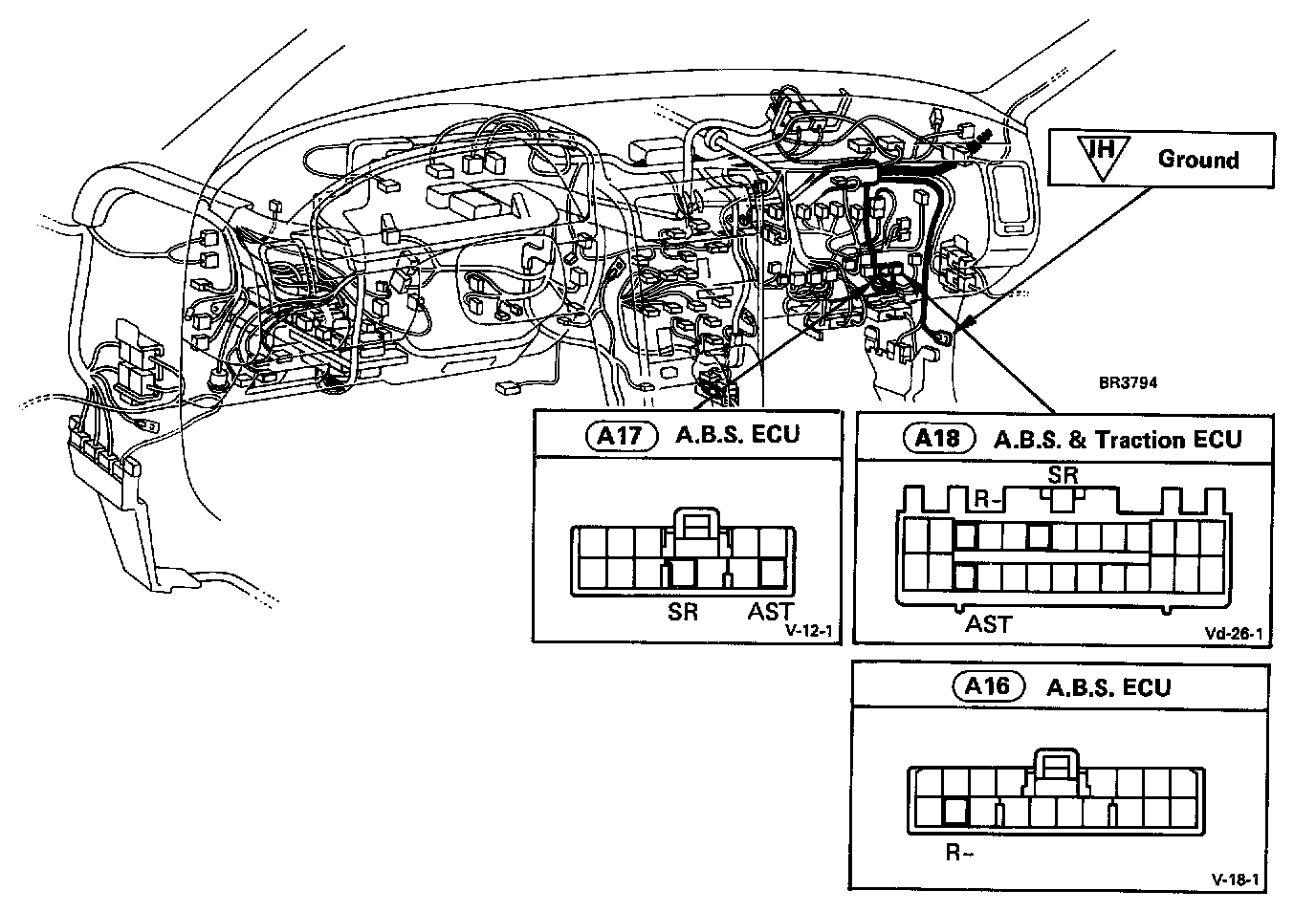

Wiring Routing:

Step 1:

Step 2:

Step 3:

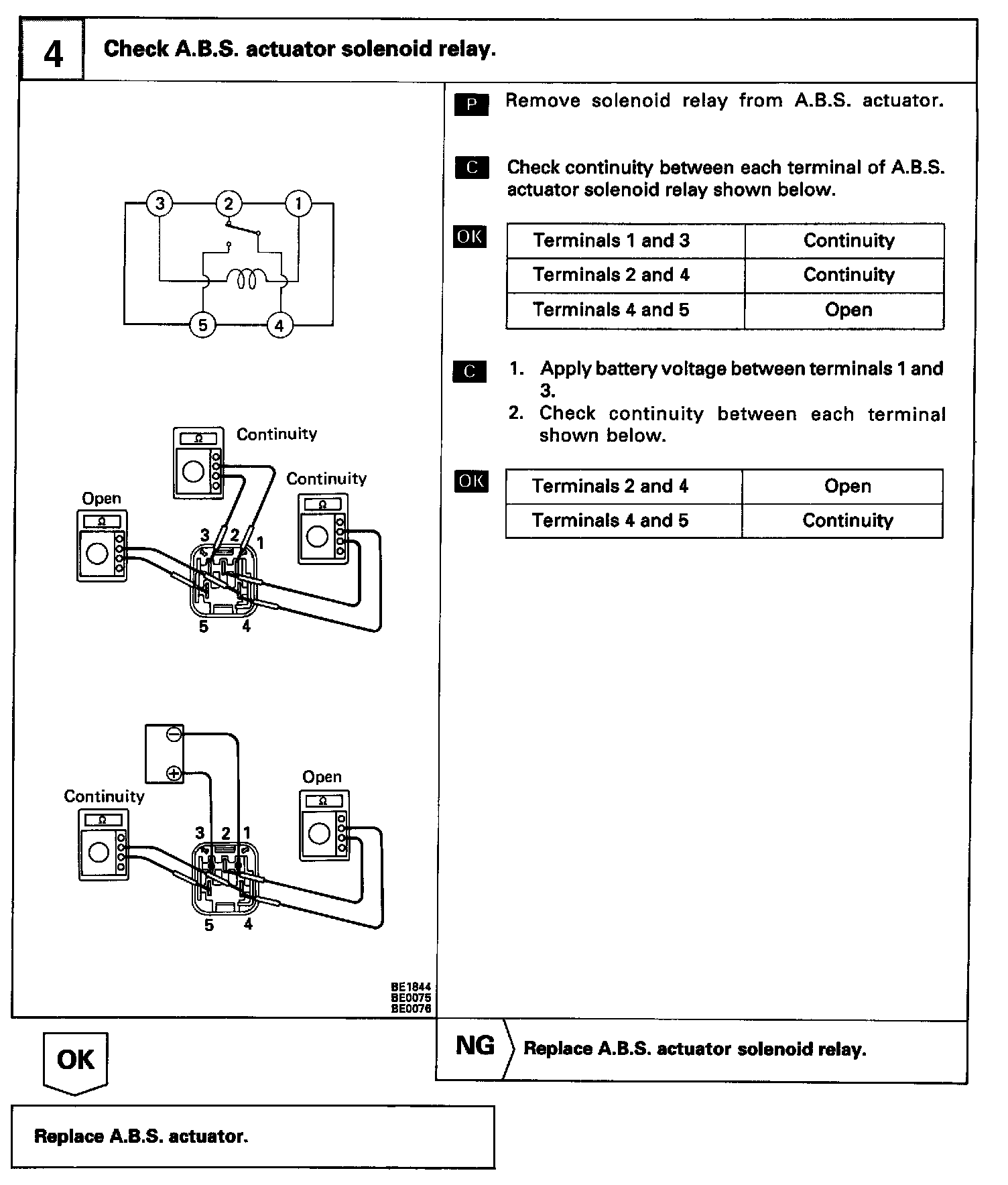

Step 4:

INSPECTION PROCEDURE
