Door Trim Support

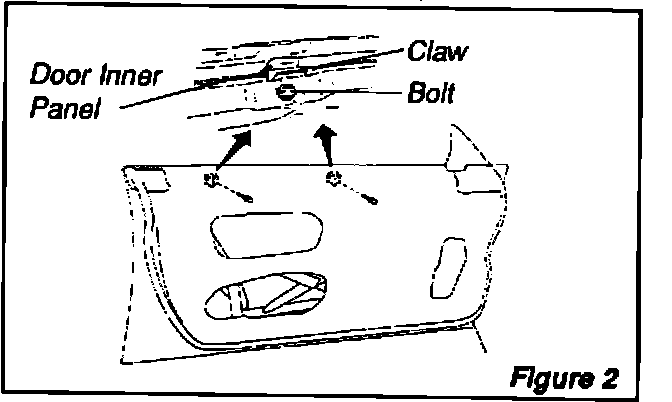

Make sure the Door Trim Supports (2) at the top of the door inner panel are properly adjusted so they brush the inside door glass. If adjustment is needed, roll door glass completely down, loosen bolt, press on the claw portion of Door Trim Support (see Figure 2), and tighten the bolt.
