M/T Torque Data

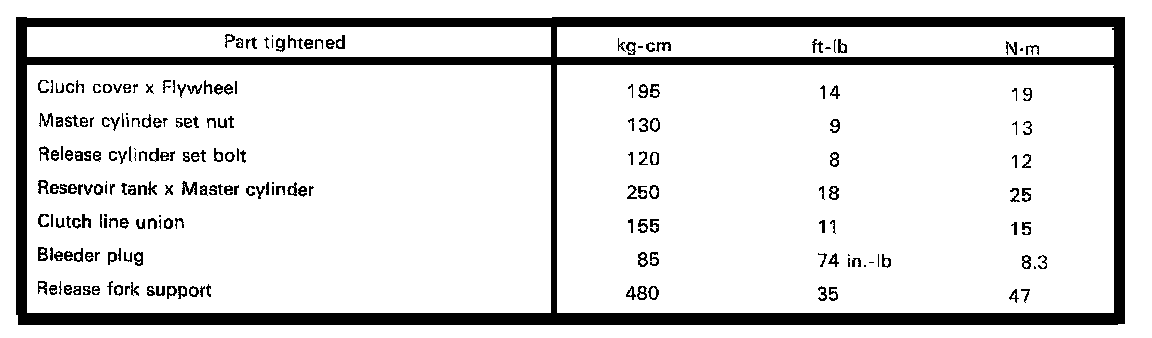

E52 5-spd M/T, Clutch Torque:

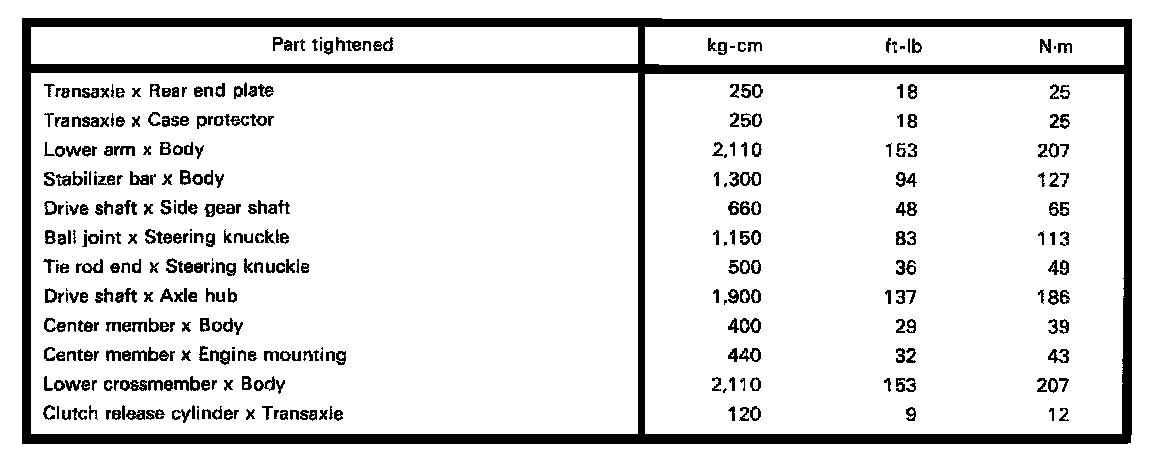

E52 5-spd M/T, Transaxle Torque:

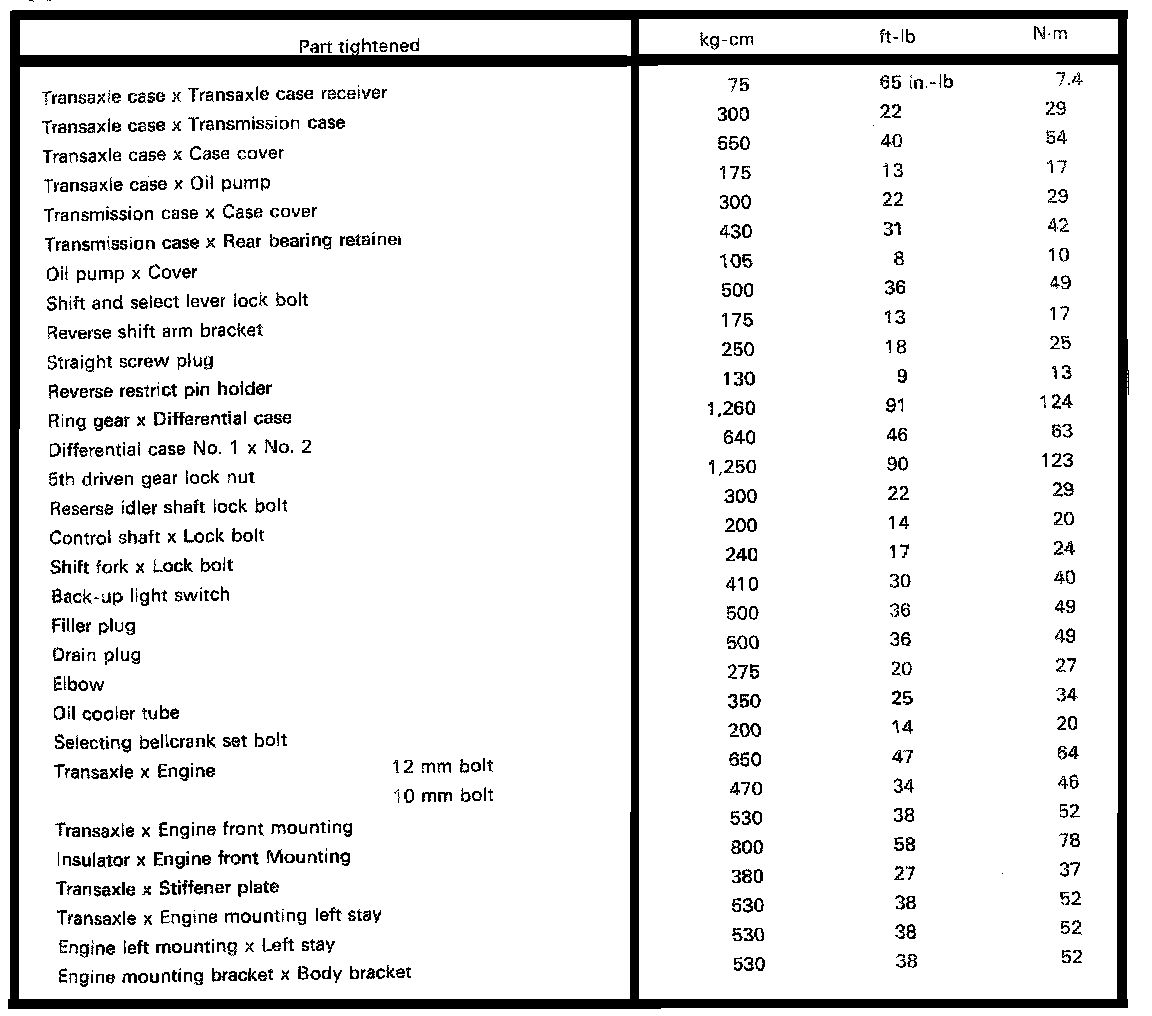

E52 5-spd M/T, Transaxle Torque Cont.:
