Clutch Slave Cylinder: Service and Repair

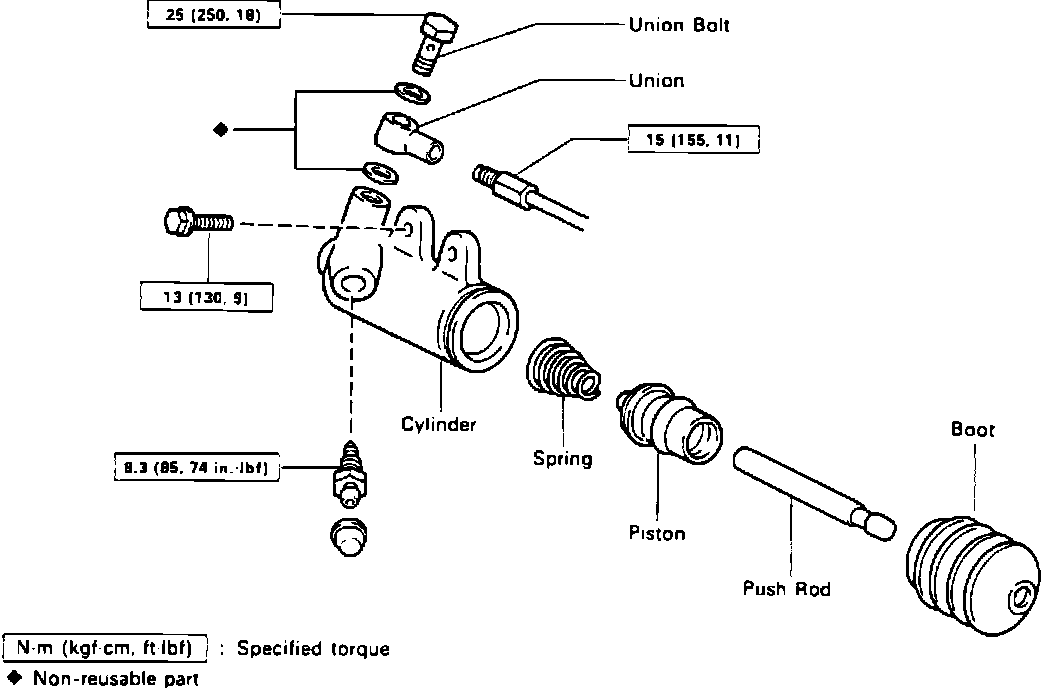

Fig. 4 Exploded View Of Clutch Release Cylinder:

Fig. 5 Exploded View Of Clutch Release Cylinder:

1. On ES 250 models, use clutch line removal tool 09751-36011 or equivalent, remove clutch line tube, Fig. 4.
2. On SC 300 models, use clutch line removal tool 09023-00100 or equivalent, remove clutch line tube, Fig. 5.
3. On all models, remove two bolts and pull out cylinder.
4. Reverse procedure to install. Bleed clutch system as previously described and check for leaks.
