Clutch Master Cylinder: Service and Repair

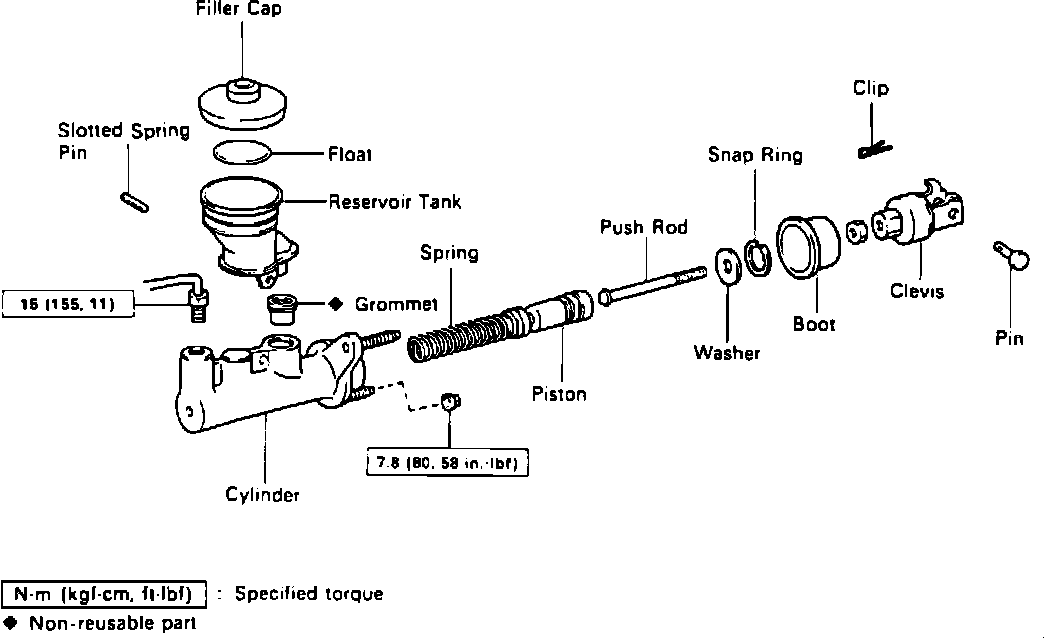

Fig. 2 Exploded View Of Clutch Master Cylinder:

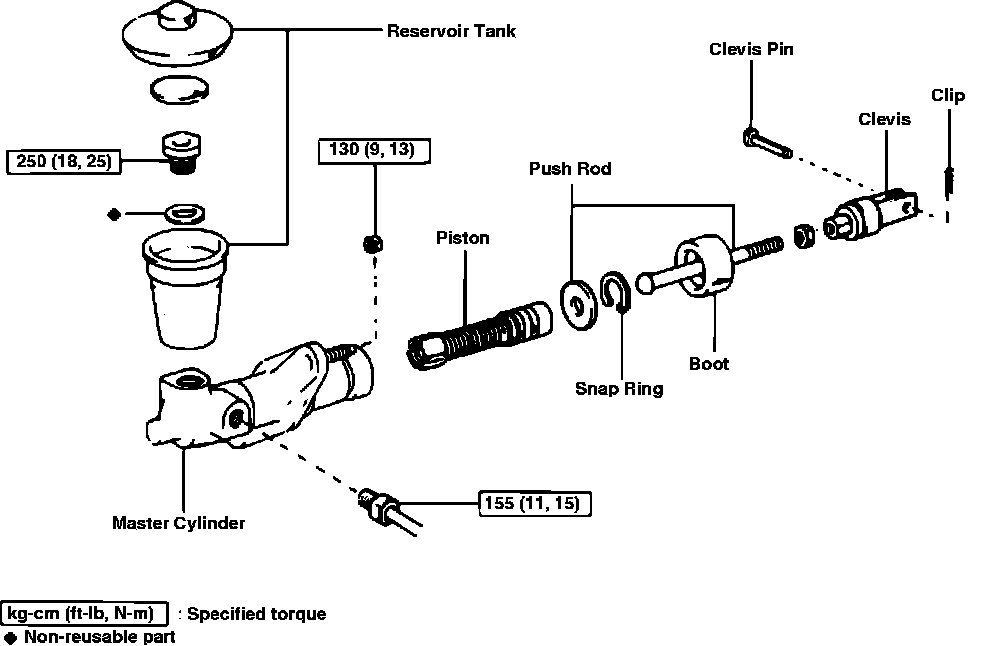

Fig. 3 Exploded View Of Clutch Master Cylinder:

1. Draw out fluid with syringe.
2. Disconnect clutch line tube, Figs. 2 and 3.
3. On ES 250 models, remove instrument lower finish panel.
4. On all models, remove clevis pin and clip with spring washer.
5. Remove mounting nuts and pull out master cylinder.
6. Reverse procedure to install, noting the following:
a. Bleed clutch system as previously described.
b. Check for leaks.
c. Check and adjust clutch pedal as previously described.
