Upper Valve Body

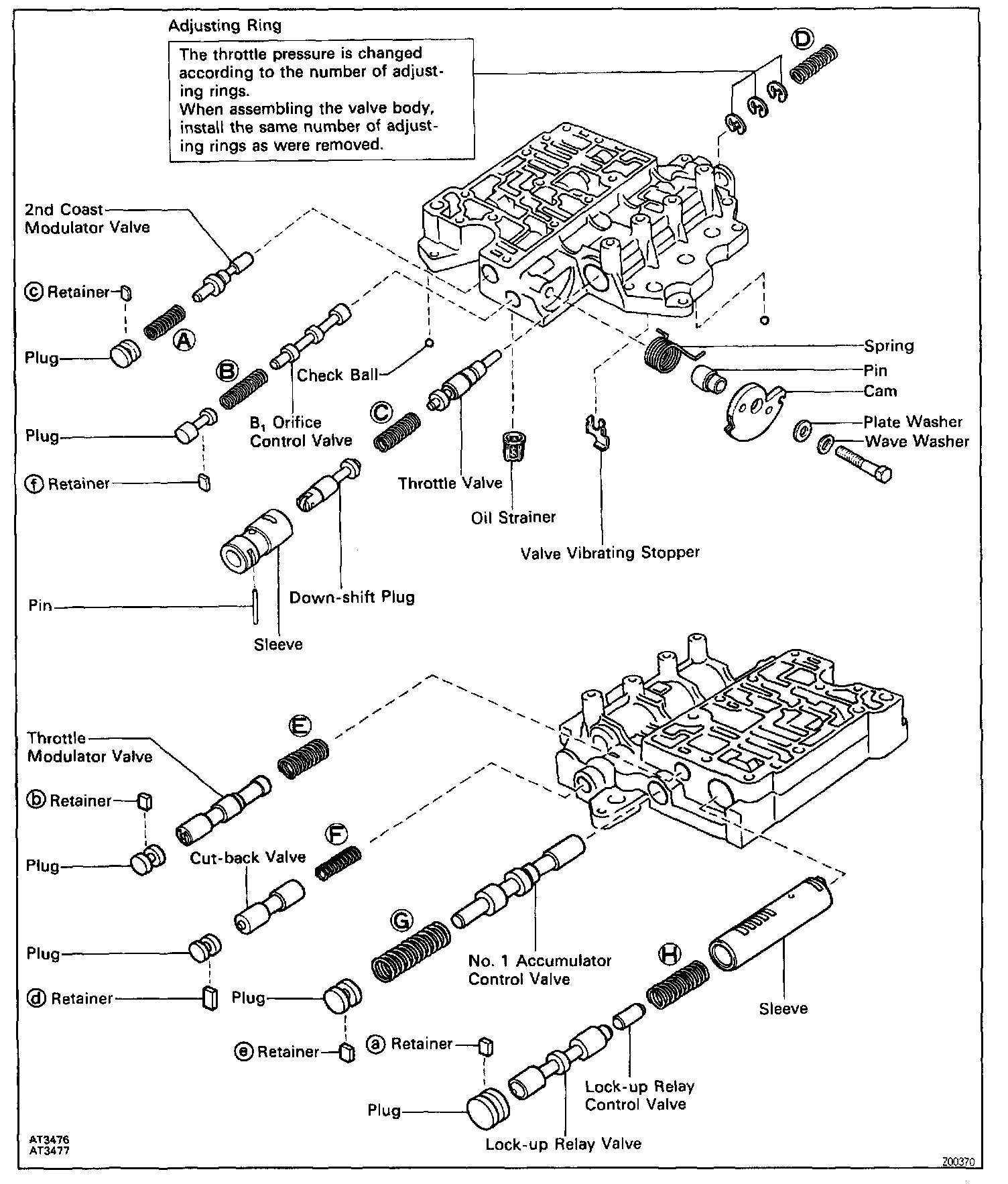

COMPONENTS




VALVE BODY SPRINGS SPECIFICATIONS


HINT: During reassembly please refer to the spring specifications above to help discriminate the different springs.

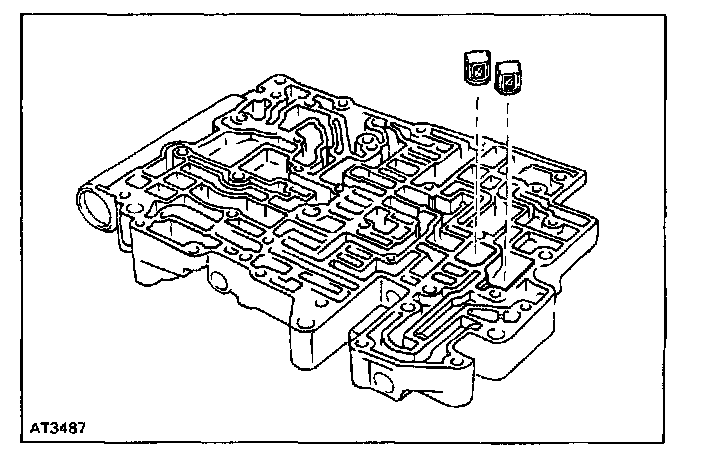

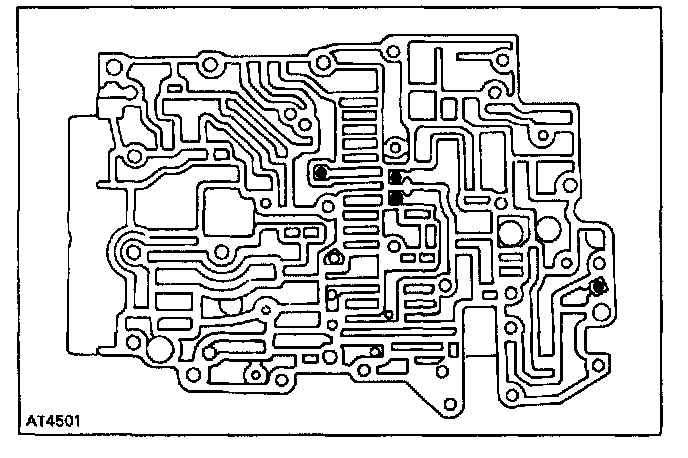

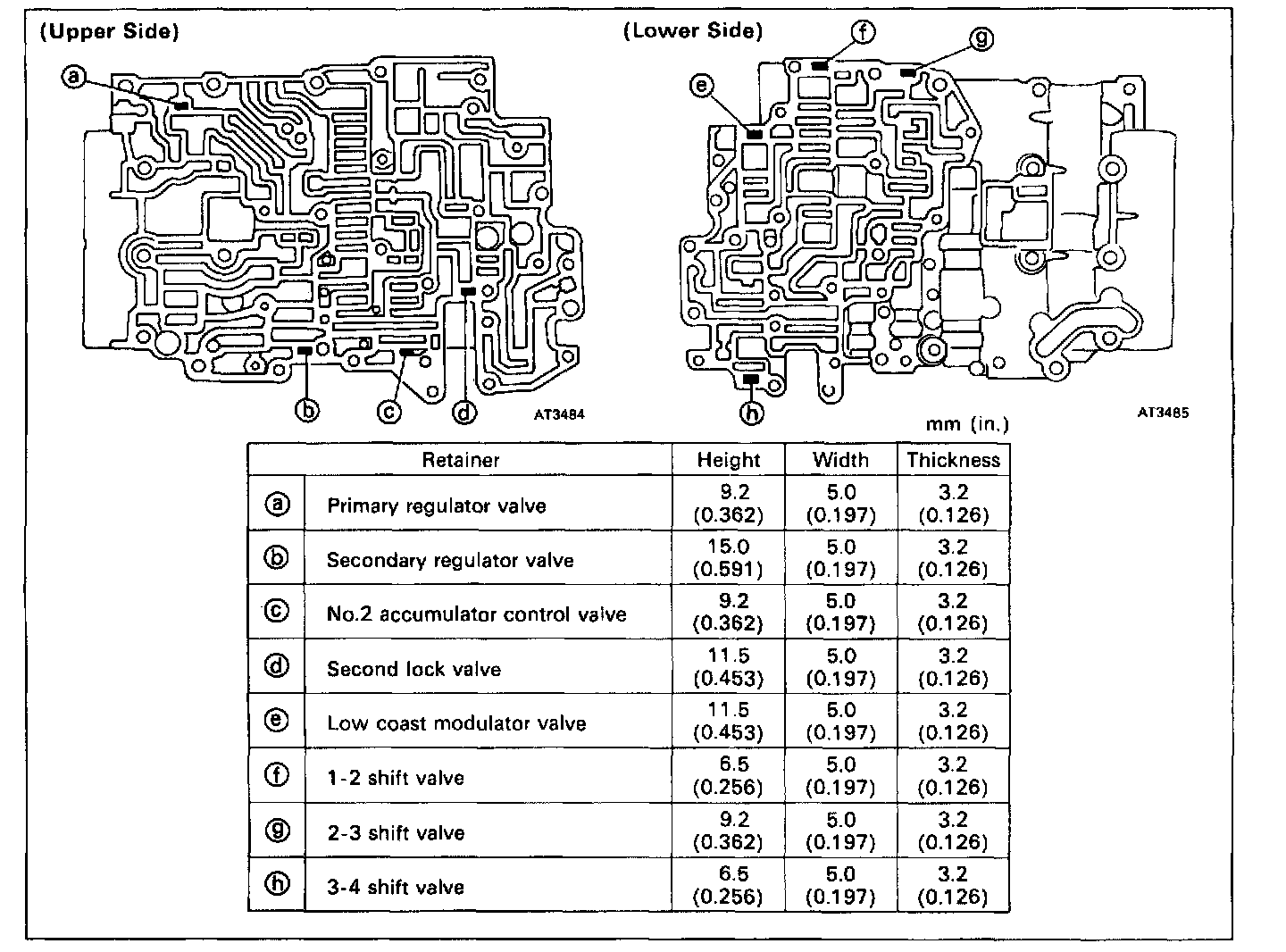

RETAINERS, PIN, STOPPER, CHECK BALL AND STRAINER LOCATION




1. RETAINER




2. CHECK BALL




3. STRAINER
