Lower Valve Body

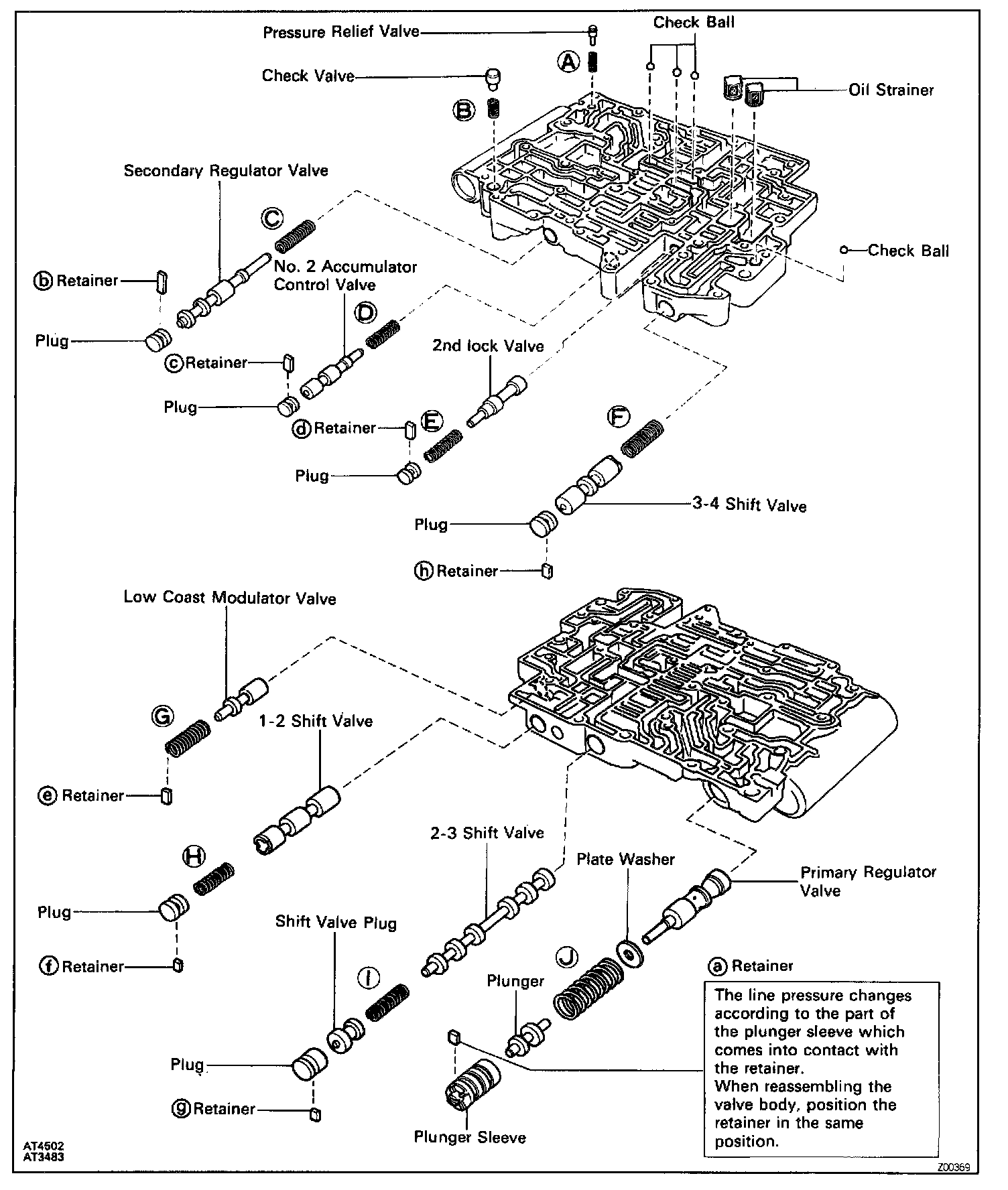

COMPONENTS

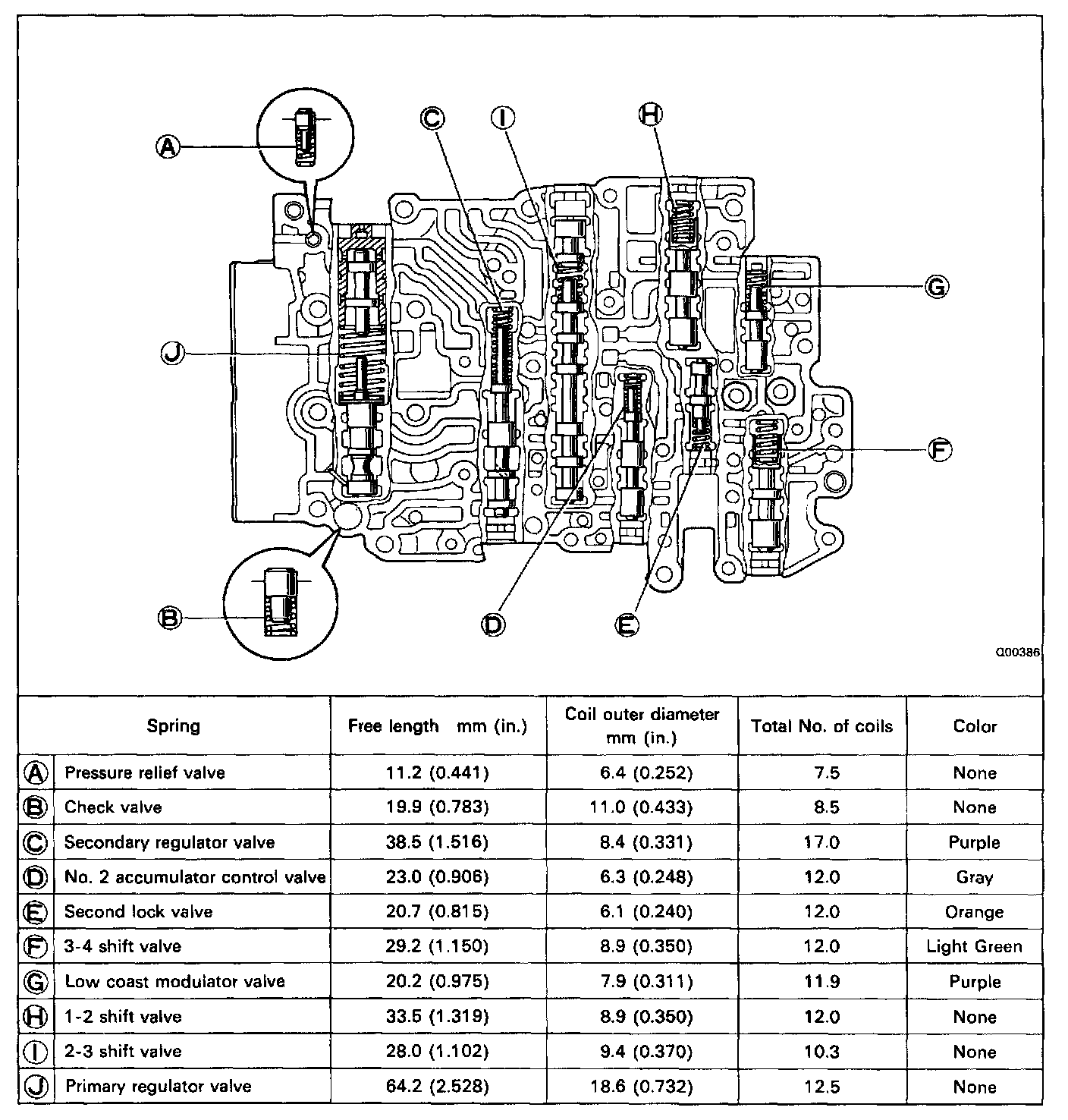

VALVE BODY SPRINGS SPECIFICATIONS


HINT: During reassembly please refer to the spring specifications above to help discriminate the different springs.

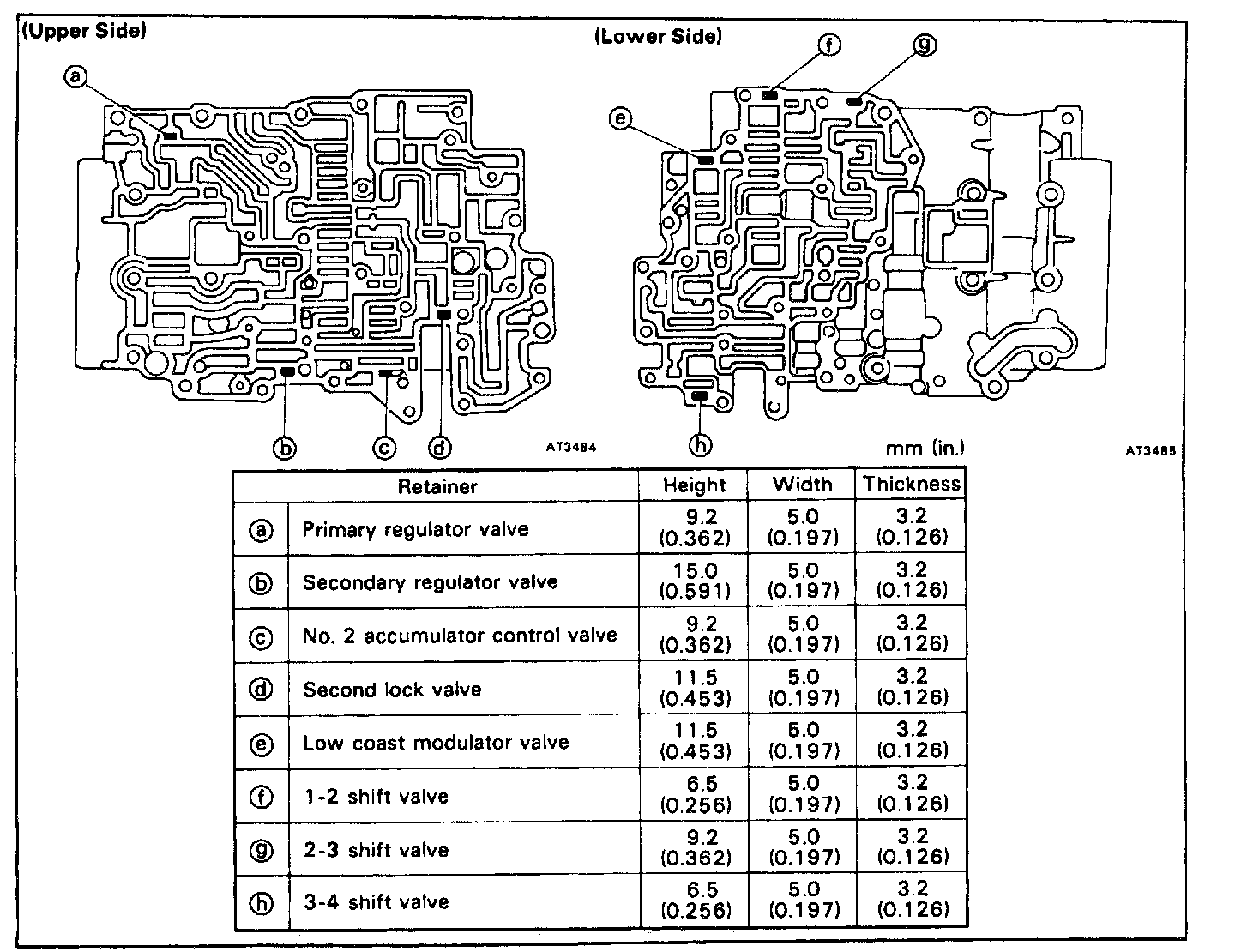

RETAINERS, CHECK BALLS AND STRAINERS LOCATION




1. RETAINER

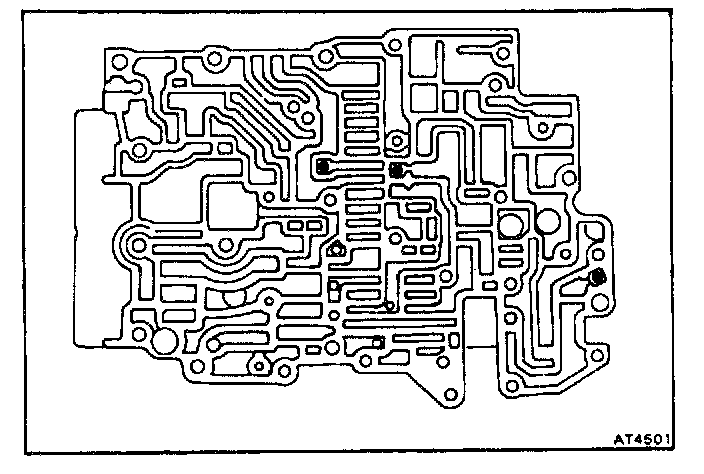

2. CHECK BALL




3. STRAINER
