Wheel Stud / Lug Nut: Service and Repair

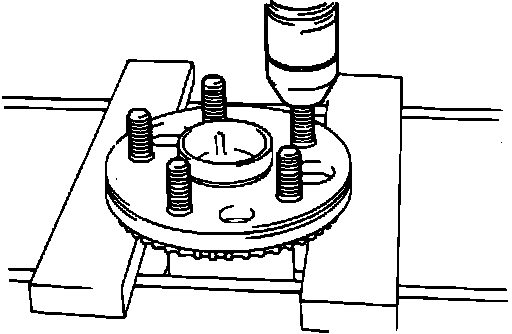

Fig. 48 Removing Lug Bolt:

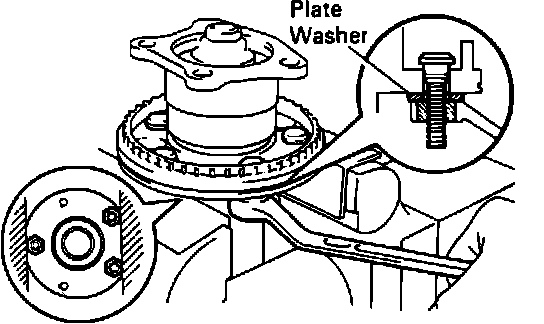

Fig. 49 Installing Lug Bolt:

Removal
1. Remove axle hub as previously described under AXLE CARRIER.
2. Using a press, remove lug bolt, Fig. 48.

Installation
1. Using a plate washer and nut, install new hub bolt, Fig. 49.
2. Install axle hub as previously described under AXLE CARRIER.
