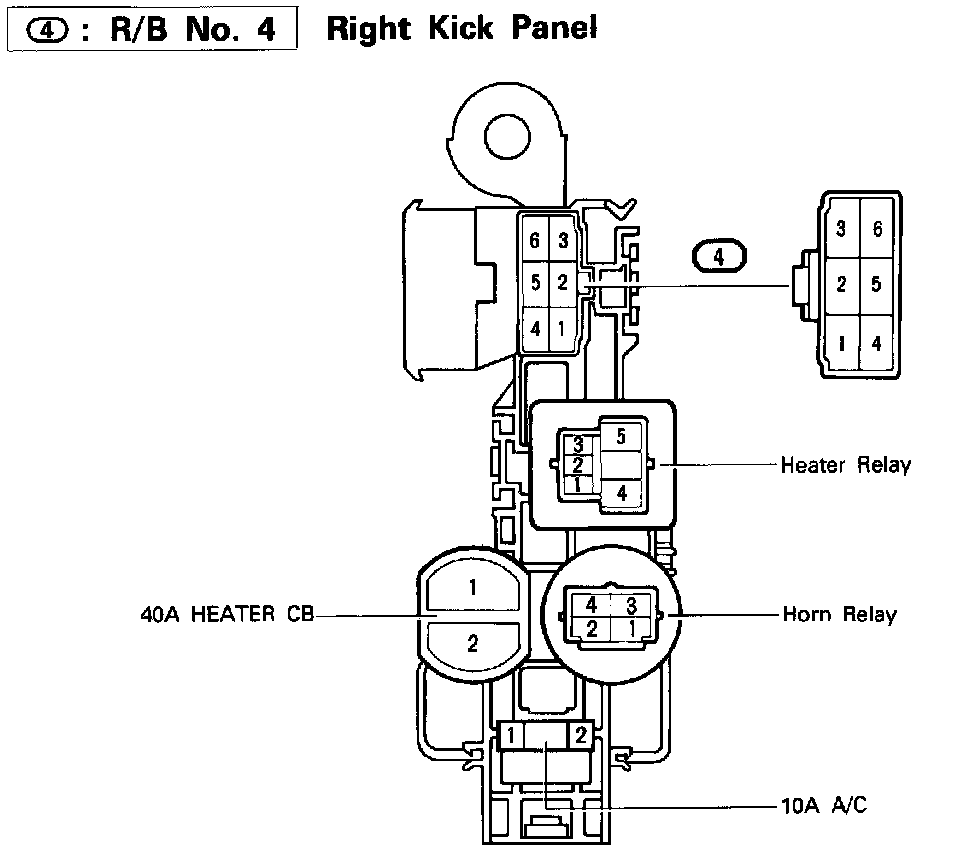

Relay Block No. 4

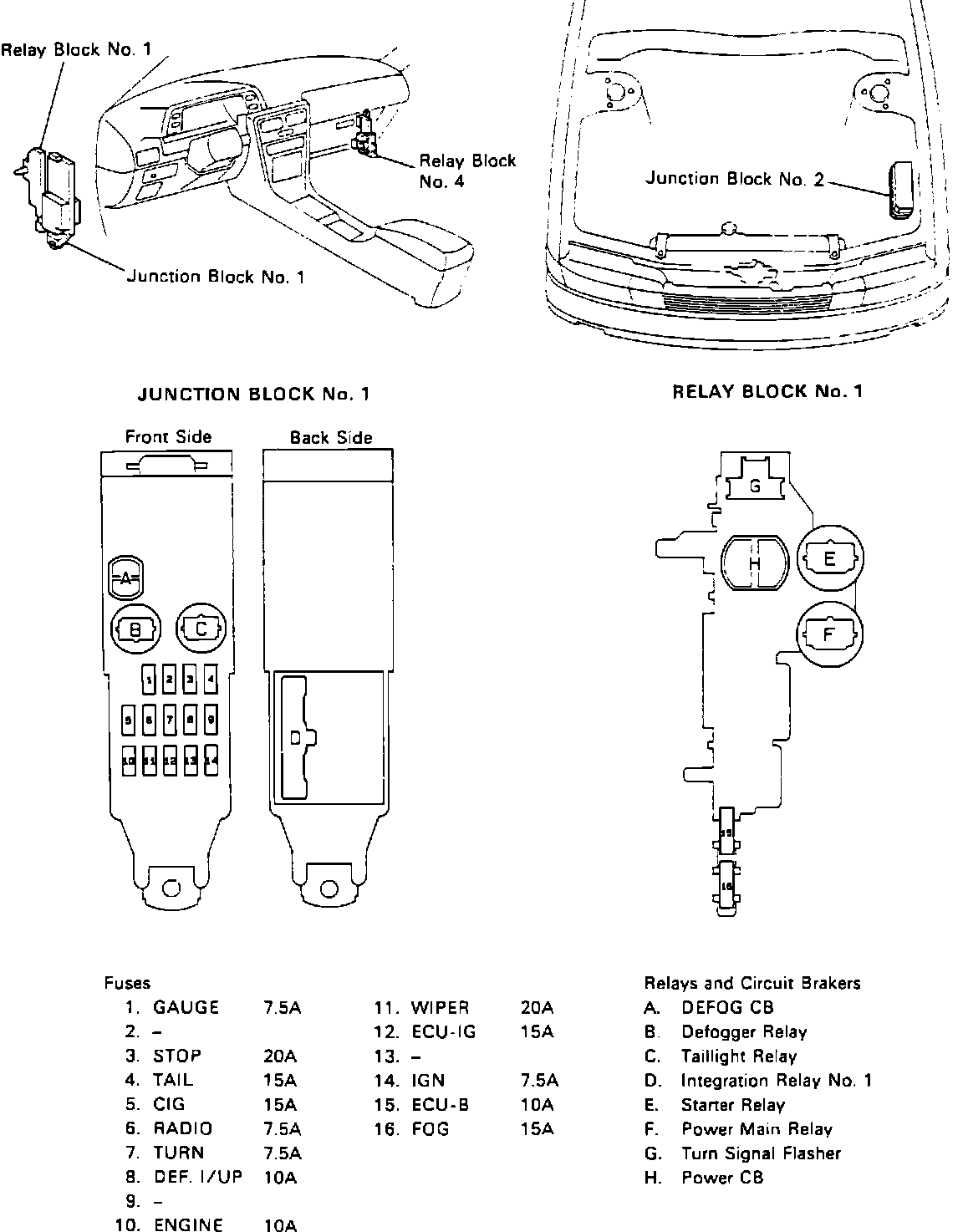

Relay & Junction Block Component Locations:







Behind RH Side Of I/P, Above Kick Panel
