Ground Point Diagrams

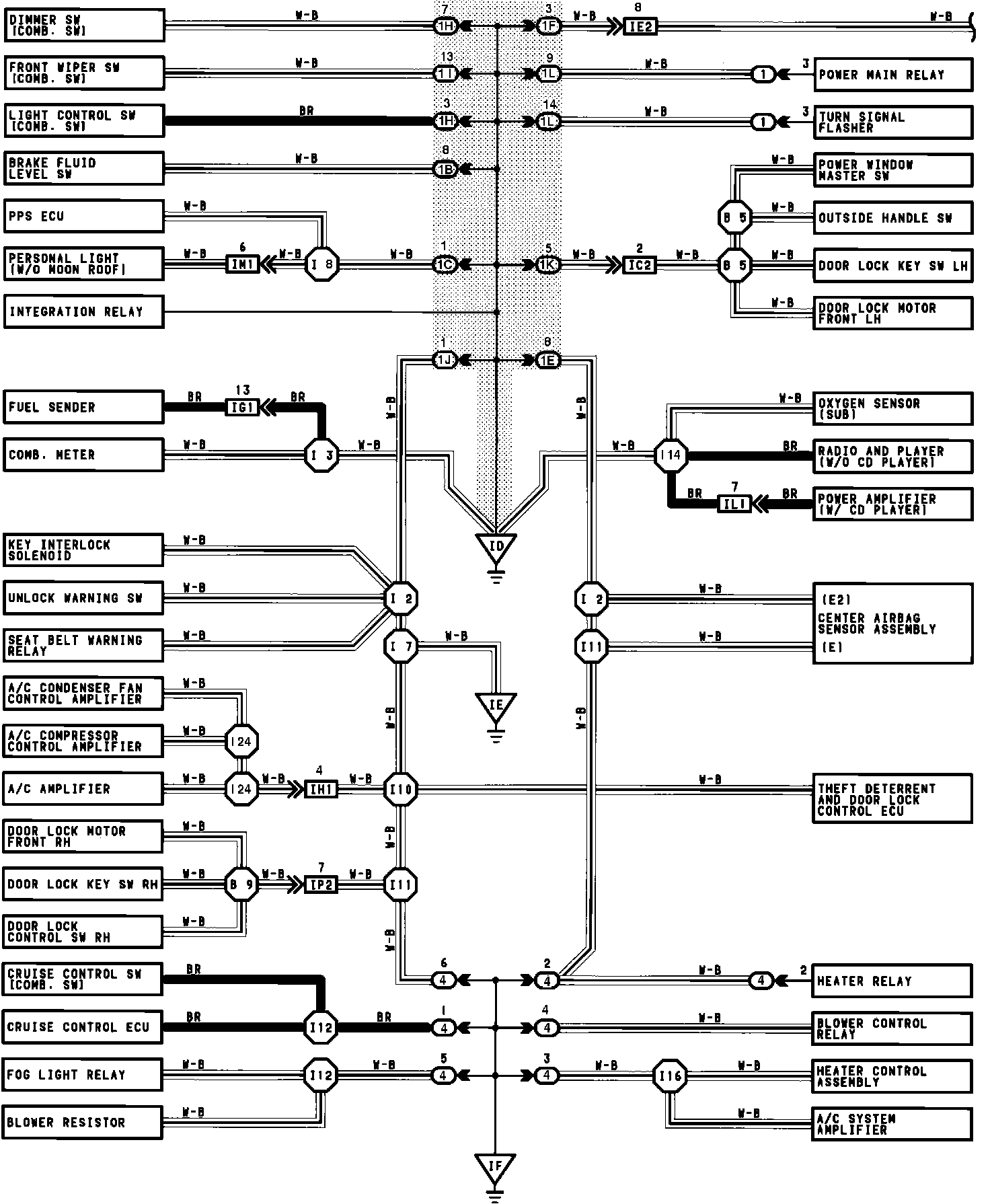

Ground Points (ID, IE and IF):

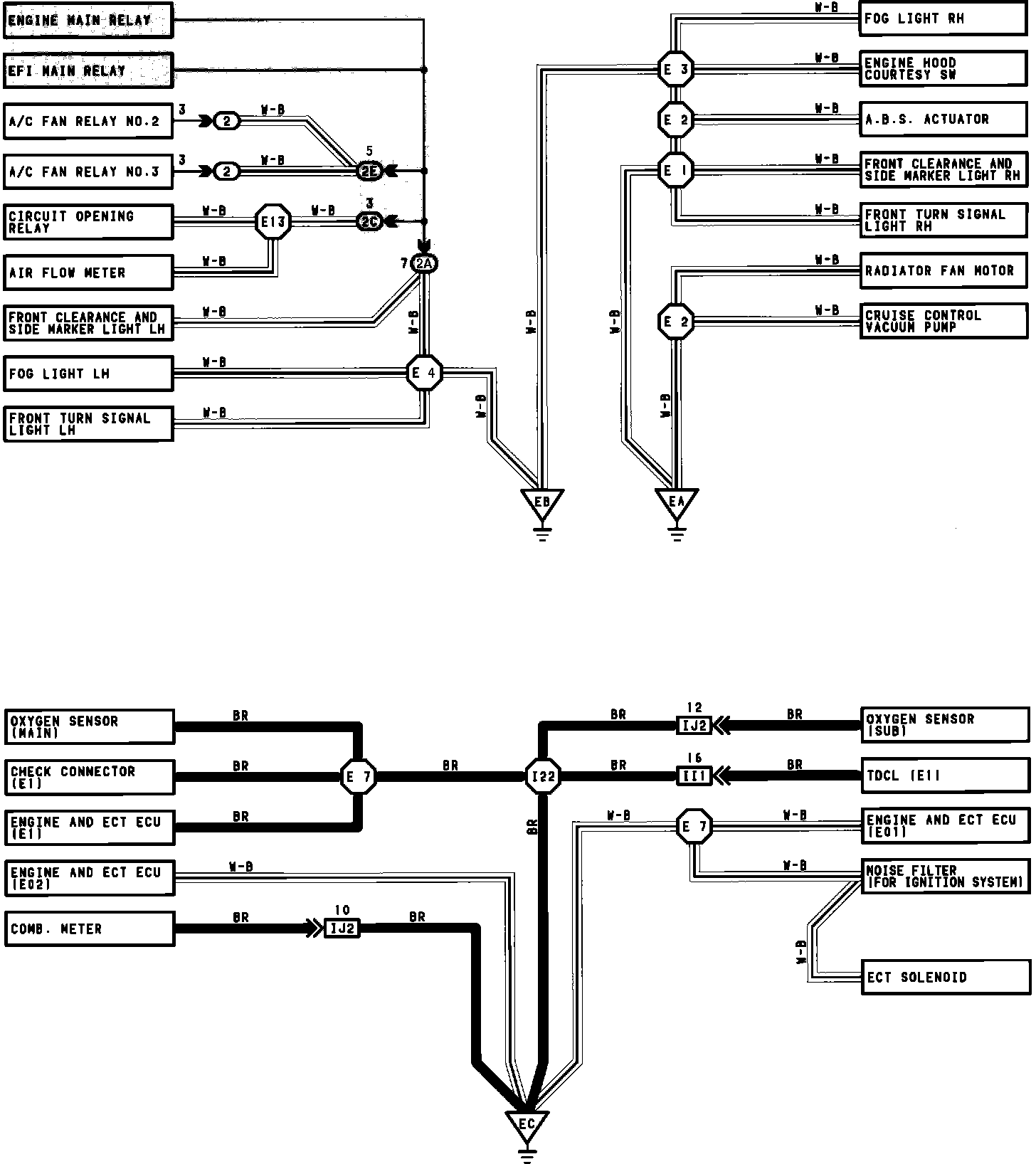

Ground Points (EB, EA and EC):

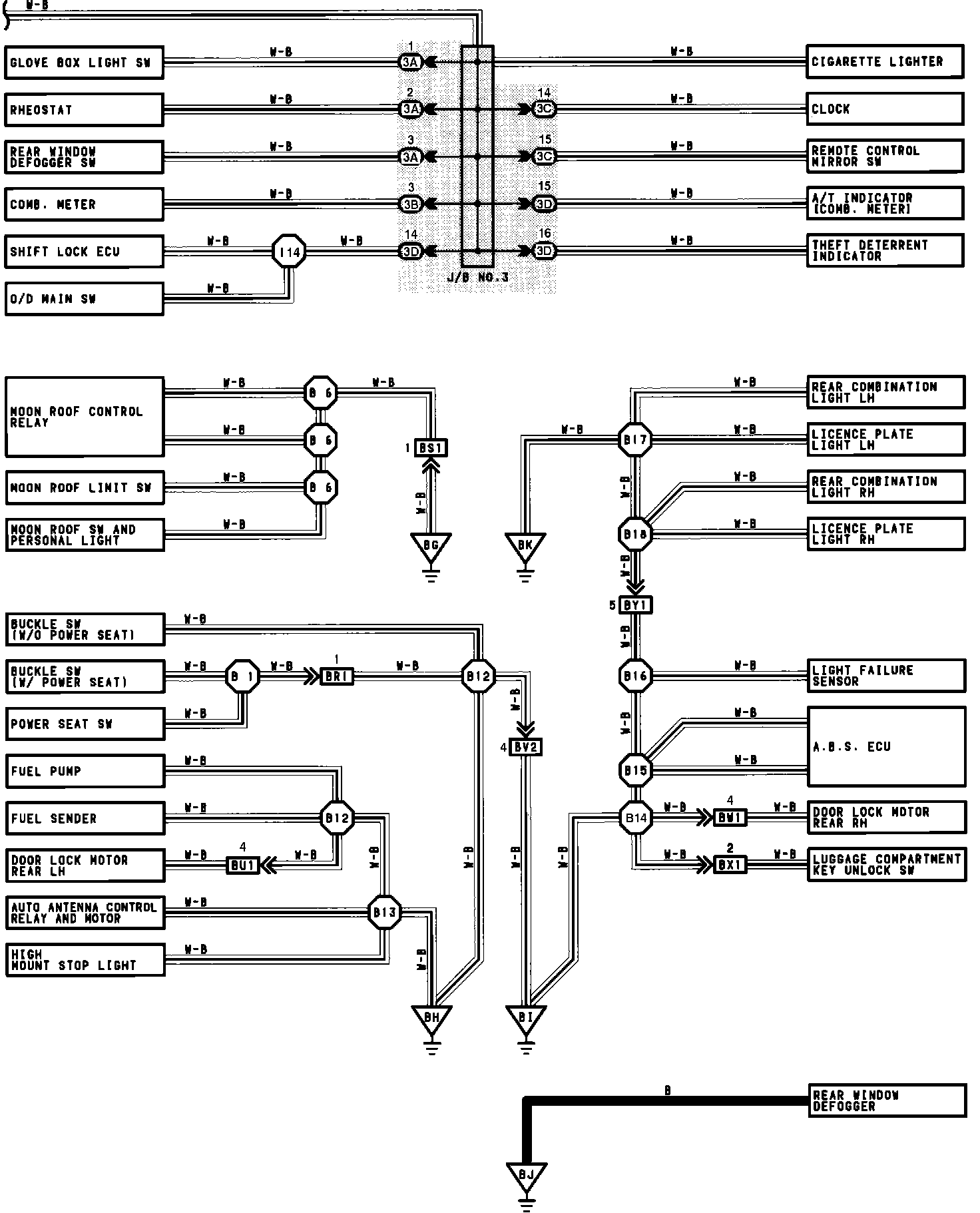

Ground Points (BG, BK, BH, BI and BJ):
