Neutral Safety Switch: Service and Repair

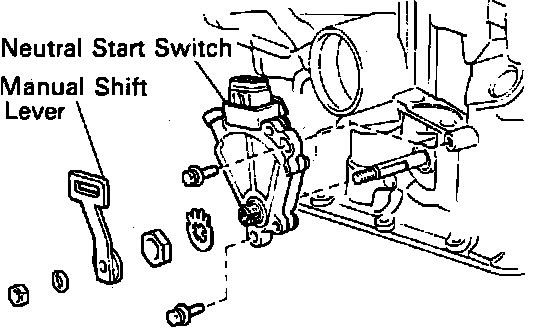

Fig. 18 Neutral Switch:






1. Remove manual/control shift lever.
2. Pry off lock washer and remove switch attaching nut, Fig. 18.
3. Remove two switch attaching bolts, then the switch.
4. Reverse procedure to install.
